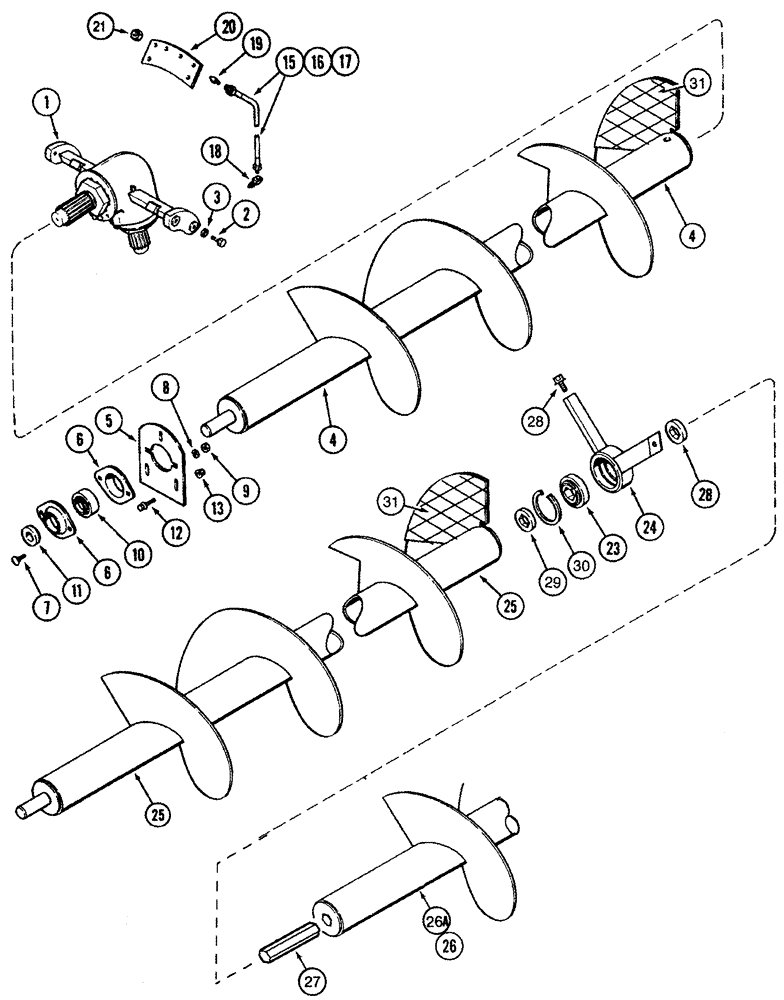

Запчасти Case IH 2366 (09E-11[01]) - UNLOADER - AUGER, UPPER, BSN JJC0254999 (17) - GRAIN TANK & UNLOADER

1

1347351C1

HOUSING

1шт.

1347351C2R

REMAN-GEARBOX

2366 BSN JJC0254999 (1/98-8/04), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

183927A1

AUGER

One Piece, 136 in.

1шт.

5

182838C1

SUPPORT

1шт.

6

50591

FLANGE,52mm

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

1шт.

11

564853R11

COLLAR

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

937779R91

HOSE,1/8" ID x 22" L

2шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 tpr x 13/16

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

20

1347449C1

SUPPORT

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

1шт.

24

1317859C1

SUPPORT

1шт.

25

199018A1

AUGER

Rear Split, 172 in., Serial Range: -JJC0252949

1шт.

25

199018A2

AUGER

Rear Split, 172 in., Start Serial: JJC0252950

1шт.

25

199023A1

AUGER

Rear Split, 208 in., Serial Range: -JJC0252949

1шт.

25

199023A2

AUGER

Rear Split, 208 in., Start Serial: JJC0252950

1шт.

26

198987A1

AUGER

Front Split, 172/208 in., Serial Range: -JJC0252949

1шт.

26

198987A2

AUGER

Front Split, 172/208 in., Start Serial: JJC0252950

1шт.

26a

282176A2

AUGER

Front Split, 208 in.

1шт.

Extended Wear Rice Combines

1шт.

27

220040A2

SHAFT

152 mm (6 in.)

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

1277949C1

SPACER

1/4 x 1; 8

4шт.

30

360936R1

RING

1шт.

31

182587A1

KIT

Reinforcements

1шт.
