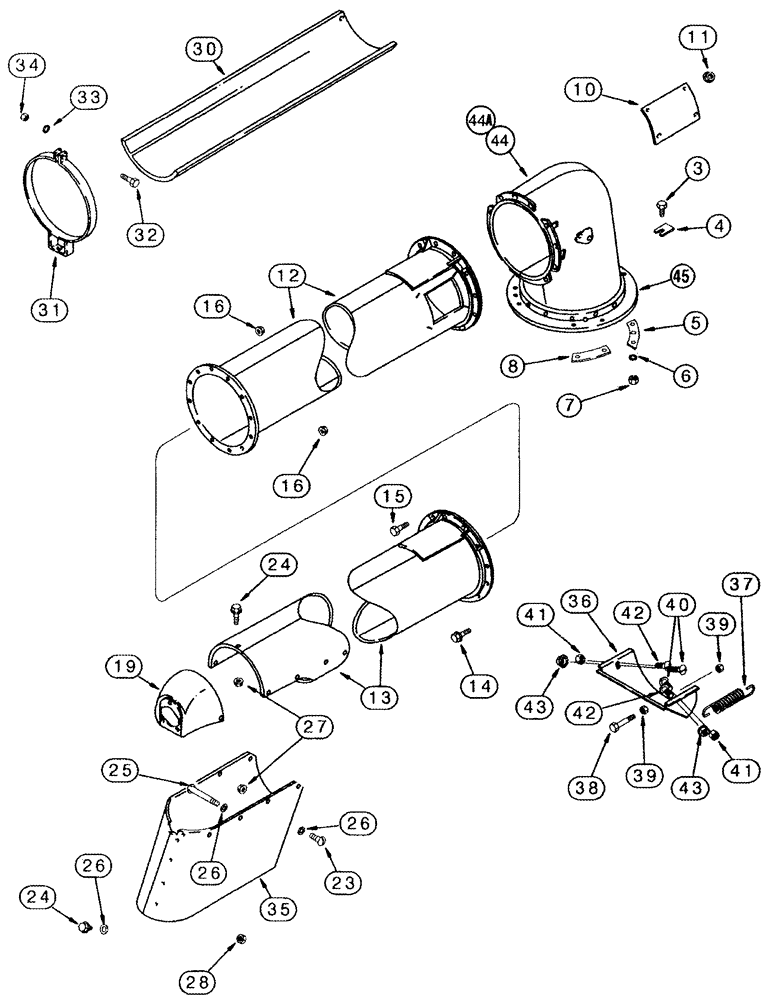

Запчасти Case IH 2366 (09E-10) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

0.036 in.

1шт.

5

186657C3

SUPPORT

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

1шт.

10

178158C1

PLATE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1317738C1

TUBE,2285 mm Length

89.96 in, Front, Plain

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

89.96 in, Front, Perforated

1шт.

13

1317783C5

TUBE,2084.01 mm Length

Rear, 82.47 in.

1шт.

13

1317899C4

TUBE,2998 mm Length

Rear, 118.031 in.

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

8-10шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2-4шт.

16

231-5146

FLANGE NUT,3/8"-16

12шт.

19

182837C2

CAP

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-6шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

16-22шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11-17шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

Perforated

1шт.

31

178166C1

CLAMP

Perforated

4шт.

32

185856C1

ADJUSTMENT SCREW

5/16 x 2

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT Down

1шт.

36

115867A1

DOOR

1шт.

37

1338869C2

SPRING,162mm Free Length

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 x 1; 8

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

44

248308A1

ELBOW

Inc. 45 - 47, Serial Range: -JJC0254999

1шт.

44

248308A2

ELBOW

Inc. 45 - 47, Start Serial: JJC0255000

1шт.

44a

291131A1

ELBOW

Inc. 45 - 47, Serial Range: -JJC0254999

1шт.

Extended Wear Rice Combines

1шт.

44a

291131A2

ELBOW

Inc. 45 - 47, Start Serial: JJC0255000

1шт.

Extended Wear Rice Combines

1шт.

45

237007A1

RING

, Serial Range: -JJC0254999

1шт.

45

237007A2

RING

, Start Serial: JJC0255000

1шт.

46

49-516

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1, Not Illustrated

20шт.

47

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

1/4 x 3/4, Not Illustrated

3шт.
