Запчасти Case IH 2366 (09E-09) - UNLOADER HOUSING - GRAIN TANK, LOWER (17) - GRAIN TANK & UNLOADER

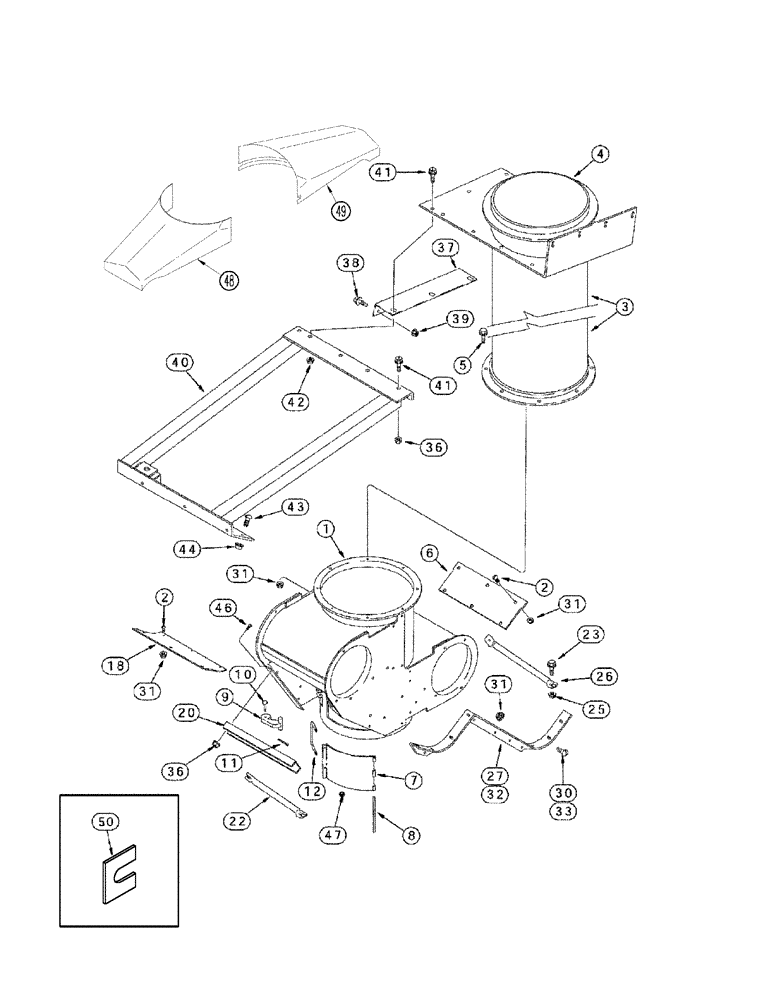

Схема запчастей Case IH 2366 - (09E-09) - UNLOADER HOUSING - GRAIN TANK, LOWER (17) - GRAIN TANK & UNLOADER
26
22
9
48
8
43
11
23
37
33
2
44
36
46
40
31
25
41
31
36
42
39
6
31
30
2
50
31
3
41
32
47
4
1
49
7
12
5
20
38
18
10
27

Артикул

Название

Примечание

Количество

1

192475C3

HOUSING

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

28шт.

248307A2

UNLOADING TUBE,647.7, 237.2 mm Length

Inc. 3 - 4A

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Unloader, Vertical

1шт.

4

237009A1

RING

1шт.

4a

49-516

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1, Not Illustrated

12шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

6

191087C1

PLATE

Front

1шт.

7

189284A1

DOOR

Inc. Decal, See Figure 09H-21, Ref. 8

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

1шт.

9

155909C1

LATCH

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

1/4 x 1-1/4; 2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT "U"

1шт.

18

191110C1

COVER

Rear

1шт.

20

192834C1

CHANNEL

1шт.

22

192848C2

ROD

Rear

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

192847C2

ROD

Front

1шт.

27

192828C1

SUPPORT

Left Hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

58шт.

32

192829C1

SUPPORT

Right Hand

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

36

231-5146

FLANGE NUT,3/8"-16

9шт.

37

1338393C2

ANGLE

1шт.

38

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

176208A2

SUPPORT

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

42

231-5146

FLANGE NUT,3/8"-16

10шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

6шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

47

231-1444

NUT,1/4"-20, GB

2шт.

48

434785A1

INSERT

Unloader Sump, Front

1шт.

49

434786A1

INSERT

Unloader Sump, Rear

1шт.

50

151670C1

SHIM

Unloader Housing Lower

5шт.

Выбрано товаров: 39
