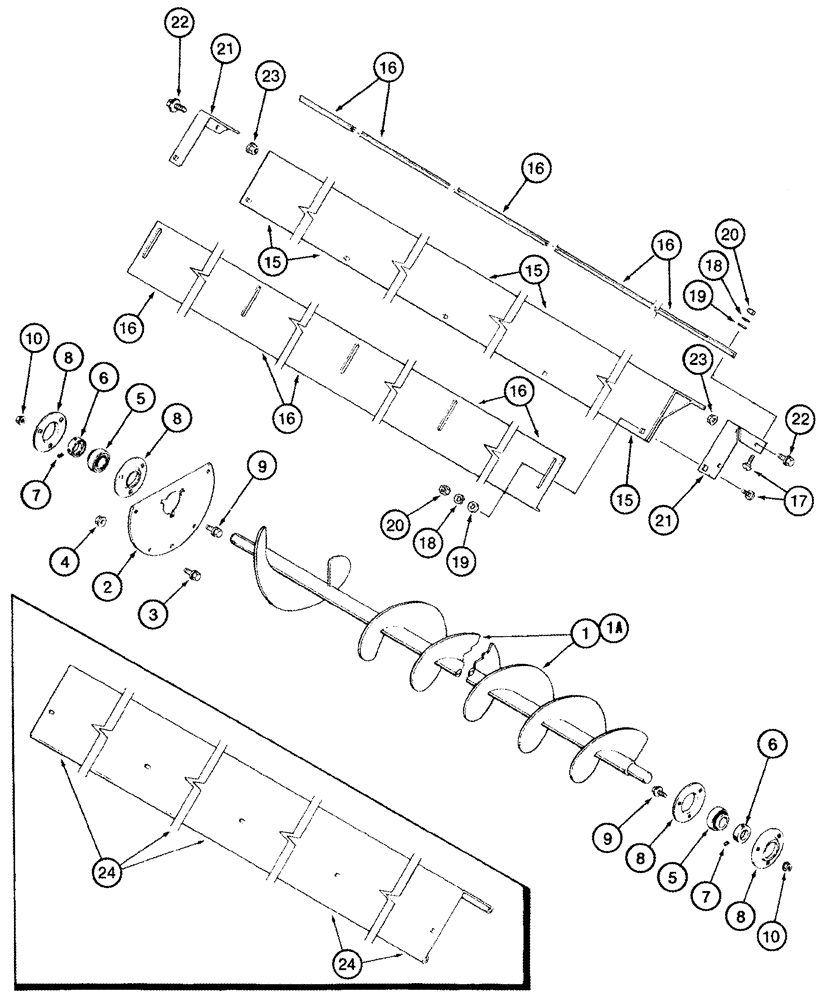

Запчасти Case IH 2366 (09E-04) - AUGERS - GRAIN TANK, LOWER (17) - GRAIN TANK & UNLOADER

1

192784C3

AUGER

Grain Tank, Lower, Serial Range: -JJC0252949

2шт.

1

390556A1

AUGER

Grain Tank, Lower, Start Serial: JJC0252950

2шт.

1a

249276A2

AUGER

Grain Tank, Lower

2шт.

Extended Wear Rice Combines

1шт.

2

192789C1

RETAINER

2шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

3

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

4шт.

6

455102R21

COLLAR

Inc. 7

4шт.

7

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1шт.

8

462360R1

FLANGED BEARING

8шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

15

1321082C5

COVER

2шт.

16

1321089C1

PLATE

4шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

20шт.

18

492-11031

LOCK WASHER,5/16"

20шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

20

425-105

NUT,5/16"-18, G5

20шт.

21

1321242C1

SUPPORT

4шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

1979940C3

COVER

1шт.
