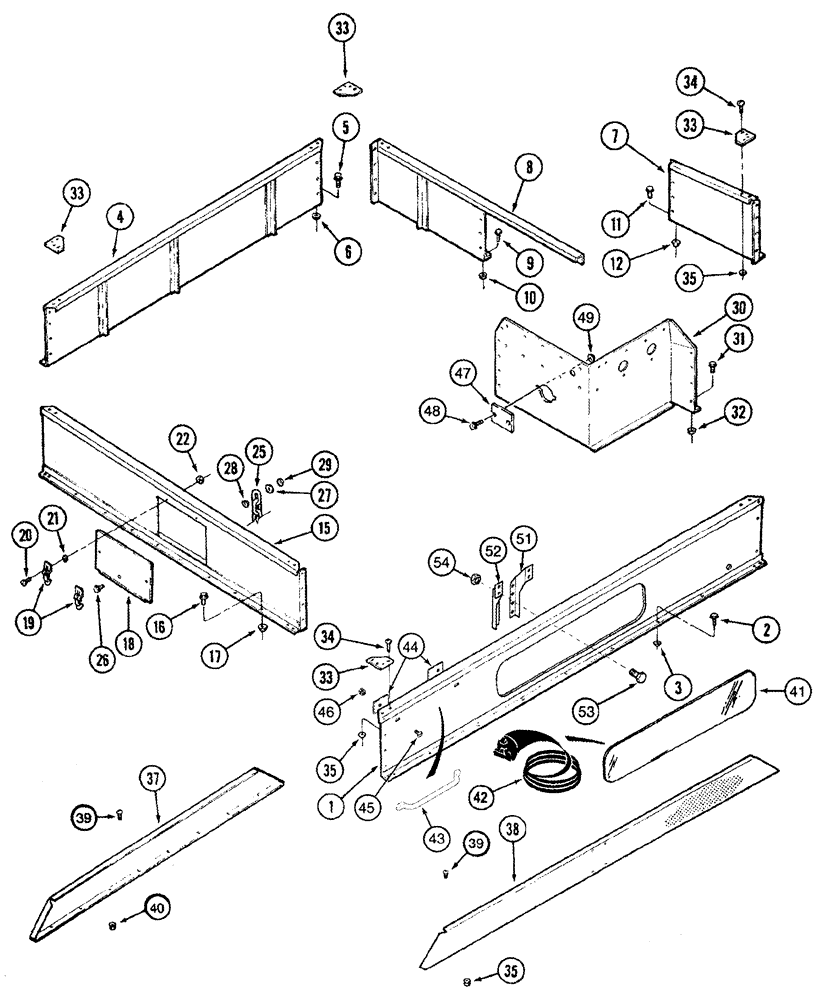

Запчасти Case IH 2366 (09E-03) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

189460A3

EXTENSION

Inc. Decal, See Figure 09H-21, Ref. 7

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

23шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

4

419891A3

EXTENSION

Rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Serial Range: -JJC0254999

19шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4, Start Serial: JJC0255000

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0255000

24шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Serial Range: -JJC0254999

19шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0255000

24шт.

7

1321813C2

GUARD

Left Hand Front

1шт.

8

1321810C1

EXTENSION

Left Hand Rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

12

231-5146

FLANGE NUT,3/8"-16

5шт.

15

1327639C2

EXTENSION

Right Hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

1327644C2

PLATE

1шт.

19

167800C1

CLIP

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

2шт.

30

1317644C2

SUPPORT

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

33

1321757C1

PLATE

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

37

183157C3

SUPPORT

Front Extension

1шт.

Rice Combine

1шт.

38

183276C2

SUPPORT

Rear Extension

1шт.

Rice Combine

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

15шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.

41

184957A1

GLASS

1шт.

42

188214A1

SEAL, GLASS

1шт.

43

256952A2

HANDRAIL

1-2шт.

44

275731A1

PLATE

2-4шт.

45

279182A3

BOLT

3/8 x 1

2-4шт.

46

231-5146

FLANGE NUT,3/8"-16

2-4шт.

47

1317645C2

PLATE

1шт.

48

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

49

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

50

198820C1

GROMMET

Not Illustrated

2шт.

51

241682A1

SUPPORT

Left Hand

1шт.

52

241683A1

SUPPORT

Right Hand

1шт.

53

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

55

258728A1

SEALING STRIP

Not Illustrated

3шт.

56

418214A1

ANGLE

Engine Cover Support

1шт.
