Запчасти Case IH 2366 (09E-02) - GRAIN TANK - SUPPORTS, LOWER (17) - GRAIN TANK & UNLOADER

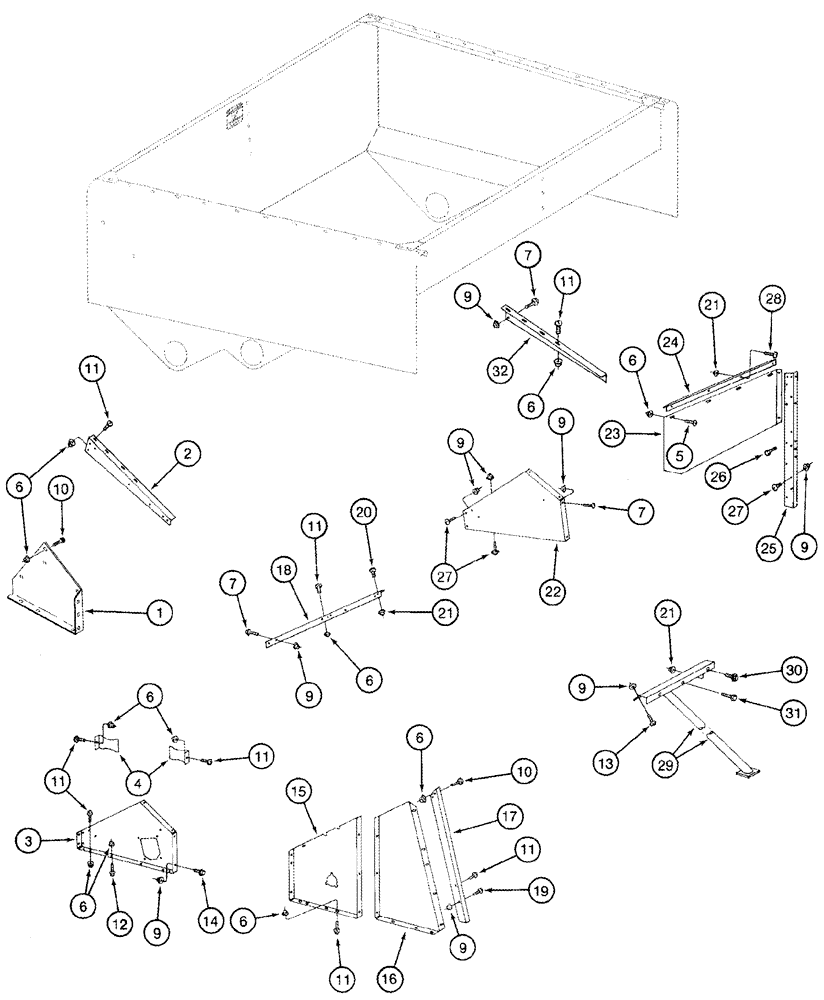

Схема запчастей Case IH 2366 - (09E-02) - GRAIN TANK - SUPPORTS, LOWER (17) - GRAIN TANK & UNLOADER
9
29
11
6
28
7
6
27
9
11
21
6
22
9
23
20
5
15
18
12
11
21
6
19
14
32
30
11
25
10
21
1
17
9
24
6
9
26
11
7
3
27
4
31
13
7
6
10
9
16
6
6
11
9
11
9
2

Артикул

Название

Примечание

Количество

1

256221A1

SUPPORT

Left Hand Front

1шт.

2

192768C3

SUPPORT

Diagonal Left Hand

1шт.

3

192771C3

SUPPORT

Center Left Hand

1шт.

4

193531C1

SUPPORT

4шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

1347380C2

SUPPORT

Left Hand Rear

1шт.

16

192777C2

SUPPORT

Left Hand Rear

1шт.

17

192775C3

SUPPORT

Left Hand Rear

1шт.

18

192773C1

ANGLE

Left Hand Rear

1шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

20

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

22

192772C3

SUPPORT

Centre Right Hand

1шт.

23

192474C1

SUPPORT

Right Hand

1шт.

24

192774C1

SUPPORT

Lower Right Hand Rear

1шт.

25

181392C3

SUPPORT

Vertical, Right Hand Rear

1шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

16шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

28

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

1шт.

29

125382A1

SUPPORT

Rear

1шт.

30

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

32

192769C3

SUPPORT

Diagonal Right Hand

1шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1, Not Illustrated

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

Выбрано товаров: 32
