Запчасти Case IH 2366 (09E-01[01]) - GRAIN TANK - SUPPORTS, UPPER, BSN JJC0254999 (17) - GRAIN TANK & UNLOADER

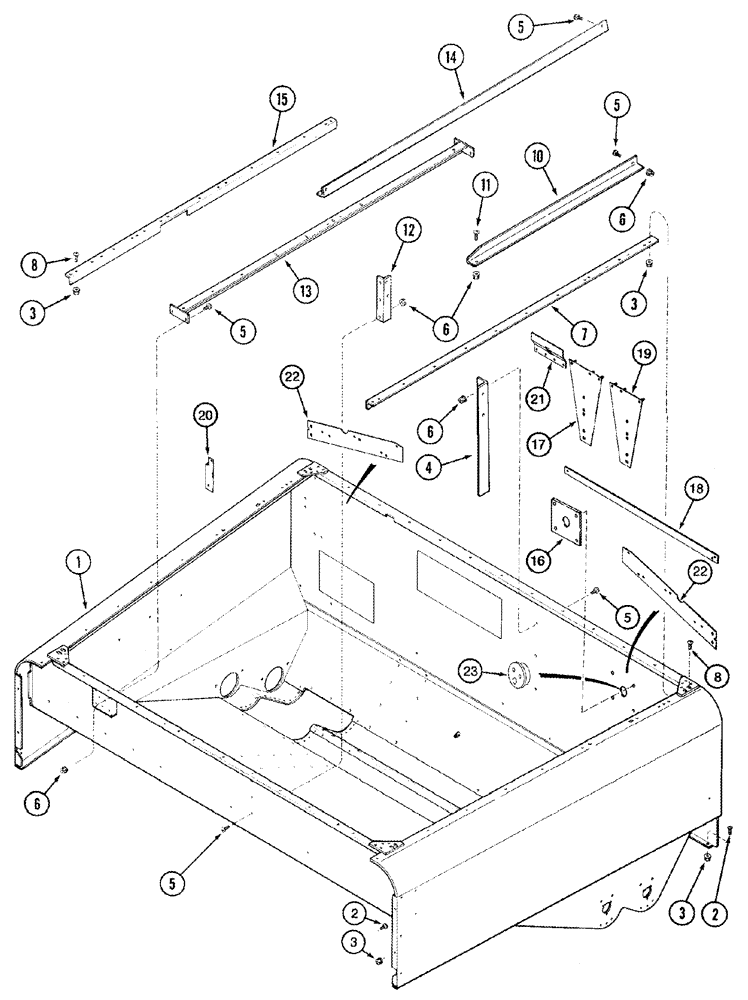

Схема запчастей Case IH 2366 - (09E-01[01]) - GRAIN TANK - SUPPORTS, UPPER, BSN JJC0254999 (17) - GRAIN TANK & UNLOADER
5
21
10
3
12
7
6
8
11
5
5
6
13
15
8
6
2
4
22
17
3
20
2
16
23
19
16
5
5
6
14
1
3
3
22

Артикул

Название

Примечание

Количество

1

189455A5

HOPPER

Inc. Decal, See Figure 09H-21, Ref. 7

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

192765C1

SUPPORT

Front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

195398C3

SUPPORT

Upper Right Hand

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

10

188414C6

ANGLE

1шт.

12

181682C2

SUPPORT

Rear

1шт.

13

192855C1

SUPPORT

1шт.

14

192767C8

SUPPORT

1шт.

15

195397C4

SUPPORT

Upper Left Hand

1шт.

16

179296A2

LARGE PLATE

PLATE, LARGE If Used

1шт.

17

255261A2

LARGE PLATE

PLATE, LARGE Left Hand

1шт.

18

255684A1

STRAP

Right Hand Front

1шт.

19

255263A2

LARGE PLATE

PLATE, LARGE Right Hand Front

1шт.

20

255724A1

SUPPORT

Left Hand

1шт.

21

255448A1

PLATE

Tool

1шт.

22

259235A3

SUPPORT

Front

2шт.

23

258336A1

GROMMET

1шт.

24

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1, Not Illustrated

1шт.

25

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Not Illustrated

1шт.

26

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Not Illustrated

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

Not Illustrated

1шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Not Illustrated

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

Выбрано товаров: 27
