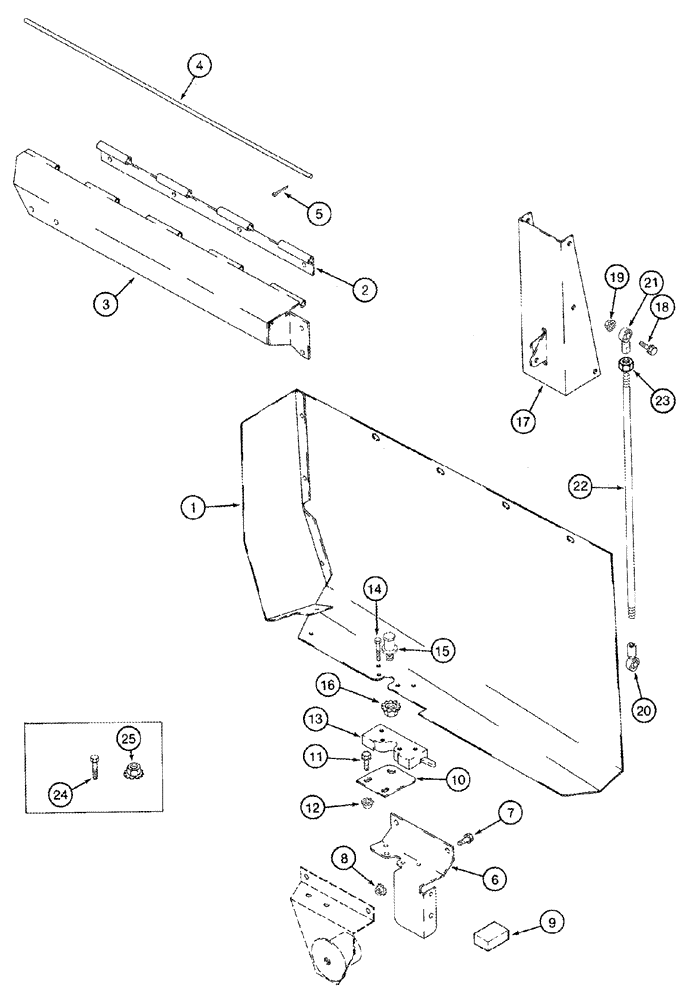

Запчасти Case IH 2366 (09D-17) - TAILINGS - SUPPORTS AND DRIVE SHIELD (16) - GRAIN ELEVATORS & AUGERS

1

143896A2

SHIELD

1шт.

2

143899A1

HINGE

1шт.

3

143902A2

HINGE

1шт.

4

144167A1

STEM

1шт.

5

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

6

143909A1

SUPPORT

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

9

187884C1

SEALING STRIP,50mm L

51 mm (2 in.), Cut From 187885C1

1шт.

9

187885C1

SEALING STRIP

660 mm (26 in), Cut From 187885C1

1шт.

10

143910A2

SUPPORT

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

141224A1

LATCH

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

15

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

15a

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64"), Not Illustrated

1шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

17

176083A2

SUPPORT

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

20

143912A1

BALL JOINT

Lower

1шт.

21

143913A1

BALL JOINT

Upper

1шт.

22

143914A2

STEM

1шт.

23

425-116

NUT,3/8" - 24, Gr 5

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

24a

492-11038

LOCK WASHER,3/8"

Not Illustrated

3шт.

25

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8

3шт.
