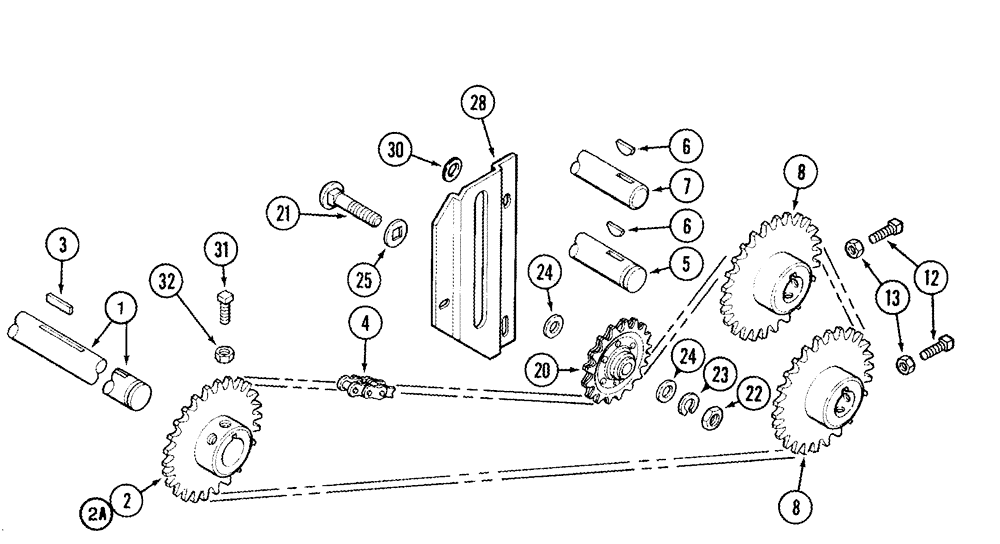

Запчасти Case IH 2366 (09D-15) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

195185A1

SHAFT

1шт.

2

192139C2

SPROCKET

25T, See Figure Note, Serial Range: -JJC0184543

1шт.

2a

296022A1

SPROCKET

27T, Start Serial: JJC0184544

1шт.

3

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

4

301226A1

CHAIN (AG),#50, 161 Links x 15.88mm = 2555.24mm

Tailings Drive, Order: 1791D (157), 241-1315 (2), 1315D (1), 241-1115 (1), Replaces 1327724C92

1шт.

5

193225C1

AUGER

Delivery, See Figure 09D-08

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

1шт.

8

1345472C1

SPROCKET

27T

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

4шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

20

631905R91

SPROCKET

17T

1шт.

21

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8 x 3

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

4шт.

25

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-5/16 x 3/32

2шт.

28

1302069C2

SUPPORT

1шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

303187A1

KIT

Includes: 296022A1, 301228A1, 301226A1, 301146A1, 301111A1, 295918A1, 301141A1, 296023A1, 186283C2, See Figure(s) 9A-01, 9C-06, 9C-07, 9D-07, 9D-16

1шт.
