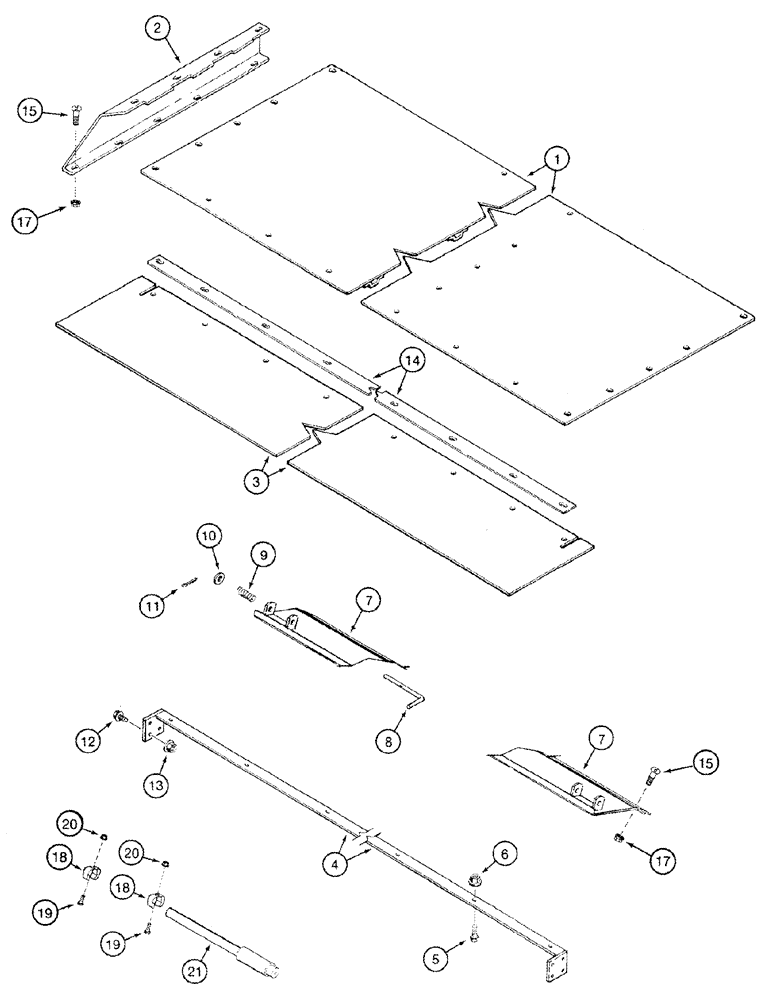

Запчасти Case IH 2366 (09D-11) - TAILINGS AUGER TROUGH PANEL AND GATE - MODELS WITH STRAW SPREADER (16) - GRAIN ELEVATORS & AUGERS

1

1970519C1

SHEET ASSY.

1шт.

2

1346963C1

SUPPORT

1шт.

3

1347000C2

SEAL

1шт.

4

1970532C1

SUPPORT

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

7

186909C3

GATE ASSY

1шт.

8

186736C3

ROD

2шт.

9

540815R2

SPRING

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

11

432-612

COTTER PIN,3/32" x 3/4"

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

14

122850A1

STRAP

1шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

13шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

34шт.

18

106744A1

CLIP

2шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10 x 1/2

2шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

21

106743A1

HANDLE

See Figure Note

1шт.
