Запчасти Case IH 2366 (09D-10) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

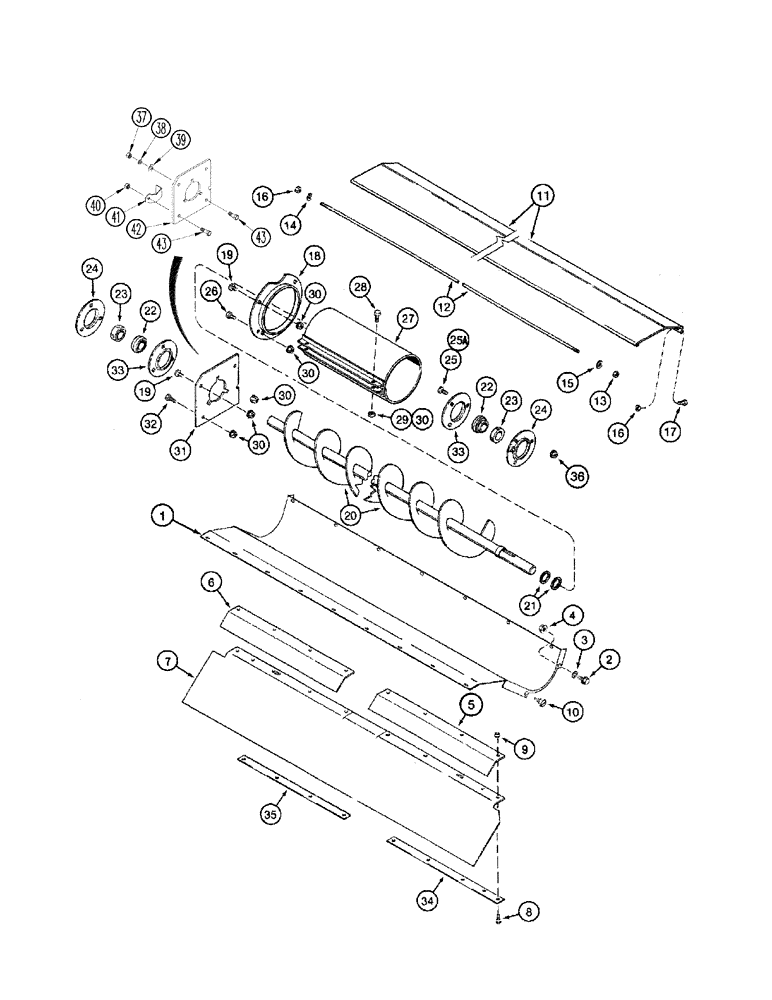

Схема запчастей Case IH 2366 - (09D-10) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
2
38
1
16
29
20
18
4
11
43
16
25a
6
30
13
14
25
30
43
35
7
30
22
3
12
39
26
42
36
9
24
23
27
33
37
17
19
21
31
5
28
22
30
24
30
23
15
40
34
10
32
33
19
8
41

Артикул

Название

Примечание

Количество

1

1346956C2

TROUGH

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

4

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

6шт.

5

1347436C2

ANGLE

Upper Left Hand

1шт.

6

1347437C2

ANGLE

Upper Right Hand

1шт.

7

1346999C1

RUBBER SEAL,3.05mm Thk

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9

232-4115

LOCK NUT,5/16"-18, GC

8шт.

10

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

11

185195C1

DOOR

1шт.

12

185198C1

ROD

1шт.

13

425-105

NUT,5/16"-18, G5

1шт.

14

492-11031

LOCK WASHER,5/16"

1шт.

15

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

16

231-5315

FLANGE NUT,Flg, 5/16"-18

10шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

9шт.

18

199665A2

FLANGE

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

5шт.

20

144021A2

AUGER

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1-9/32 x 1-3/4 x 1/16

1шт.

22

156011C92

BALL BEARING

2шт.

23

557995R11

COLLAR

2шт.

24

939460R91

FLANGE

2шт.

25

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

3шт.

25a

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

3/8 x 2

1шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

2шт.

27

199699A3

TUBE

Non-Perforated

1шт.

27

240809A2

TUBE

Perforated

1шт.

27

199700A3

TUBE

Non-Perforated

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

Used with 192693C1

1шт.

28

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

Used with 195078C1

1шт.

29

231-4115

NUT,5/16"-18, GB

2шт.

Used with 192693C1

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

Used with 195078C1

1шт.

31

183158C1

COVER

, Serial Range: -JJC0254999

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

33

939461R1

FLANGE

2шт.

34

316712A1

SEAL

Lower Left Hand

1шт.

35

316710A1

BAR

Lower Right Hand

1шт.

36

231-5146

FLANGE NUT,3/8"-16

6шт.

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

129-409

WING NUT,1/4"-20

1шт.

38

492-11025

LOCK WASHER,1/4"

1шт.

39

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

40

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

41

429985A2

COVER

, Start Serial: JJC0255000

1шт.

42

430002A1

PLATE

Grain Cleanout, Start Serial: JJC0255000

1шт.

43

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4

2шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

Выбрано товаров: 56
