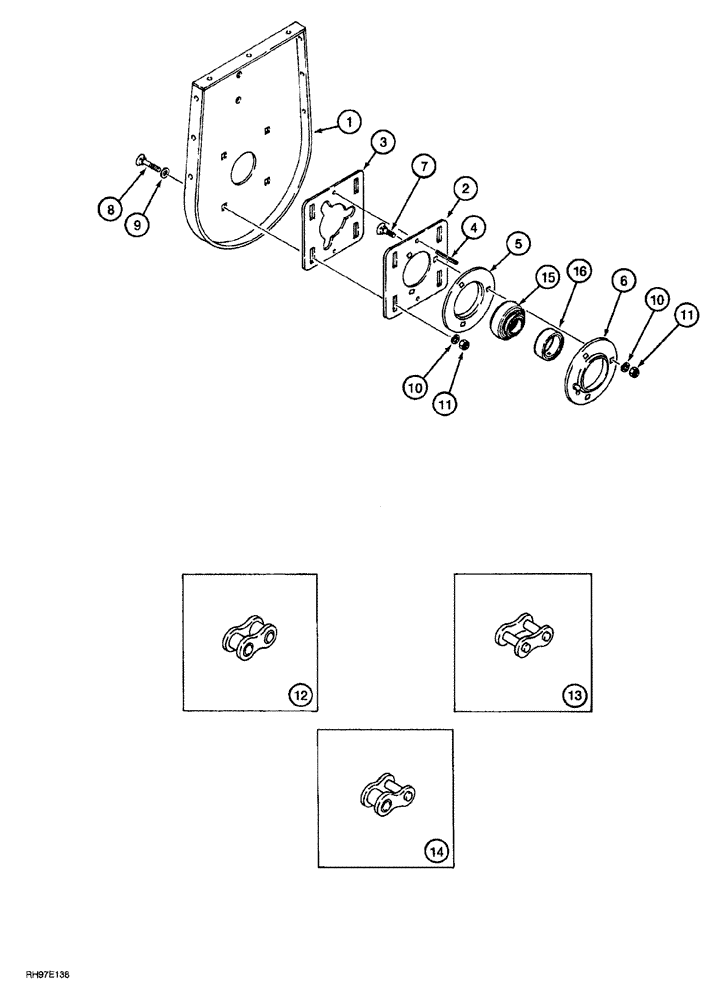

Запчасти Case IH 2366 (09D-06[04]) - GRAIN ELEVATOR, OUTER BOOT AND ELEVATOR SLIDE ADJUSTER WITH AFS (16) - GRAIN ELEVATORS & AUGERS

1

223237A1

SIDE PLATE

boot, outer

1шт.

224765A1

ADJUSTER

KIT elevator slide, Includes Ref: 2-11

1шт.

305441A1

LARGE PLATE

PLATE, LARGE ASSEMBLY elevator adjuster, Includes Ref: 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE slide adjuster, outer

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE slide adjuster, inner

1шт.

4

NSS

NOT SOLD SEPARAT

PIN roll, 1/4 x 1/2 inch

2шт.

5

939461R1

FLANGE

bearing, grooved

1шт.

6

939460R91

FLANGE

bearing, with 45 degree grease fitting

1шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3шт.

8

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

425-106

NUT,3/8"-16, Cl 5

7шт.

12

241-1115

LINK,Chain, 15.87mm Pitch

roller, single pitch, No. 50, 5/8 inch pitch, use to extend the elevator drive chain, if required

3шт.

13

241-1315

LINK, CONNECTING

single pitch, No. 50, 5/8 inch pitch, use to extend the elevator drive chain, if required

3шт.

14

241-18113

LINK,41.4mm Pitch

offset, single pitch, No. C550, 1-5/8 inch pitch, if required

2шт.

15

156011C92

BALL BEARING

ball

1шт.

16

557995R11

COLLAR

bearing, with set screw

1шт.
