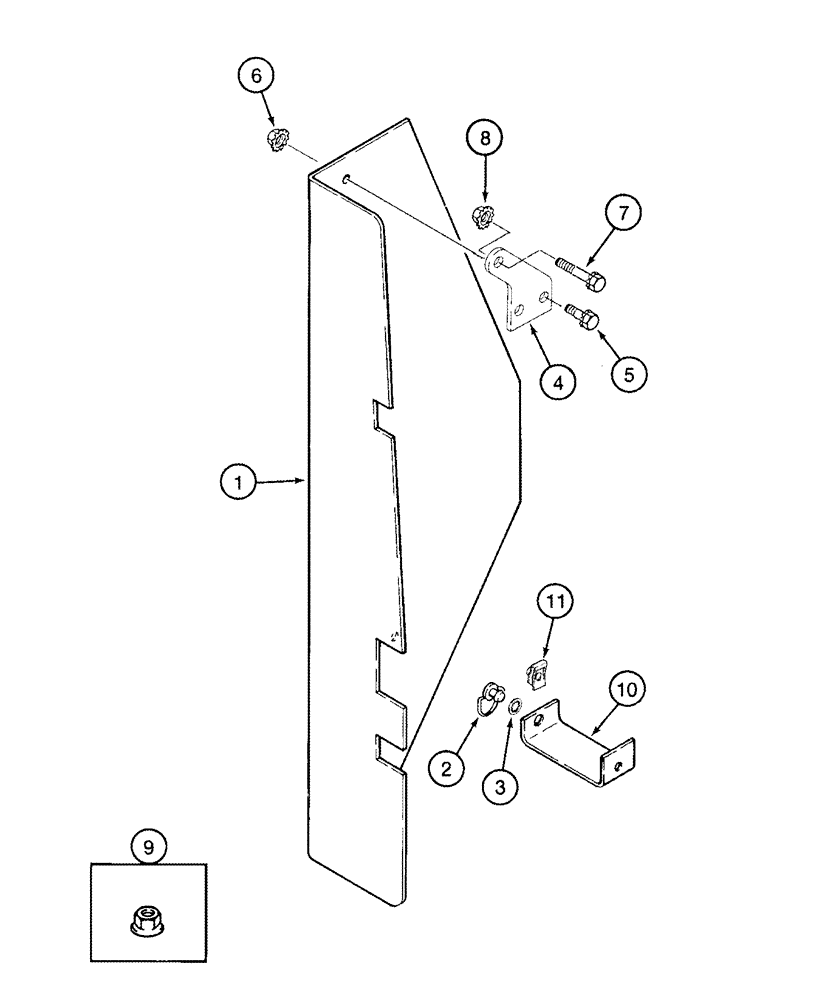

Запчасти Case IH 2366 (09D-04) - GRAIN ELEVATOR - SHIELD, DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

185519A2

GUARD

1шт.

2

178352A1

STUD

1шт.

3

1981869C1

WASHER

1шт.

4

185520A2

LARGE PLATE

PLATE, LARGE

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

1шт.

10

185522A2

SUPPORT

1шт.

11

A36042

CLIP

1шт.
