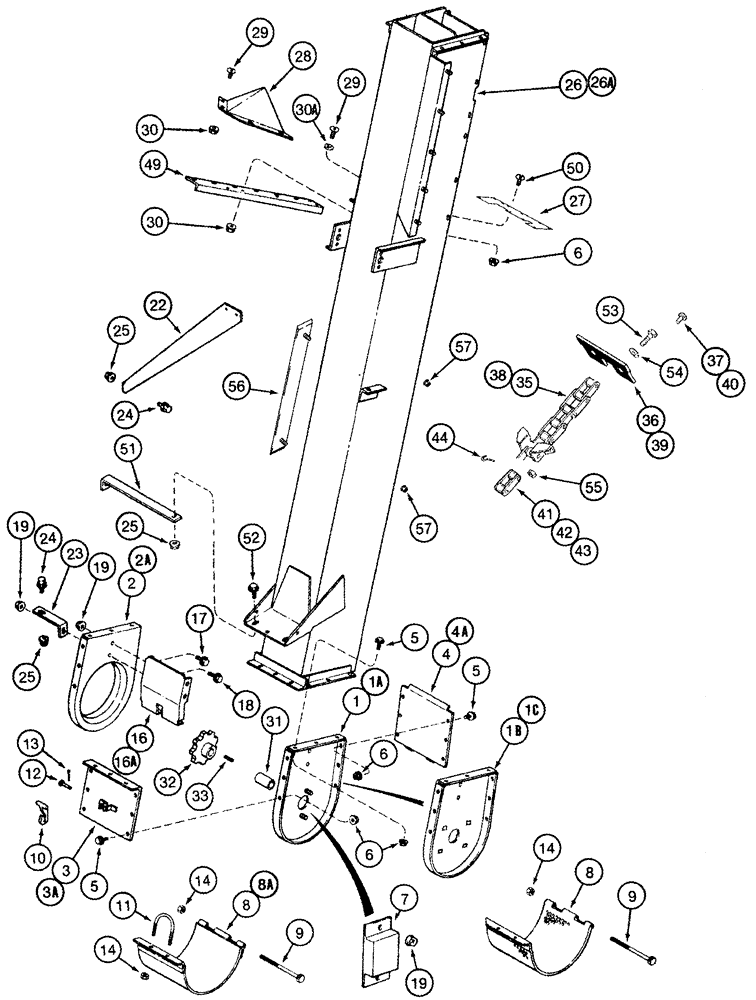

Запчасти Case IH 2366 (09D-03) - GRAIN ELEVATOR - HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

1

1318585C3

LARGE PLATE

PLATE, LARGE Outer

1шт.

1a

325461A1

SIDE ASSY.

Outer

1шт.

Extended Wear Rice Combines

1шт.

1b

223237A1

SIDE PLATE

Outer

1шт.

With Advanced Farming System

1шт.

1c

251473A1

GUARD

Outer

1шт.

Extended Wear Rice Combines

1шт.

With Advanced Farming System

1шт.

2

1317673C2

BASE

Inner

1шт.

2a

249261A1

BASE

Inner

1шт.

Extended Wear Rice Combines

1шт.

3

1317271C1

COVER

Rear

1шт.

3a

249263A1

COVER

Rear

1шт.

Extended Wear Rice Combines

1шт.

4

1317273C1

COVER

Front

1шт.

4a

249265A1

COVER

Front

1шт.

Extended Wear Rice Combines

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

7

1330011C2

COVER

Australia Only

1шт.

8

1317276C1

DOOR

Non-Perforated

1шт.

8

1317841C1

DOOR

Perforated

1шт.

8a

249271A1

INSPECTION DOOR

Non-Perforated

1шт.

Extended Wear Rice Combines

1шт.

9

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

5/16 x 7-1/2

1шт.

10

155909C1

LATCH

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

5/16

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

1/4 x 1-1/4; 2

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

14

231-4115

NUT,5/16"-18, GB

3шт.

16

1317270C3

GUARD

Grain, Bottom

1шт.

16a

249267A1

DEFLECTOR

Grain, Bottom

1шт.

Extended Wear Rice Combines

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

19

231-5146

FLANGE NUT,3/8"-16

6шт.

22

1317362C5

SUPPORT

Lower

1шт.

23

1327667C2

SUPPORT

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

231-5146

FLANGE NUT,3/8"-16

7шт.

26

1317376C9

HOUSING

1шт.

Without Advanced Farming System

1шт.

26

367708A4

HOUSING

1шт.

With Advanced Farming System

1шт.

26a

249269A1

HOUSING

1шт.

Extended Wear, Without AFS, Rice Combines

1шт.

26a

367711A4

HOUSING

1шт.

Extended Wear AFS Rice Combines

1шт.

27

303956A1

LARGE PLATE

PLATE, LARGE Replaces: 1317688C1

1шт.

28

1317698C1

PLATE

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

16шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

30a

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

7шт.

31

1317193C2

SPACER

31 x 38 x 52 mm

3шт.

32

1317192C1

SPROCKET

9T

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

33

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

1321334C92

ELEVATOR CHAIN

Inc. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSY.

1шт.

36

1317480C2

RUBBER FLIGHT

37шт.

37

185053C1

RIVET

74шт.

1317613C92

PALLET

Flight Assy, Inc. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

LINK Connecting

1шт.

39

1317480C2

RUBBER FLIGHT

1шт.

40

185053C1

RIVET

2шт.

41

241-15113

LINK,41.4mm Pitch

No. C550, 1-5/8 P

1шт.

42

241-12113

LINK,Chain, 41.4mm Pitch

No. C550, 1-5/8 P

2шт.

43

241-18113

LINK,41.4mm Pitch

No. C550, 1-5/8 P

1шт.

44

23442R1

PIN,2.36mm OD

S type, No. 550

2шт.

49

1317493C1

BRACKET

1шт.

50

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

51

1317625C1

SUPPORT

1шт.

52

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

53

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

55

232-4116

NUT,3/8"-16, GC

2шт.

56

1984383C2

WEAR STRIP

1шт.

57

275319A1

NUT

2шт.
