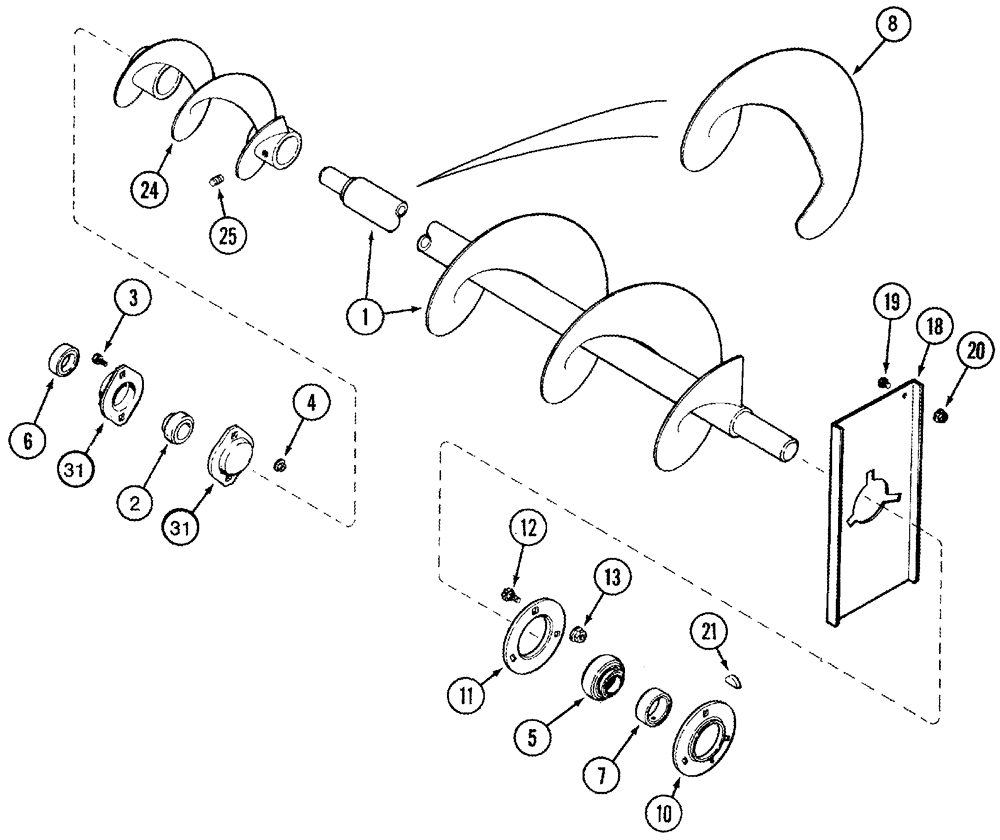

Запчасти Case IH 2366 (09D-01) - AUGER ASSEMBLY - HORIZONTAL GRAIN DELIVERY AND DISTRIBUTOR - BSN JJC0252949 (16) - GRAIN ELEVATORS & AUGERS

1

1318912C3

AUGER

Horizontal, Delivery

1шт.

2

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

Left Hand

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

156011C92

BALL BEARING

Right Hand

1шт.

6

455102R21

COLLAR

Left Hand

1шт.

7

557995R11

COLLAR

Right Hand

1шт.

8

241730A1

PALLET

1шт.

With Advanced Farming System

1шт.

10

670375R11

FLANGE

Right Hand

1шт.

11

939461R1

FLANGE

Grooved, Right Hand

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

3шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

18

1321129C1

PLATE

Right Hand

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

162103C91

AUGER

Distributor

1шт.

25

83-1448

SET SCREW,7/16" - 14 x 1/2"

7/16 x 1/2

2шт.

31

50591

FLANGE,52mm

2шт.
