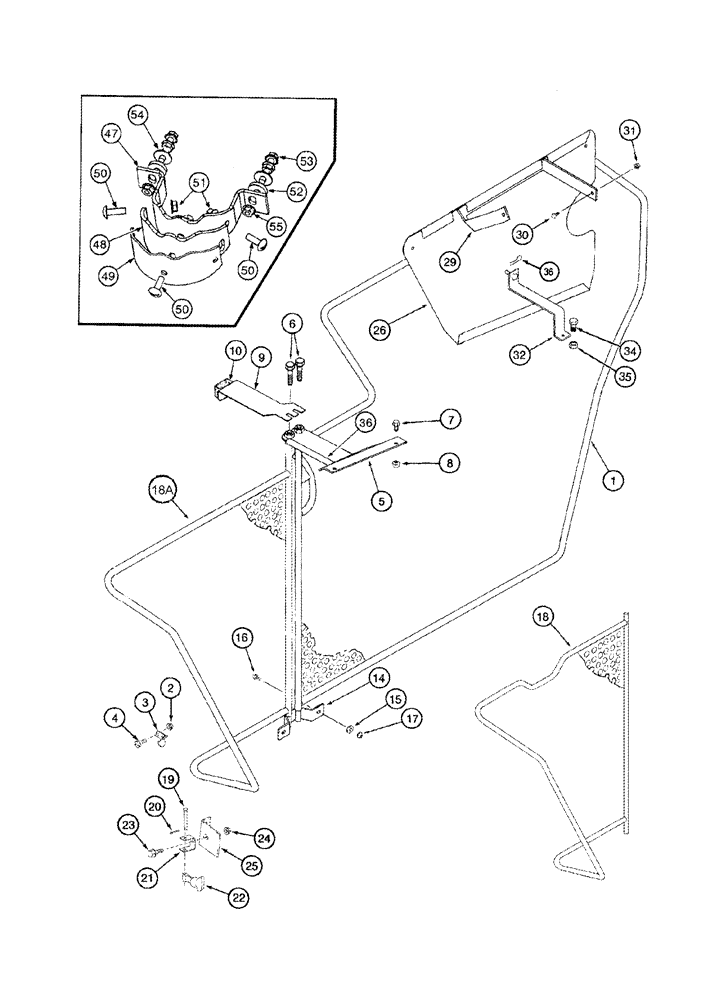

Запчасти Case IH 2366 (09C-10) - SHIELDS, INLET AND SEPARATOR - LEFT HAND (15) - BEATER & CLEANING FANS

1

189385A2

GUARD

Left Hand, Front, Inc. Decal, See Figure 09H-20, Ref. 3

1шт.

2

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

3

L105124

LATCH HOOK

2шт.

4

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

5

143619A2

SUPPORT

Upper Left Hand

1шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

143622A3

SUPPORT

Bumper

1шт.

10

187885C1

SEALING STRIP

660 mm (26 in.), Cut From 87281C1

1шт.

14

142430A2

SUPPORT

Lower Left Hand

1шт.

15

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

143623A4

GUARD

Left Hand, Rear, Currently Optional in Australia, Serial Range: -JJC0253999

1шт.

18a

404921A1

SHIELD

Left Hand, Rear, Inc. Decal, See Figure 09H-21, Ref. 2, Start Serial: JJC0254000

1шт.

19

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

1шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

21

188103C2

BRACKET

1шт.

22

494307C1

LATCH

1шт.

23

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

25

229268A2

BRACKET

1шт.

26

243165A1

GUARD

Unloader Drive, Inc. Decal, See Figure 09H-21, Ref. 11, Order: 243168A1, Ref. 32

1шт.

29

185515A2

SUPPORT

Unloader Drive Shield

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

243168A1

SUPPORT

1шт.

Use with 610784R1, Ref. 36

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

36

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

Use with 243168A1, Ref. 32

1шт.

46

126046A1

GASKET,287.02mm L

292 mm (11-1/2 in.), Cut From 1330108CX, Not Illustrated

1шт.

47

241070A2

SUPPORT

Left Hand

1шт.

48

246444A2

INDEX

Left Hand

1шт.

49

251517A1

SUPPORT

Left Hand

1шт.

50

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

3шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

52

251987A1

RUBBER WASHER

Rubber

2шт.

53

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16 x 1-1/2

2шт.

54

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

2шт.

55

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

2шт.

56

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX, Not Illustrated

1шт.

57

87029779

SEAL

288 mm (11-11/32 in), Cut From 1330108CX, Not Illustrated

1шт.

58

187884C1

SEALING STRIP,50mm L

51 mm (2 in), Cut From 187885C1

1шт.
