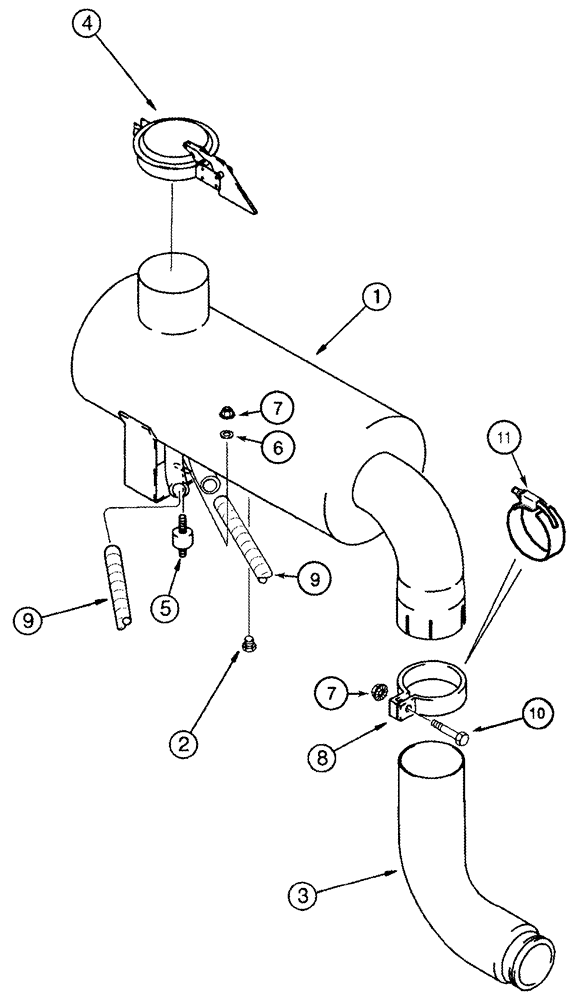

Запчасти Case IH 2366 (02-10[01]) - EXHAUST SYSTEM - SPARK ARRESTER - BSN JJC0255700 (01) - ENGINE

1

254334A1

MUFFLER

Spark Arrester

1шт.

2

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

3

182503A1

EXHAUST SYSTEM PIPE,114.3 mm OD

1шт.

4

182770A1

CAP

1шт.

5

1979761C1

SPACER

3/8" ID x 1

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1-2шт.

8

650986C1

CLAMP,69.85mm - 82.55mm

No Longer Used, Order: A173381

1шт.

9

255057A1

HOSE

1100 mm (43-5/16"), Check Valve to Spark Arrester, Strata to Spark Arrester

2шт.

10

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

11

A173381

CLAMP,117.7mm ID

Includes Hardware

1шт.
