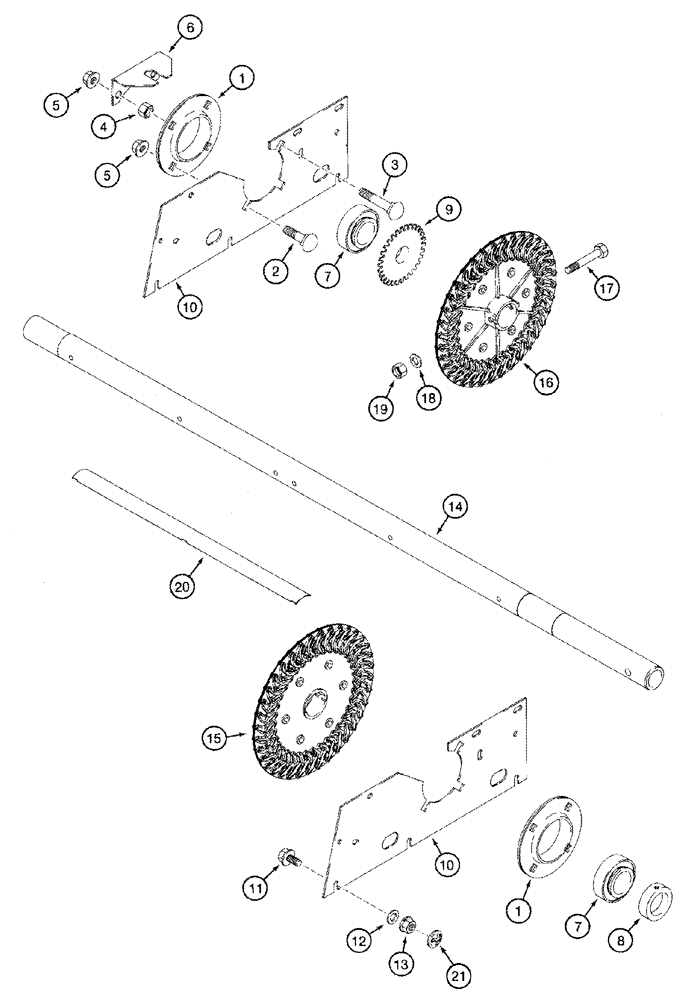

Запчасти Case IH 2366 (09C-05) - CLEANING FAN - SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS

1

76079C1

FLANGE

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

1541554C1

SUPPORT

1шт.

7

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

2шт.

8

86999734

COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W

Inc. Set Screw

1шт.

9

1541555C1

SPROCKET

1шт.

10

120870A1

SUPPORT

Inc. Decal, See Figure 09H-21, Ref. 14

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-81143

WASHER,13/32" x 1 1/2" x .120"

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

1541935C3

FAN

Inc. 14 - 20

1шт.

14

1989550C3

SHAFT

1шт.

15

1541560C1

FAN BLADE

Right Hand (2 used on right w/ 1 1541570C1)

3шт.

16

1541570C1

FAN BLADE

Left Hand (2 used on left w/ 1 1541560C1)

3шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

6шт.

18

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

12шт.

19

230-4115

LOCK NUT,5/16"-18, GA

5/16

6шт.

20

1541631C1

PADDLE

72шт.

21

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

22

100-1537

SNAP RING,#37, Ext

Not Illustrated

3шт.
