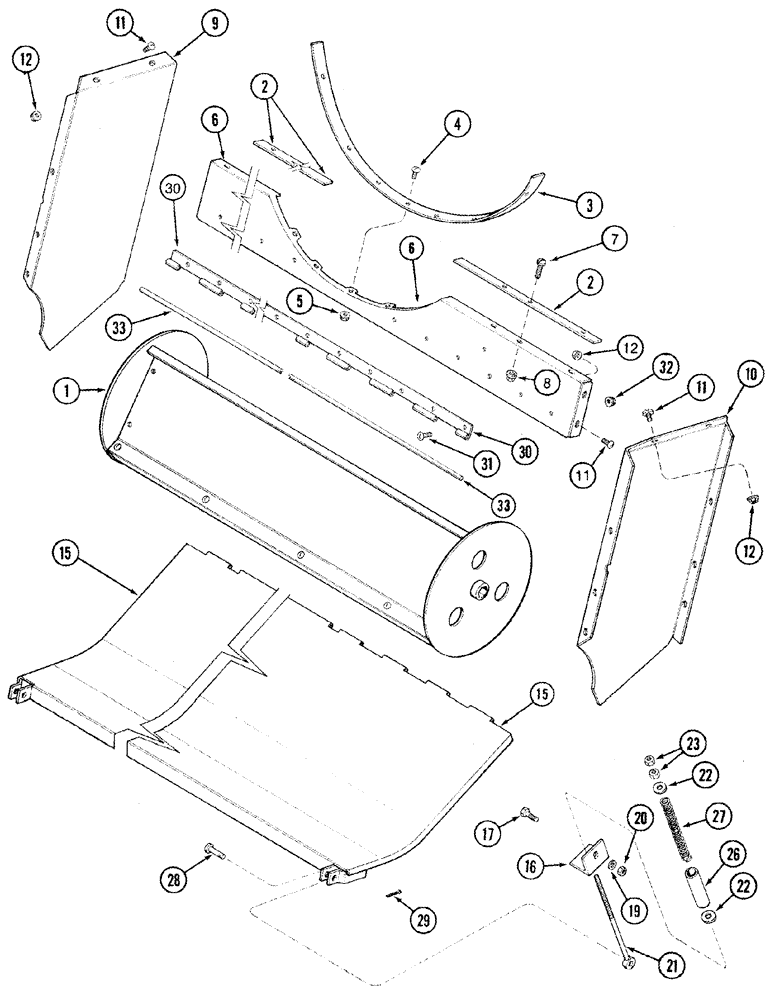

Запчасти Case IH 2366 (09C-03) - BEATER PAN - DISCHARGE - RICE - SPRING LOADED (15) - BEATER & CLEANING FANS

1

REF

INSTRUCTION

BEATER ASSY., Discharge, See Figure 09C-02

1шт.

2

182891C1

PLATE

2шт.

3

182898C1

SUPPORT

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

182929C1

SUPPORT

Cage, Lower Rear

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

8

231-5146

FLANGE NUT,3/8"-16

6шт.

9

182946C1

DEFLECTOR

Discharge, Left Hand

1шт.

10

182947C1

DEFLECTOR

Discharge, Right Hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

16шт.

12

231-5146

FLANGE NUT,3/8"-16

16шт.

15

182924C2

DOOR

Beater

1шт.

16

182896C2

SUPPORT

Spring

2шт.

17

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

19

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

2шт.

20

232-4116

NUT,3/8"-16, GC

2шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

2шт.

22

495-81162

WASHER,17/32" x 1 1/2" x .179"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

4шт.

26

182981C1

SPACER

Spring

2шт.

27

391745R1

SPRING

2шт.

28

439-1828

HEADED PIN,1/2" x 1 3/4"

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

182894C1

HINGE

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

10шт.

32

231-5146

FLANGE NUT,3/8"-16

10шт.

33

182977C1

ROD

1шт.
