Запчасти Case IH 2366 (09C-02) - BEATER - DISCHARGE - CORN AND GRAIN - FIXED (15) - BEATER & CLEANING FANS

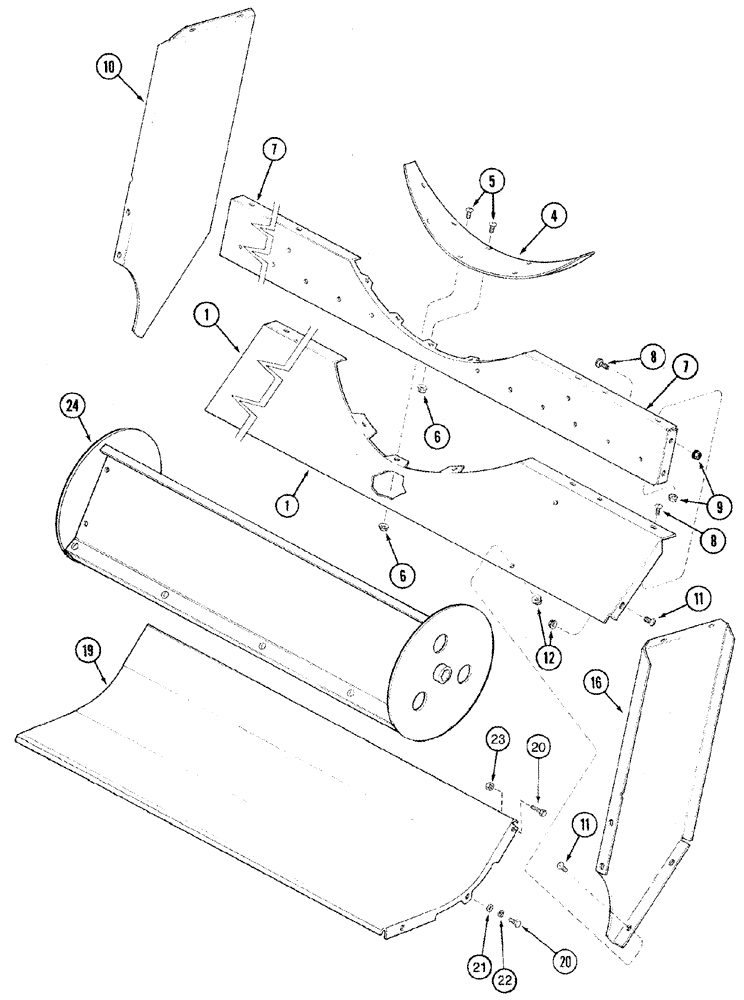

Схема запчастей Case IH 2366 - (09C-02) - BEATER - DISCHARGE - CORN AND GRAIN - FIXED (15) - BEATER & CLEANING FANS
11
1
5
11
20
21
1
9
22
7
24
20
12
8
4
9
16
6
19
6
23
7

Артикул

Название

Примечание

Количество

1

192028C2

SUPPORT

Beater Discharge

1шт.

4

193909C2

SUPPORT

Beater Pan, Front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

9шт.

6

231-5146

FLANGE NUT,3/8"-16

9шт.

7

182929C1

SUPPORT

Cage, Lower Rear

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

10шт.

9

231-5146

FLANGE NUT,3/8"-16

10шт.

10

193452C1

DEFLECTOR

Discharge, Left Hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

12шт.

12

231-5146

FLANGE NUT,3/8"-16

12шт.

16

193453C1

DEFLECTOR

Discharge, Right Hand

1шт.

19

195426C3

SUPPORT ASSY.

Beater

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

232-4116

NUT,3/8"-16, GC

2шт.

24

REF

INSTRUCTION

BEATER ASSY., Discharge, See Figure 09C-03

1шт.

Выбрано товаров: 17
