Запчасти Case IH 2366 (09C-01) - BEATER - DISCHARGE (15) - BEATER & CLEANING FANS

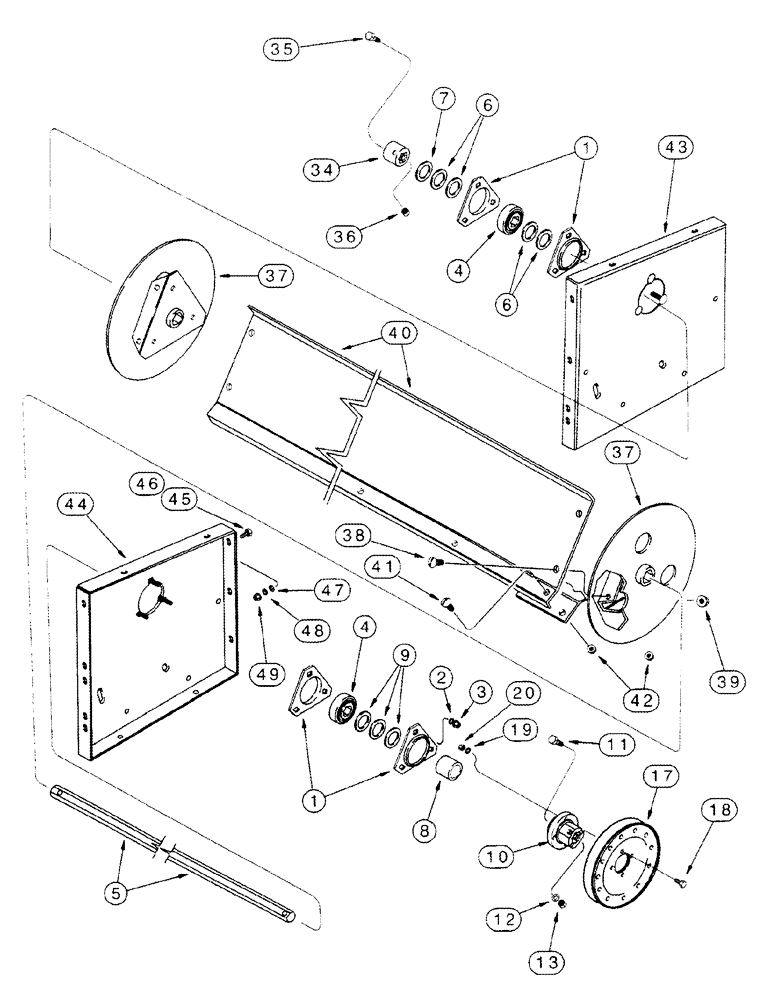

Схема запчастей Case IH 2366 - (09C-01) - BEATER - DISCHARGE (15) - BEATER & CLEANING FANS
48
10
4
4
2
38
17
35
5
34
47
7
20
36
42
46
37
44
43
18
19
39
11
45
37
6
6
12
9
13
1
1
40
3
49
8
41

Артикул

Название

Примечание

Количество

1

180955C1

FLANGED BEARING,0.375"

4шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

425-106

NUT,3/8"-16, Cl 5

6шт.

4

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

5

1302175C2

SHAFT

1шт.

6

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

4шт.

7

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

1-11/32 x 2 x 3/64

1шт.

8

632147R1

SPACER

1-5/8 OD x 1-5/8

1шт.

9

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

3шт.

10

1319402C1

HUB

1шт.

11

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

1шт.

12

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

1шт.

13

232-4118

NUT,1/2"-13, GC

1шт.

17

195161C1

PULLEY

8-3/8 in. OD

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

8шт.

20

425-105

NUT,5/16"-18, G5

4шт.

34

117051A1

HUB

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

35

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

36

231-4116

NUT,3/8"-16, GB

3/8

1шт.

37

1319266C1

HUB

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

12шт.

39

231-5146

FLANGE NUT,3/8"-16

12шт.

40

1319269C1

SUPPORT

3шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

15шт.

42

231-5146

FLANGE NUT,3/8"-16

17шт.

43

181092C2

SUPPORT ASSY.

Left Hand

1шт.

44

181093C2

SUPPORT

Right Hand

1шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

13шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Left Hand

1шт.

46

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

RH

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

16шт.

48

492-11038

LOCK WASHER,3/8"

16шт.

49

425-106

NUT,3/8"-16, Cl 5

16шт.

Выбрано товаров: 35
