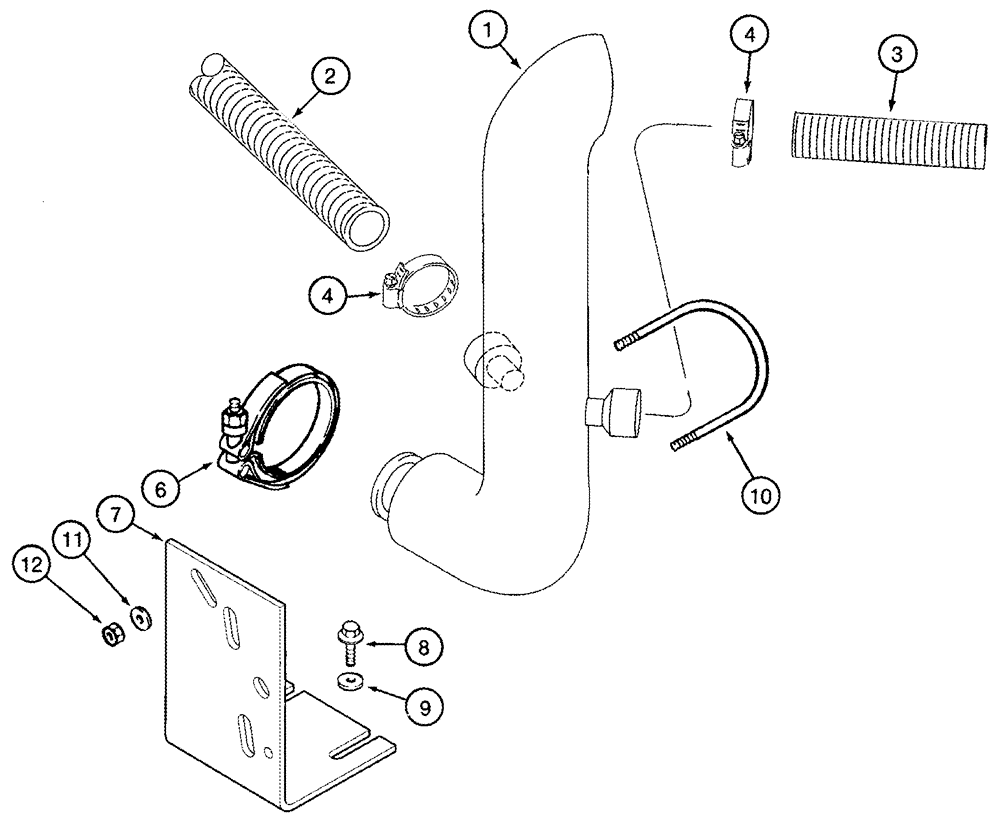

Запчасти Case IH 2366 (02-09) - EXHAUST SYSTEM - PIPE (01) - ENGINE

1

297522A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

255060A2

HOSE

Strata To Exhaust Pipe, 820 mm (32-1/4 in.)

1шт.

3

255061A2

HOSE

Check Valve To Exhaust Pipe, 620 mm (24-3/8 in.)

1шт.

4

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

6

A170807

CLAMP,102mm ID

Includes Hardware

1шт.

7

84569C8

SUPPORT TUBE

1шт.

8

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

9

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

10

117410A2

U-BOLT

3/8"

1шт.

11

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

12

231-4116

NUT,3/8"-16, GB

3/8

2шт.
