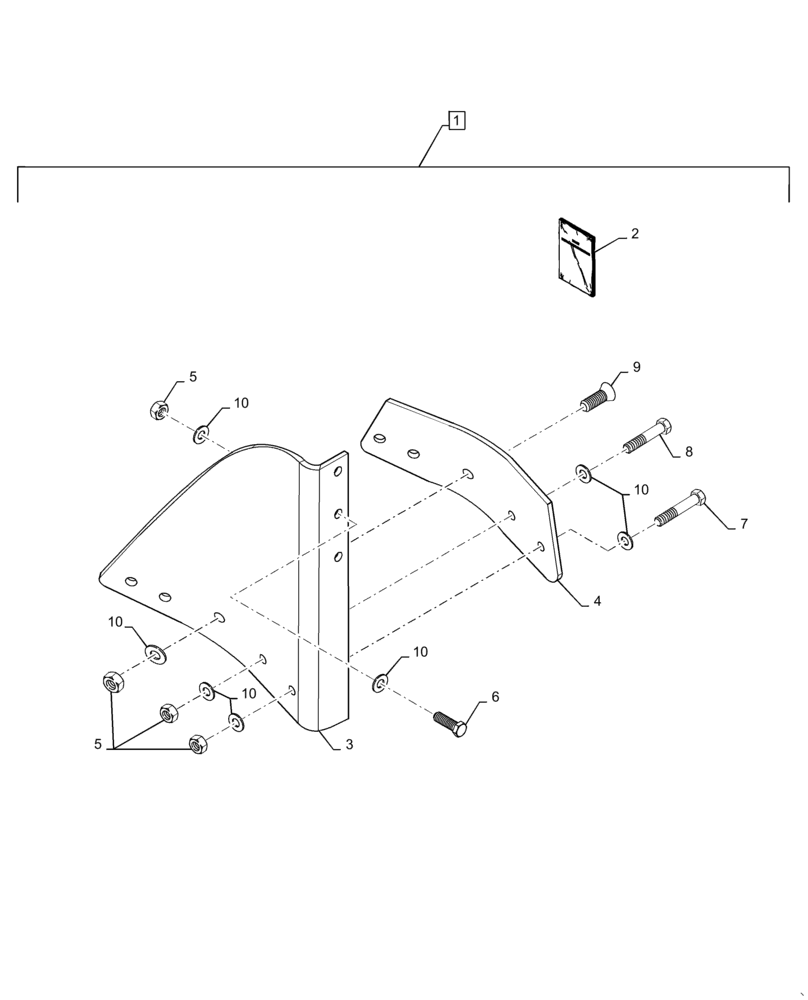

Запчасти Case IH 2366 (09B-24) - KIT ROTOR IMPELLER 60 STD BLADE (14) - ROTOR, CONCANVES & SIEVE

1

B93730

KIT

Incl 2 - 10

1шт.

2

8-28572

INSTRUCTION

1шт.

3

1309113C2

BLADE

Rotor Impeller

3шт.

4

183253C4

BAR

Impeller Wear 24 Grain Rotor

3шт.

5

199528A1

NUT

24шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

7

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

8

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

9

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

9шт.

10

87393626

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

39шт.
