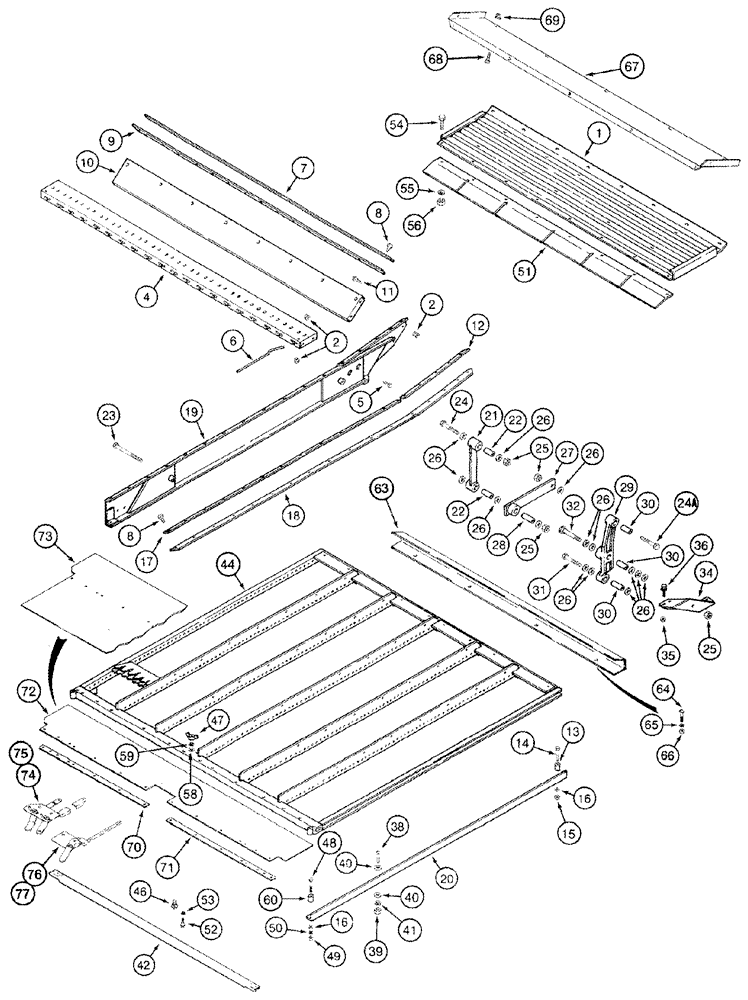

Запчасти Case IH 2366 (09B-19) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192056C1

GRAIN PAN

GRAINPAN

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

4

1312156C1

SUPPORT

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4; 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

Short

20шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

Long

20шт.

7

192048C2

BAR

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2

1шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

Front

1шт.

10

192044C1

SUPPORT

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

192052C3

BAR

Short

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

2шт.

16

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

17

1325332C2

BAR

Long

2шт.

18

1325331C1

SEALING STRIP

2шт.

19

1979206C1

RAIL

Left Hand

1шт.

19

1979207C1

RAIL

Right Hand

1шт.

20

1325334C3

SUPPORT

Right Hand

1шт.

20

1325333C3

SUPPORT

Left Hand

1шт.

21

1957455C1

ARM

Inc. 22

2шт.

22

1330324C1

BUSHING

2шт.

23

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

5/8 x 7-1/2; 8

2шт.

24

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

24a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

25

232-41110

NUT,5/8"-11, GC

10шт.

26

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

26шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

29/32 x 1-1/2 x 7/64

4шт.

27

1330357C1

ARM

Inc. 28

2шт.

28

1330324C1

BUSHING

1шт.

29

1957460C2

LEVER

Inc. 30

2шт.

30

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64

3шт.

31

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6; 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8 x 5

2шт.

34

1968827C1

SUPPORT

Left Hand

1шт.

34

1968828C1

SUPPORT

Right Hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

8шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

39

425-105

NUT,5/16"-18, G5

2шт.

40

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

4шт.

41

492-11031

LOCK WASHER,5/16"

2шт.

42

1325336C2

BAR

1шт.

44

1957314C8

GRAIN SIEVE

1-5/8, Close Slat Chaffer

1шт.

44

1957316C7

GRAIN SIEVE

1-1/8, Adjustable Chaffer

1шт.

44

1957315C8

GRAIN SIEVE

1-5/8, Corn Slat Shaffer

1шт.

44

1970516C7

GRAIN SIEVE

Petersen Extended Chaffer, Serial Range: -JJC0253999

1шт.

44

1970516C8

GRAIN SIEVE

Petersen Extended Chaffer, Start Serial: JJC0254000

1шт.

46

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2; 2

2шт.

47

129-409

WING NUT,1/4"-20

2шт.

48

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

49

429-106

NUT,3/8"-16, G8

3/8; 8

4шт.

50

492-11038

LOCK WASHER,3/8"

2шт.

50

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

51

1319258C1

COVER

1шт.

52

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

2шт.

53

425-106

NUT,3/8"-16, Cl 5

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

55

492-11025

LOCK WASHER,1/4"

6шт.

56

425-104

NUT,1/4"-20, Cl 5

6шт.

57

120667A1

PLATE

1шт.

58

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

59

492-11025

LOCK WASHER,1/4"

2шт.

60

612233R1

SPACER,5/8" Tube x 1 1/8"

13/32 x 5/8 x 1-3/16

2шт.

63

119997A1

DEFLECTOR

1шт.

64

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

4шт.

65

495-81107

WASHER,.281" x 7/8" x .060"

9/32 x 7/8 x 3/64

4шт.

66

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

67

185042C1

SUPPORT

1шт.

68

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

68

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

4шт.

69

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

70

1338343C2

RETAINER

Left Hand

1шт.

71

1338344C2

RETAINER

Right Hand

1шт.

72

1346999C1

RUBBER SEAL,3.05mm Thk

Short Flap

1шт.

With Straw Spreader

1шт.

73

124558A2

SEAL,686mm W x 1183.6mm L

Long Flap

1шт.

With Straw and Chaff Spreader

1шт.

74

280371A1

LEVER

Rear, Used With 1957316C6, Ref. 44

1шт.

74

280371A2

LEVER

Rear, Used With 1957316C7, Ref. 44

1шт.

75

280372A1

LEVER

Rear, Used With 1957314C7, 1957315C7 or 1970516C7, Ref. 44

1шт.

75

280372A2

LEVER

Rear, Used With 1957314C8, 1957315C8 or 1970516C8, Ref. 44

1шт.

76

280370A2

LEVER

Front, Used With 1957316C6, 1957316C7, 1957314C7, 1957314C8, 1957315C7 or 1957315C8, 1970516C8, Ref. 44, Replaces: 280370A1

1шт.

77

280376A1

LEVER

Front, Used With 1970516C7 or 1970516C8, Ref. 44

1шт.

78

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Not Illustrated

3шт.

79

87418152

CONDUIT

Not Illustrated

1шт.
