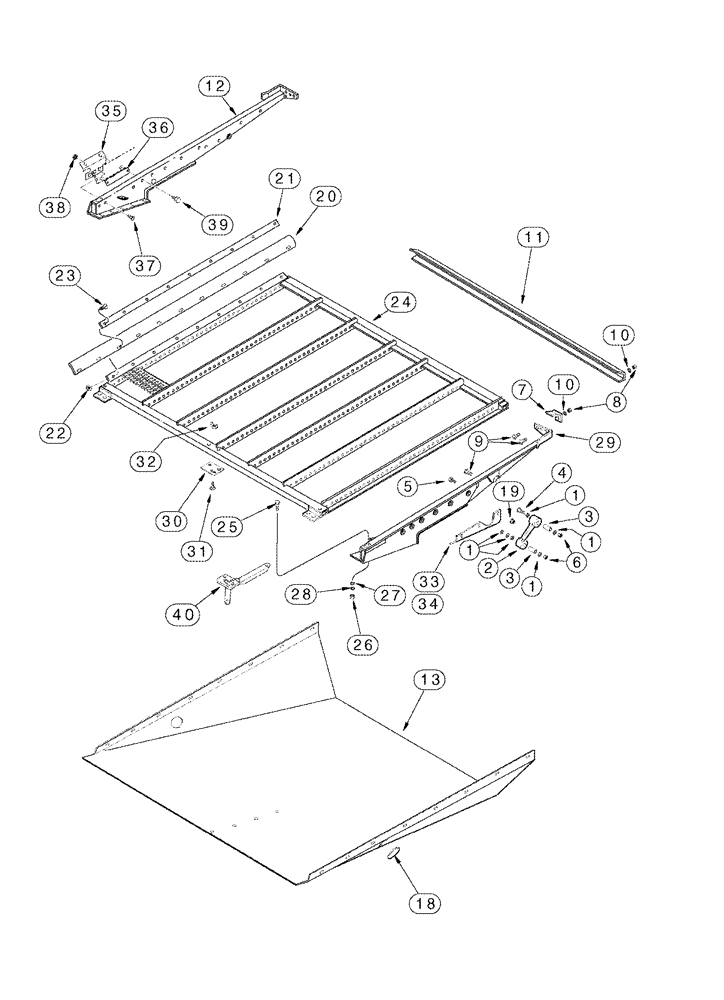

Запчасти Case IH 2366 (09B-18) - SIEVE, SHOE (14) - ROTOR, CONCANVES & SIEVE

1

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

12шт.

2

1957450C1

ARM

Inc. 3

2шт.

3

1330324C1

BUSHING

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

5/8 x 4

2шт.

5

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

5/8 x 5; 8

2шт.

6

232-41110

NUT,5/8"-11, GC

4шт.

7

182684C3

CLIP

2шт.

8

425-105

NUT,5/16"-18, G5

8шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

28шт.

10

492-11031

LOCK WASHER,5/16"

8шт.

11

1319238C1

ANGLE

1шт.

12

1979900C5

RAIL

Left Hand

1шт.

13

1979210C1

HOUSING

1шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4, Not Illustrated

2шт.

15

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Not Illustrated

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

2шт.

18

205-126

HOLE PLUG BUTTON,1 3/4"

1-3/4 ID

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

20

198925A1

SEAL,56mm W x 1790mm L

1790 mm (70-1/2 in.)

2шт.

21

1325325C1

RETAINER

2шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

23

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

18шт.

24

1325323C5

GRAIN SIEVE

Extended, 1-1/8, Serial Range: -JJC0253999

1шт.

24

1325323C6

GRAIN SIEVE

Extended, 1-1/8, Start Serial: JJC0254000

1шт.

24

1994961C4

GRAIN SIEVE

Extended, 1-5/8, Serial Range: -JJC0253999

1шт.

24

1994961C5

GRAIN SIEVE

Extended, 1-5/8, Start Serial: JJC0254000

1шт.

24

1970358C2

GRAIN SIEVE

Corn, With 18 mm Round Holes

1шт.

24

129935A1

GRAIN SIEVE

Corn, With 13 mm Round Holes

1шт.

24

129936A1

GRAIN SIEVE

Corn, With 10 mm Round Holes

1шт.

24

129937A1

GRAIN SIEVE

Corn, With 5 mm Round Holes

1шт.

24

129938A1

GRAIN SIEVE

Corn, With 2.5 mm Round Holes

1шт.

25

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

3/8 x 1; 5

2шт.

26

429-106

NUT,3/8"-16, G8

3/8; 8

2шт.

27

495-81129

WASHER,13/32" x 3/4" x .120"

13/32 x 3/4 x 7/64

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

1979901C5

RAIL

Right Hand

1шт.

30

186675C1

ADJUSTING PLATE

1шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

129-409

WING NUT,1/4"-20

2шт.

32

231-4144

NUT,1/4"-20, GB

1шт.

32a

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Not Illustrated

1шт.

33

1325320C1

SUPPORT ASSY.

Left Hand, Not Illustrated

1шт.

34

1325321C1

SUPPORT

Right Hand

1шт.

35

187187A1

PLATE

, Serial Range: -JJC0253999

2шт.

35

187187A2

PLATE

JJC0254000 to

2шт.

36

187204A1

BAR

Seal

2шт.

37

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

4шт.

38

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

39

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

40

303959A1

LEVER

1шт.

Used with 1325323C5, Ref. 24

1шт.

40

303959A2

LEVER

1шт.

Used with 1325323C6, Ref. 24

1шт.

40

303960A1

LEVER

1шт.

Used with 1994961C4, Ref. 24

1шт.

40

303960A2

LEVER

1шт.

Used with 1994961C5, Ref. 24

1шт.

41

205-126

HOLE PLUG BUTTON,1 3/4"

1-3/4, Not Illustrated

2шт.
