Запчасти Case IH 2366 (09B-12) - CONCAVES - ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

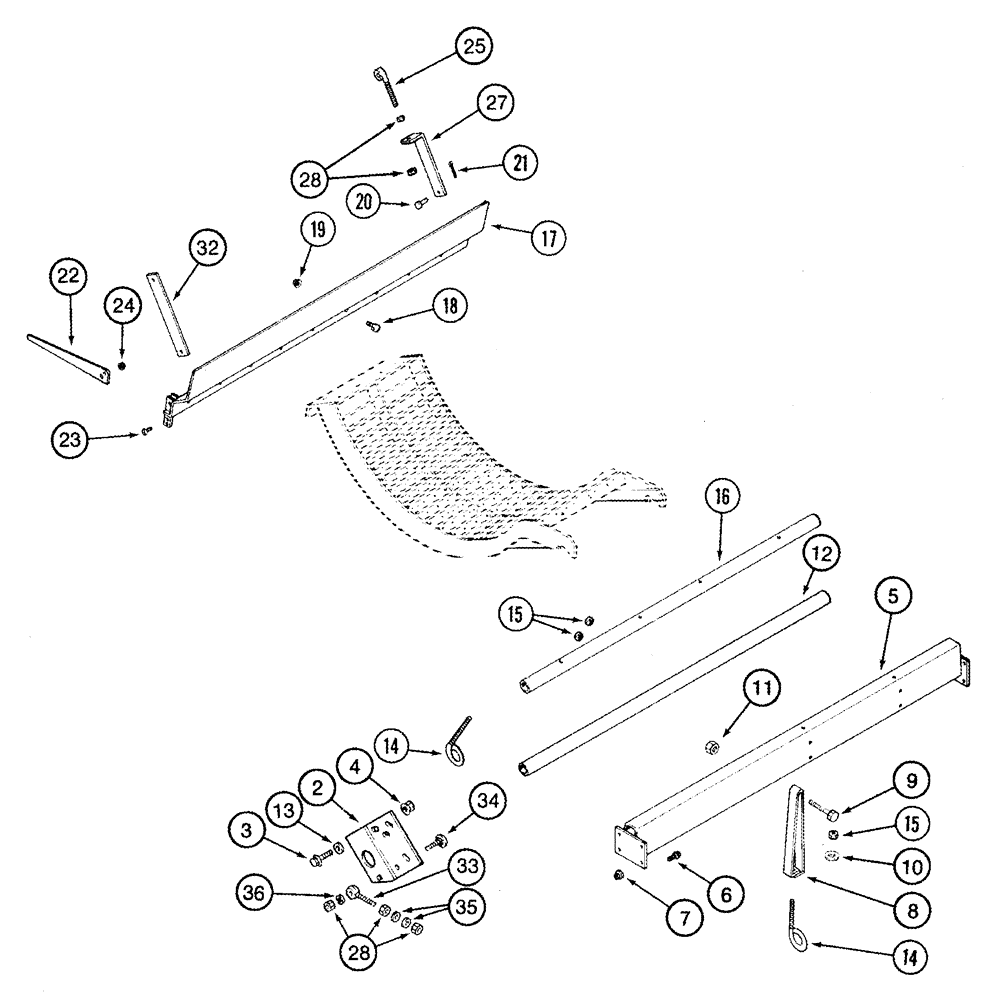

Схема запчастей Case IH 2366 - (09B-12) - CONCAVES - ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE
9
36
24
20
21
5
15
19
8
6
33
16
3
35
32
28
18
17
27
34
23
10
25
13
22
7
28
2
12
14
4
14
15
11

Артикул

Название

Примечание

Количество

1

1338040C2

SUPPORT

Rear, Not Illustrated

1шт.

2

1338039C2

SUPPORT

Front

1шт.

3

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

5/8 x 1-1/2

10шт.

4

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

5шт.

4

1338079C1

FLANGE NUT

5/8

5шт.

5

1317229C1

SUPPORT

RH

1шт.

6

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2 x 1-1/4

6шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

1317233C1

SUPPORT

2шт.

9

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

2шт.

11

232-4118

NUT,1/2"-13, GC

2шт.

12

282766A1

SHAFT

1шт.

13

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

10шт.

14

279088A1

EYEBOLT

BOLT, EYE

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

12шт.

16

279086A1

SHAFT

1шт.

17

1318433C3

SUPPORT

1шт.

18

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

3/8 x 1; 8

15шт.

19

231-5146

FLANGE NUT,3/8"-16

15шт.

20

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

1/2 x 1-7/16; 2

2шт.

21

432-1216

COTTER PIN,3/16" x 1"

2шт.

22

1317660C1

SUPPORT

1шт.

23

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

25

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

1шт.

27

1317349C1

SUPPORT

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

8шт.

32

1317388C1

BAR

1шт.

33

177662C2

EYEBOLT

2шт.

34

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2; 2

2шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

Выбрано товаров: 33
