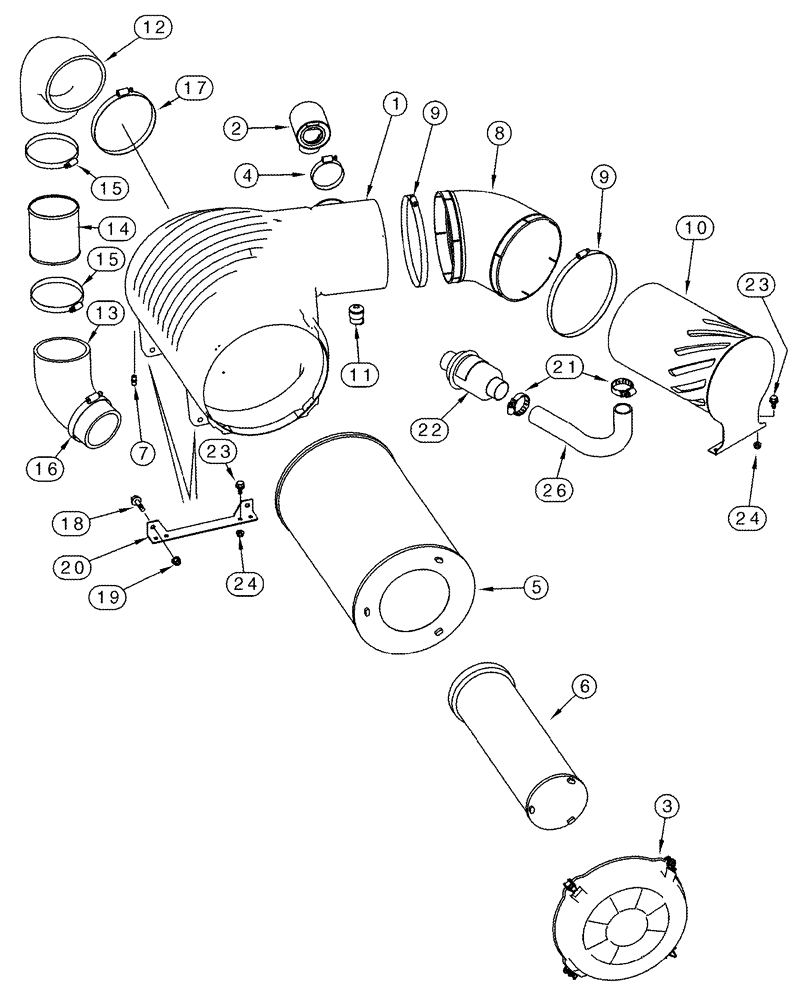

Запчасти Case IH 2366 (02-07[01]) - AIR CLEANER - AIR INDUCTION SYSTEM - BSN JJC0255700 (01) - ENGINE

275284A2

AIR CLEANER

Inc. 1 - 11

1шт.

1

243966A3

AIR CLEANER

Inc. 2 - 7

1шт.

2

249788A1

VALVE

1шт.

3

259988A1

FILTER COVER

1шт.

3a

371266A1

LATCH

Includes Hardware, Not Illustrated

1шт.

4

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

5

243968A1

ELEMENT

Primary

1шт.

6

243969A1

ELEMENT

Secondary

1шт.

7

D36264

FITTING

1шт.

8

259995A1

ELBOW

Intake

1шт.

9

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

2шт.

10

259993A1

PRECLEANER

1шт.

11

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

259351A1

HOSE ASSY.

Inc. 12 - 15

1шт.

12

277094A1

LARGE HOSE

HOSE,LARGE Turbo Inlet, Upper

1шт.

13

277095A1

LARGE HOSE

HOSE,LARGE Turbo Inlet, Lower

1шт.

14

277096A1

AIR INTAKE TUBE,125.5 mm ID, 130.6 mm OD, 139.7 mm Length

1шт.

15

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

2шт.

16

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

17

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

3/8 x 2

4шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

20

258967A1

SUPPORT

2шт.

21

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

22

245976A1

VENT

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

26

255062A2

HOSE

Precleaner To Check Valve, 290 mm (11-3/8 in.)

1шт.
