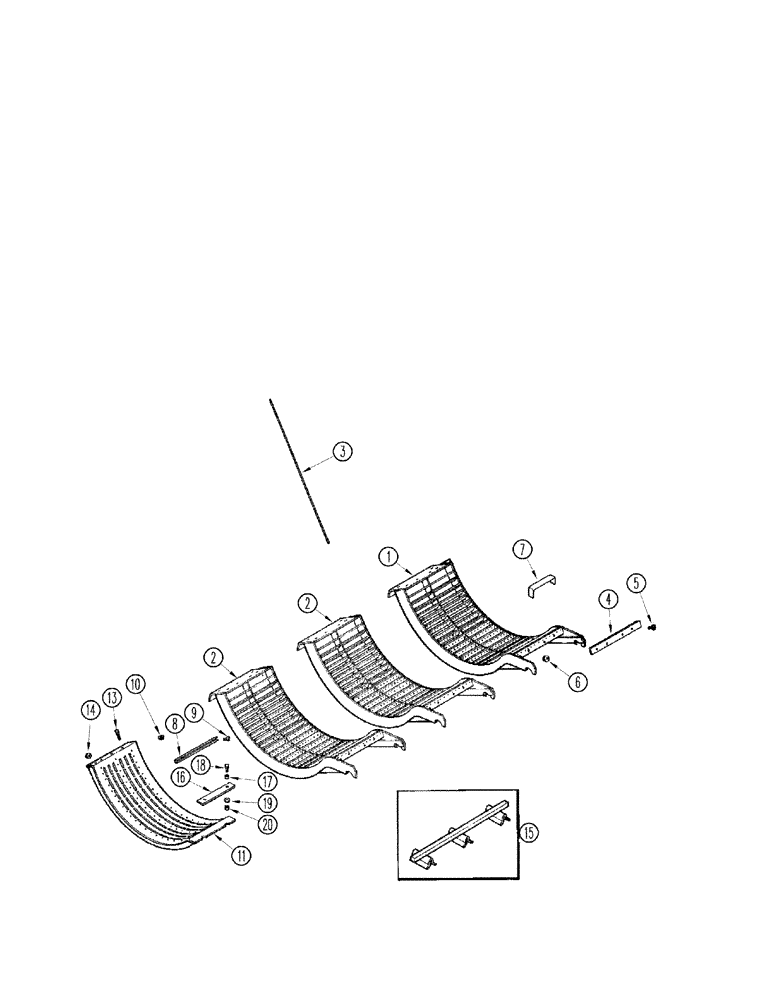

Запчасти Case IH 2366 (09B-11[02]) - CONCAVES - GRATES AND CONCAVES, ASN JJC0255000 (14) - ROTOR, CONCANVES & SIEVE

1

430960A1

CONCAVE

Front, Small Wire, Inc. 3 - 6

1шт.

With Heat Treatment

1шт.

1

430964A1

CONCAVE

Front, Large Wire, Inc. 3 - 6, Inc. Hardware

1шт.

Without Heat Treatment

1шт.

1

430966A1

CONCAVE

Front ASM, Large Wire, No. 2 and 3, Inc. 3 - 6

1шт.

With Heat Treatment

1шт.

2

430967A1

CONCAVE

No. 2 and 3, Large Wire, Inc. 3 - 6, Inc. Hardware

1шт.

Extended Wear Rice Combines

1шт.

With Heat Treatment

1шт.

2

430962A1

CONCAVE

No. 2 and 3, Small Wire, Inc. 3 - 6

2шт.

Grain Combine

1шт.

2

430965A1

CONCAVE

No. 2 and 3, Large Wire, Inc. 3 - 6

1шт.

Grain Combine

1шт.

Without Heat Treatment

1шт.

3

431018A1

WIRE

844mm L x 4.76mm Dia, Small

30шт.

3

431019A1

WIRE

844mm L x 6.35mm Dia, Large

14шт.

4

193859C1

PLATE

Retainer

2шт.

5

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3/8 x 1

8шт.

6

231-5146

FLANGE NUT,3/8"-16

8шт.

7

1309425C1

CHANNEL

Small Wire

6шт.

7

1309424C1

CHANNEL

Large Wire

6шт.

8

191536C1

CHANNEL

1шт.

Used with 191538C3, REF 11

1шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

11

191538C3

GRATE ASSY.

Slotted

1шт.

11

1302562C1

CONCAVE

Keystock

1шт.

11

1319750C1

GRATE

Smooth, Sunflower Seed

1шт.

12

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

3/8 x 1; 8, Not Illustrated

1шт.

13

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4; 8

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

1324046C3

BAR

Small Wire, Interrupter

1шт.

16

186784C2

BAR

Grate Hanger

3шт.

17

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

18

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

20

232-4118

NUT,1/2"-13, GC

6шт.
