(09B-10[01]) - VANE - EXTENDED WEAR RICE MACHINES

Запчасти Case IH 2366 (09B-10[01]) - VANE - EXTENDED WEAR RICE MACHINES (14) - ROTOR, CONCANVES & SIEVE

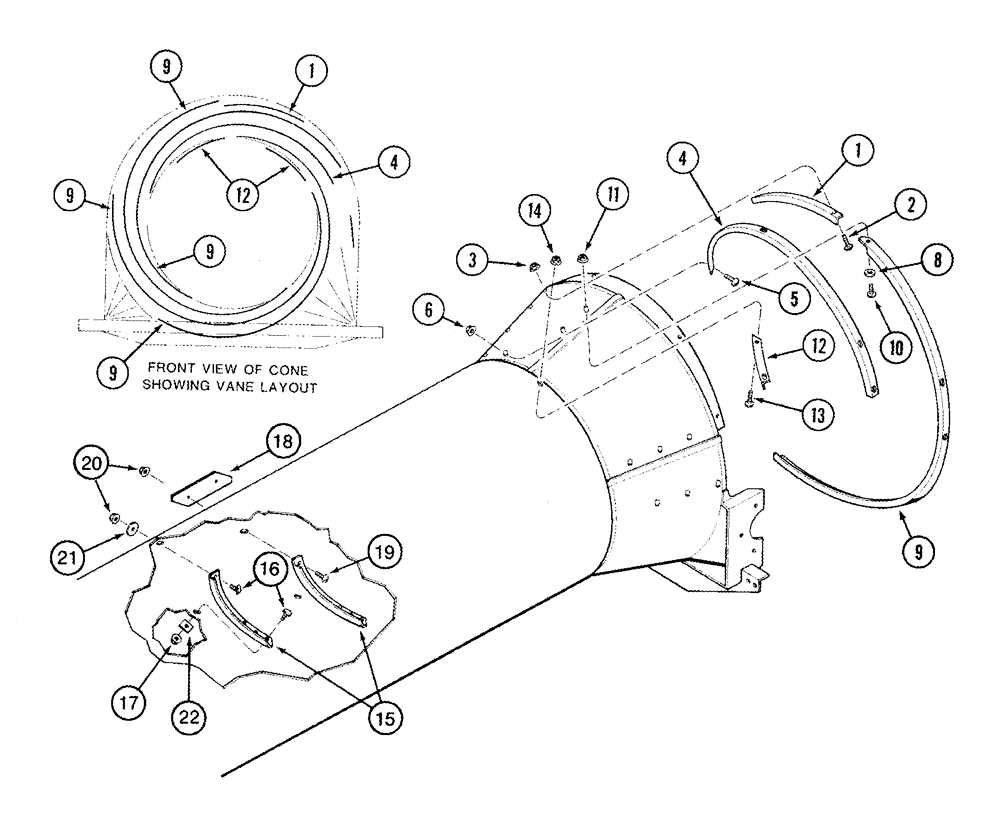

Схема запчастей Case IH 2366 - (09B-10[01]) - VANE - EXTENDED WEAR RICE MACHINES (14) - ROTOR, CONCANVES & SIEVE
4
19
15
12
14
22
17
16
1
21
13
9
9
12
1
9
11
5
9
10
18
6
8
20
2
9
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

249252A2

VANE

Vane, Cone Extension

2шт.

2

280994A1

BOLT

1 in.

4шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

4

249257A2

VANE

Vane, Cone, Upper Front

1шт.

5

280994A1

BOLT

1 in.

5шт.

6

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

8

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

9

249254A2

VANE

Vane, Cone, Front

4шт.

10

433734A1

BOLT

'T', 1-1/8

31шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

31шт.

300367A2

HOUSING ASSY.

Inc. 1, 4, 9, Also Inc. 249250A1, See Figure 09B-07, Ref. 6B, Also Incl. Hardware 433734A1, 231-5346

1шт.

365928A2

CONE

Heavy Duty, Inc. 1, 4, 9, Also Inc. 373271A1, See Figure 09B-07, Ref. 6C, Also Inc. Hardware 433734A1, 231-5346

1шт.

12

193179C2

VANE

Vane, Transport Extension

3шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

15

86992398

VANE

Vane, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

Tee

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318418C1

BAR

6шт.

19

280994A1

BOLT

1 in.

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32 x 2-1/2 x 5/32

10шт.

22

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32 x 1-1/2 x 3/16

2шт.
