Запчасти Case IH 2366 (09B-08) - CAGE - FRONT (14) - ROTOR, CONCANVES & SIEVE

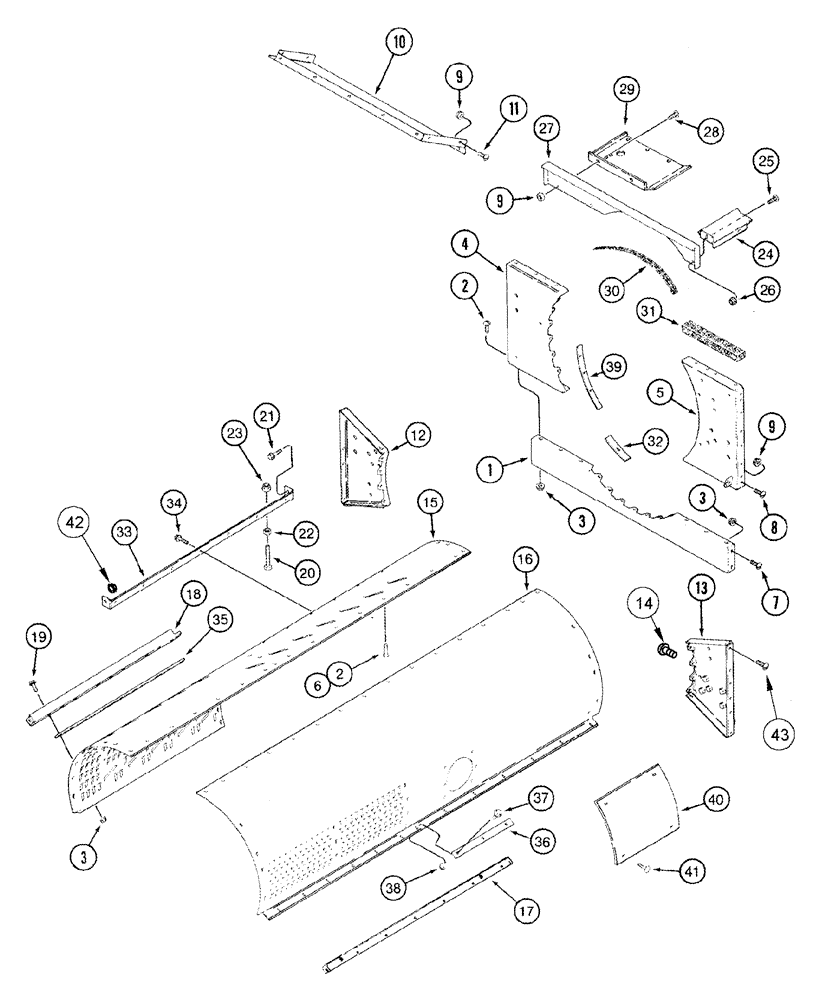

Схема запчастей Case IH 2366 - (09B-08) - CAGE - FRONT (14) - ROTOR, CONCANVES & SIEVE
35
3
11
13
33
19
15
43
3
12
36
24
32
14
39
34
2
16
38
30
21
28
26
1
5
20
18
9
25
17
3
10
22
9
23
40
6
9
8
27
4
31
41
7
2
42
37
29

Артикул

Название

Примечание

Количество

1

192297C2

SUPPORT

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

2

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1994848C1

SUPPORT

Left Hand Front

1шт.

5

1338045C3

SUPPORT

Right Hand Front

1шт.

6

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

6шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

176195A1

SUPPORT

Front

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

12

1338056C1

SUPPORT

Left Hand, Intermediate

2шт.

13

1338044C1

SUPPORT

Right Hand, Intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

12шт.

15

1318829C2

CAGE

Rotor, Left Hand

1шт.

16

1318419C3

CAGE

Rotor, Right Hand

1шт.

17

188333C1

SUPPORT

Cage, Right Hand

1шт.

18

185386C1

SUPPORT

Cage, Left Hand

1шт.

19

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

3/8 x 1

15шт.

20

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

1/2 x 3-1/2

2шт.

21

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1, With Scotch Grip

4шт.

22

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

24

193862C1

SUPPORT

1шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

26

488837C1

SPRING NUT

5/16

2шт.

27

186169C1

SUPPORT

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

28

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

29

186168C4

SHEET

1шт.

30

191498C1

SEALING STRIP

528 mm (20-13/16 in.)

1шт.

31

318103R2

SEAL

243 mm (9-1/2 in.), Cut From 73220C1

2шт.

32

186797C2

SUPPORT

1шт.

33

1309191C2

SUPPORT

Left Hand

1шт.

34

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

3/8 x 1

5шт.

34

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

35

183323C1

STRAP

1шт.

36

186785C2

REINFORCEMENT

1шт.

37

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

39

1318899C1

SUPPORT

Left Hand Front

1шт.

40

1979540C1

COVER

Upper Right Hand

2шт.

41

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

8шт.

42

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

43

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4; 8

6шт.

Выбрано товаров: 46
