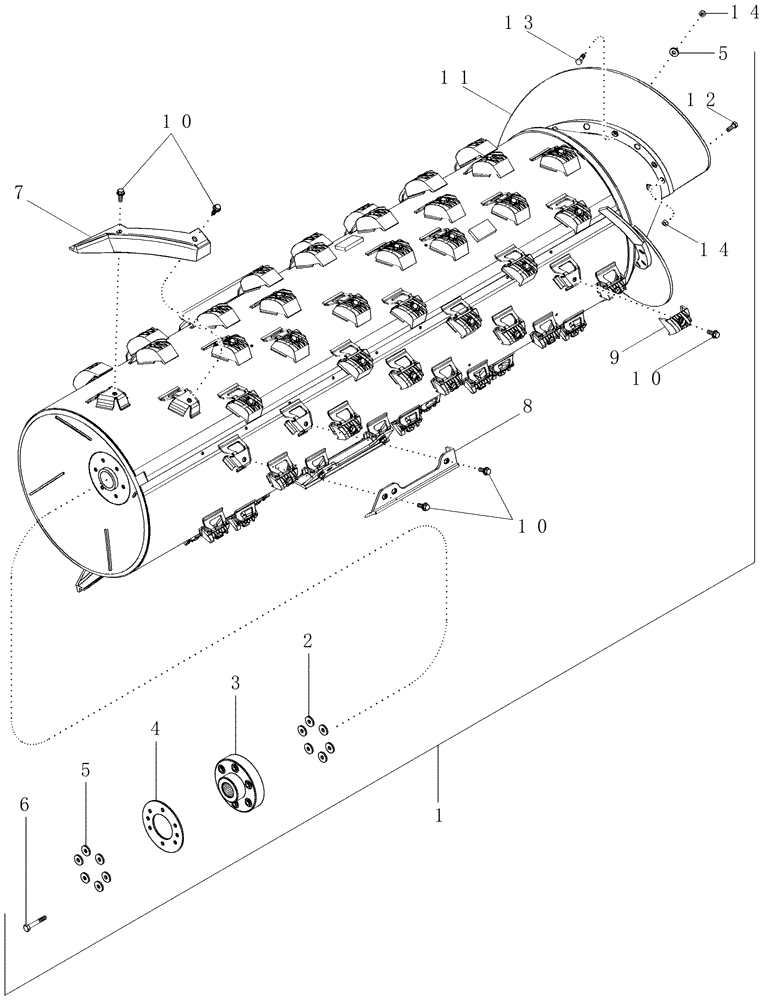

Запчасти Case IH 2366 (09B-06A) - ROTOR ASSY - SPECIALTY AFX (14) - ROTOR, CONCANVES & SIEVE

86992118

ROTOR

ASSY, AFX Speciality Corn, Standard Wear, Inc. 1 - 14

1шт.

87307855

ROTOR

ASSY, AFX Speciality Grain,Standard Wear, Inc. 1 - 14

1шт.

86992119

ROTOR

ASSY, AFX Speciality Grain, Extended Wear, Inc. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR ASSY, With Supports and Nuts

1шт.

2

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

3

1345307C1

COUPLING

Rotor Drive, Inc. 3A

1шт.

3a

1345453C1

RUBBER INSULATOR

Not Illustrated

6шт.

4

87363446

PLATE

Rotor Load Ring

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

18шт.

6

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

7

1317690C1

ANGLE

Helical Kicker, Standard Wear

2шт.

7

86992049

BAR

ANGLE, Helical Kicker, Extended Wear

3шт.

8

1318976C2

BAR,Straight Seperator

Straight Separator, Standard Wear

8шт.

8

86992047

BAR

Straight Separator, Extended Wear

4шт.

9

1309336C2

RASP BAR

Without Rear Spike, Standard Wear

62шт.

9

278821A2

RASP BAR

Without Spike, Extended Wear

70шт.

9

278820A4

RASP BAR

With Spike, Extended Wear, Rice

1шт.

10

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

82шт.

11

NSS

NOT SOLD SEPARAT

FLIGHT, Inlet

2шт.

87308133

PACKAGE

AFX Rotor Inlet Flight with Extensions, Inc. 11-14

1шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

14

199528A1

NUT

16шт.
