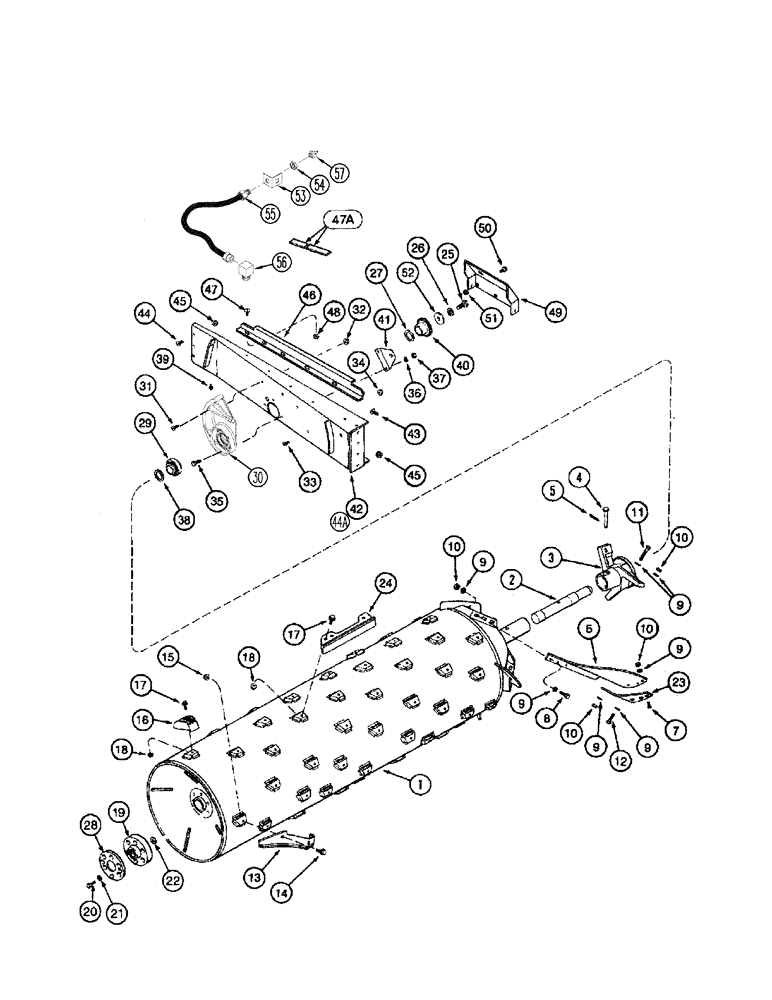

Запчасти Case IH 2366 (09B-06) - ROTOR ASSY - SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

256600A3

ROTOR

Grain, Inc. 1 - 28

1шт.

Without Spiked Bars

1шт.

256604A3

ROTOR

Rice, Inc. 1 - 28

1шт.

With Spiked Bars

1шт.

256601A1

ROTOR

Corn, Inc. 1 - 28

1шт.

Without Spiked Bars

1шт.

256606A3

ROTOR

Grain, Inc. 1 - 28

1шт.

With Chrome Bars

1шт.

352537A2

ROTOR ASSY.

Rice, Inc. 1 - 28

1шт.

Extended Wear Rice Combines

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

2

191545C2

SHAFT

1шт.

3

191546C2

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

NSS

NOT SOLD SEPARAT

BLADE Rotor

1шт.

1957446C3

SET OF BLADES

Rotor Blade, Inc. 6 - 12

1шт.

6

432-1620

3шт.

2352721R92

PACKAGE

Rotor Hardware, Inc. 7 - 12

1шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

1/2 x 1-1/2

9шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

39шт.

10

199528A1

NUT

1/2; 8

24шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

13

1317690C1

ANGLE

Helical Kicker, Used With 256600A3, 256601A1, 256604A3, 352537A2

3шт.

13

1968967C2

BAR

Chrome, Used With 256606A3

3шт.

14

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4; 8

6шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

6шт.

16

1309175C2

RASP BAR

Rice, With Spike, Used With 256604A3, Serial Range: -JJC0254999

54шт.

16

1309175C3

RASP BAR

Grain, With Spike, Used With 256600A3 & 256601A1, Start Serial: JJC0255000

54шт.

16

1309336C2

RASP BAR

Grain, Without Spike, Used With 256600A3 & 256601A1

1шт.

16

278821A2

RASP BAR

Chrome, Grain, Without Spike, Used Wth 256606A3, Replaces: 1968743C2

48шт.

16

1309336C1

BAR

Corn, Without Spike, Used With 256600A3 & 256601A1

1шт.

16

278820A3

BAR

Without Spike, Used With 352537A2, Serial Range: -JJC0254999

54шт.

Extended Wear Rice Combines

1шт.

16

278820A4

RASP BAR

Chrome, With Spike, Used With 352537A2, Start Serial: JJC0255000

54шт.

Extended Wear Rice Combines

1шт.

16

111709A1

RASP BAR

Smooth, Optional

1шт.

17

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4; 8

1шт.

18

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

1шт.

19

1345307C1

COUPLING

1шт.

20

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

21

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

6шт.

22

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

23

1309185C4

SUPPORT

Chrome

3шт.

24

1318976C2

BAR,Straight Seperator

Used With 256600A1, 256601A1

3-6шт.

24

1968969C3

BAR

Chrome, Used With 256606A1

3шт.

25

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

3/4 x 1-3/4; 2

1шт.

26

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

27

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2-1/32 x 2-3/4 x 1/16

1шт.

28

221189A1

SPACER

1шт.

28a

1345453C1

RUBBER INSULATOR

Insulator Rotor Drive Hub (6), Not Illustrated

1шт.

29

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

30

253439A3

BEARING HOUSING

Replaces 1309076C1

1шт.

31

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

37

425-108

NUT,1/2" - 13, Gr 5

3шт.

38

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

1шт.

39

219-87

LUBE NIPPLE,1/4" - 28 NPTF

, Serial Range: -JJC0254999

1шт.

40

1979965C1

ROTOR

1шт.

41

1301239C1

BRACKET

1шт.

42

193163C8

SUPPORT

1шт.

42a

249248A1

SUPPORT

1шт.

Extended Wear Rice Combines

1шт.

43

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

4шт.

44

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

46

231850A1

BAR

1шт.

47

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

47a

231851A1

DOOR SEAL,828mm L

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

49

182845C5

SHIELD

1шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

51

131-872

SPRING NUT,Ret, 3/8"-16

3/8

3шт.

52

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32 x 2-1/2 x 1/4

1шт.

53

419744A1

BRACKET

1шт.

54

F53473

LOCK NUT,1/8-27 NPSM

1/8

1шт.

55

431729A1

HOSE

Grease, 597 mm (23-1/2 in)

1шт.

56

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

57

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
