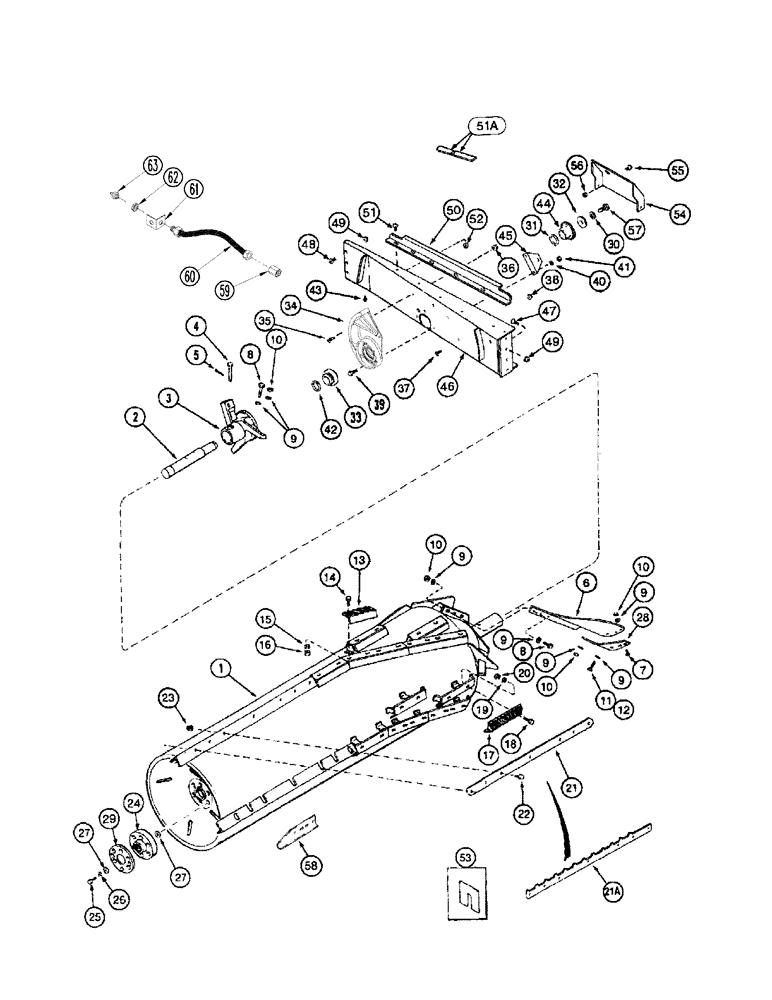

Запчасти Case IH 2366 (09B-05) - ROTOR ASSY - CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
256598A1
ROTOR
Standard Grain, Inc. 1 - 29
1шт.
256605A1
ROTOR
Standard Grain, Close Tolerance, Inc. 1 - 29
1шт.
With Chrome Bars
1шт.
1
NSS
NOT SOLD SEPARAT
ROTOR
1шт.
2
191545C2
SHAFT
1шт.
3
191546C2
IMPELLER
1шт.
4
439-51272
HEADED PIN,3/4" x 4 1/2", G5
1шт.
5
432-1620
COTTER PIN,1/4" x 1 1/4"
1шт.
1957446C3
SET OF BLADES
Rotor Blade, Inc. 6 - 12
1шт.
6
NSS
NOT SOLD SEPARAT
BLADE Rotor
3шт.
2352721R92
PACKAGE
Blade Hardware, Inc. 7 - 12
1шт.
7
361-45024
HEX SOC SCREW,1/2" - 13 x 1-1/2"
1/2 x 1-1/2
9шт.
8
326-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
9шт.
9
396-41053
WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk
17/32 x 1-1/4 x 3/16
39шт.
10
199528A1
NUT
1/2; 8
24шт.
11
326-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
3шт.
13
1308829C2
BAR
12шт.
Used with 256598A1
1шт.
13
1324583C3
BAR
Chrome
12шт.
Used with 256605A1
1шт.
14
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
24шт.
15
496-41041
WASHER,13/32" x 1 1/8" x .134"
24шт.
16
232-4136
LOCK NUT,3/8"-16, GC
24шт.
17
1308668C1
RASP BAR
9шт.
Used with 256598A1
1шт.
17
1324582C2
RASP BAR
Chrome
9шт.
Used with 256605A1
1шт.
18
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
18шт.
19
496-41041
WASHER,13/32" x 1 1/8" x .134"
18шт.
20
232-4136
LOCK NUT,3/8"-16, GC
18шт.
Used with 256598A1
1шт.
21
1324580C2
BAR
Chrome
3шт.
Used with 256605A1
1шт.
21a
1302103C3
BAR
With Teeth, Optional, Purchase Separately
3шт.
22
409-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl
21шт.
23
231-5146
FLANGE NUT,3/8"-16
21шт.
24
1345307C1
COUPLING
1шт.
25
326-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8
6шт.
26
396-41053
WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk
17/32 x 1-1/4 x 3/16
6шт.
27
195-81030
WASHER
17/32 x 1-1/2 x 3/16
6шт.
28
183253C4
BAR
3шт.
28
1309185C3
BAR
Chrome
3шт.
29
221189A1
SPACER
1шт.
30
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
31
495-81097
WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk
2-1/32 x 2-3/4 x 1/16
1шт.
32
70330C1
WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk
25/32 x 2-1/2 x 1/4
1шт.
33
193282C91
BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm
1шт.
34
253439A3
BEARING HOUSING
Replaces 1309076C1
1шт.
35
477-73820
SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"
3/8 x 1-1/4
2шт.
36
231-5146
FLANGE NUT,3/8"-16
2шт.
38
231-5146
FLANGE NUT,3/8"-16
2шт.
39
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
3шт.
40
80679
LOCK WASHER,1/20.507 CST ZND
3шт.
41
425-108
NUT,1/2" - 13, Gr 5
3шт.
42
183449C1
WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk
1шт.
43
219-87
LUBE NIPPLE,1/4" - 28 NPTF
, Serial Range: -JJC0254999
1шт.
44
1979965C1
ROTOR
Rotor
1шт.
45
1301239C1
BRACKET
1шт.
46
193163C8
SUPPORT
1шт.
47
409-7816
BOLT,Hex Flg, 1/2" - 13 x 1", Spcl
1/2 x 1
4шт.
48
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
3шт.
49
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
7шт.
50
231850A1
BAR
1шт.
51
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
1шт.
51a
231851A1
DOOR SEAL,828mm L
1шт.
52
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
1324208C1
SHIM KIT
Inc. 53
1шт.
53
NSS
NOT SOLD SEPARAT
SHIM 0.010
28шт.
53
NSS
NOT SOLD SEPARAT
SHIM 0.030
28шт.
53
NSS
NOT SOLD SEPARAT
SHIM 0.053
28шт.
53
NSS
NOT SOLD SEPARAT
SHIM 0.093
28шт.
54
182845C5
SHIELD
1шт.
55
409-7612
BOLT,3/8"-16 x 1.09" OAL
3шт.
56
131-872
SPRING NUT,Ret, 3/8"-16
3/8
3шт.
57
424-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2
3/4 x 1-3/4; 2
1шт.
58
183335C3
SUPPORT
Rotor Rear Bar
3шт.
59
219-418
ADAPTER,1/4"-1/8 NPTF
, Start Serial: JJC0255000
1шт.
60
431729A1
HOSE
Grease, 597 mm (23-1/2 in), Start Serial: JJC0255000
1шт.
61
419744A1
BRACKET
, Start Serial: JJC0255000
1шт.
62
F53473
LOCK NUT,1/8-27 NPSM
1/8, Start Serial: JJC0255000
1шт.
63
219-8
LUBE NIPPLE,1/4" - 28 NPTF
, Start Serial: JJC0255000
1шт.
Выбрано товаров: 84
