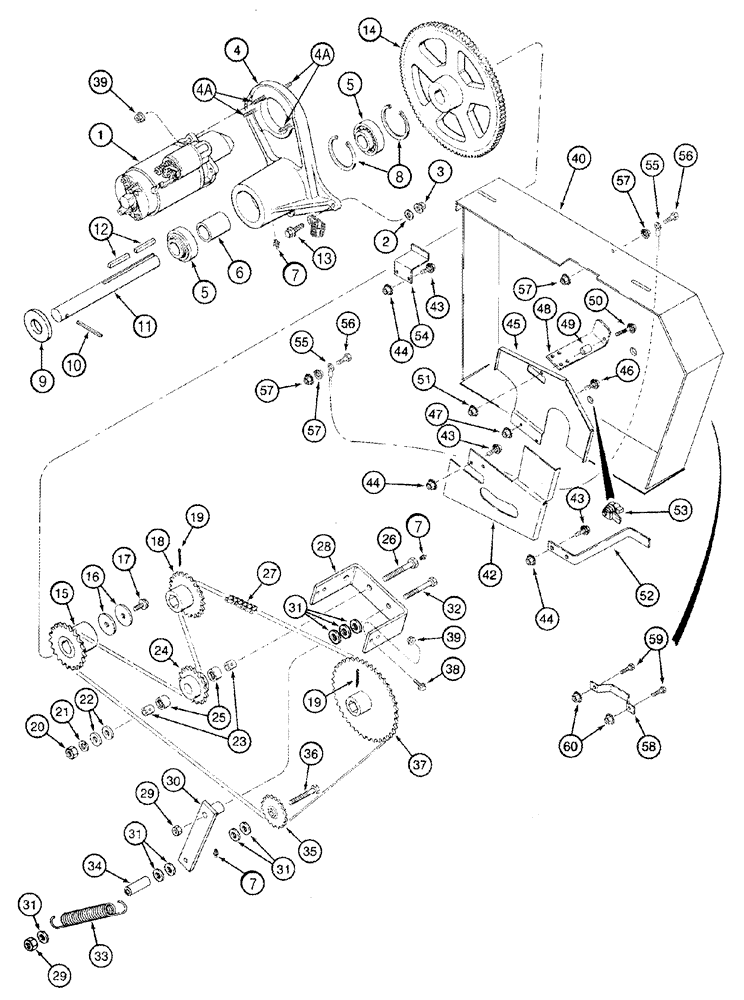

Запчасти Case IH 2366 (09A-25) - FEEDER REVERSER, WITH ROCK TRAP - BSN JJC0253999 (13) - FEEDER

1

245927C93

STARTING MOTOR

Feeder Reverser, See Figure 04-42

1шт.

1

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

2

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

2шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

2шт.

176110A2

HOUSING

Inc. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4a

121299A1

STUD

3шт.

5

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

2шт.

6

1321523C1

SPACER

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

8

100-21315

SNAP RING,3.156", Int, #315

2шт.

9

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

39 x 78 x 7 mm

1шт.

10

38-33248

PIN,1/2" x 3", Coiled

1/2" x 3", Coiled

1шт.

11

1321534C1

SHAFT

1шт.

12

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

13

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

14

1321537C92

PINION,320mm OD, W/ Ring Gear

1шт.

15

1329717C1

SPROCKET

20T

1шт.

16

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

17/32 x 2 x 7/64

2шт.

17

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

1шт.

18

1329719C2

SPROCKET

20T

1шт.

18

125407A1

SPROCKET

30T

1шт.

19

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

20

425-1012

NUT,3/4"-10, G5

1шт.

21

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

2шт.

23

1327991C1

BUSHING,19.04mm ID x 25.37mm OD x 25.65mm L

2шт.

24

1321531C93

SPROCKET

Inc. 25

1шт.

25

630836C91

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 20.62mm W

1-19/64 OD

2шт.

26

1327990C1

BOLT,Hex, 3/4" - 10 x 4, Type 5, Drilled

1шт.

27

1321529C95

CHAIN,#60, 118 Links x 19.05mm = 2247.9mm

118 links, 88-1/2 in.

1шт.

111714A1

LINK,Connecting

Connecting Link

1шт.

111716A1

CHAIN,#60, 3 Links x 19.05mm = 57.15mm

Link Extension, 2-1/4

1шт.

28

1321528C2

SUPPORT

1шт.

29

231-41110

LOCK NUT,5/8"-11, GB

1шт.

30

1321933C3

SUPPORT

1шт.

31

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

32

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4

1шт.

33

1330032C1

SPRING

1шт.

34

187217C1

SPACER,7/8" Tube x 1 13/16"

1шт.

35

541857R92

SPROCKET,15T

15T

1шт.

36

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

37

1329720C2

SPROCKET

40T

1шт.

38

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

39

231-5146

FLANGE NUT,3/8"-16

1шт.

40

130413A8

SHIELD

1шт.

42

138181A2

GUARD

Lower

1шт.

43

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

44

231-5146

FLANGE NUT,3/8"-16

6шт.

45

138182A1

GUARD

Upper

1шт.

46

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

48

138185A3

SUPPORT

Upper

1шт.

49

61851V

SPACER,1/4" Pipe x 3/4"

1шт.

50

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

1шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

52

142515A1

SUPPORT

Lower Front

1шт.

53

138699A1

LOCK

1шт.

53

135476A1

LOCK

Australia Only

1шт.

54

132686A3

SUPPORT

Upper Rear

1шт.

55

132657A2

CABLE

1шт.

56

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

57

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

58

160638C2

HANDLE

1шт.

59

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
