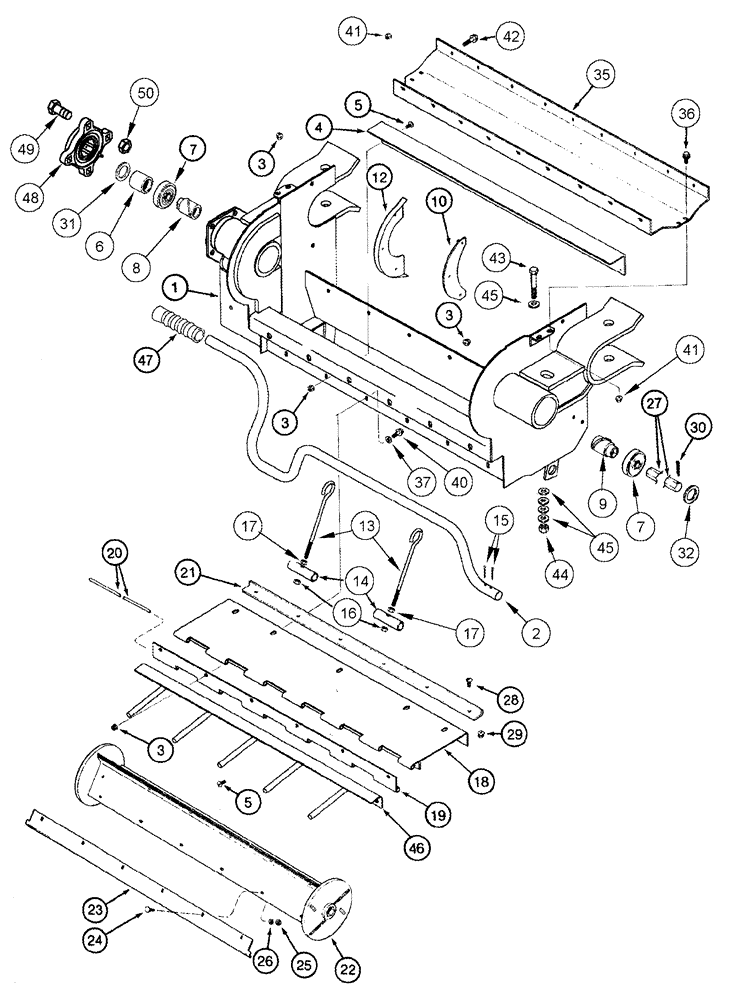

Запчасти Case IH 2366 (09A-24) - ROCK TRAP - ASN JJC0254000 (13) - FEEDER

389728A1

STONE TRAP

Rock Trap, Inc. 1 - 32

1шт.

1

389727A1

HOUSING

1шт.

2

241653A1

STEM

Door Latch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

4

1320279C1

ANGLE

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

6

389705A1

SPACER

1-13/16 x 2-1/4 x 3-5/64

1шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

2шт.

8

390631A1

SPACER

LH

1шт.

9

390632A1

SPACER

RH

1шт.

10

1320254C1

PLATE

2шт.

12

195202C1

SEAL

2шт.

13

131950A1

STEM

2шт.

14

131964A1

TUBE,19.05 mm ID, 25.4 mm OD, 90 mm Length

Pivot

2шт.

15

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

16

231-4146

NUT,3/8"-16, GB

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

241640A2

TRAP DOOR

Inc. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR

1шт.

19

1320154C1

HINGE

1шт.

20

1320149C1

ROD

1шт.

21

1324880C2

ANGLE

1шт.

22

1319834C2

DRUM

1шт.

23

1324438C1

SUPPORT

3шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2

15шт.

25

425-106

NUT,3/8"-16, Cl 5

15шт.

26

492-11038

LOCK WASHER,3/8"

15шт.

27

389021A1

BAR

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

5шт.

29

231-5146

FLANGE NUT,3/8"-16

5шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

31

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1-3/4 x 2-1/2 x 1/8

2шт.

32

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1-3/4 x 2-1/2 x 1/8

1шт.

35

1327925C4

COVER ASSY

1шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

37

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

40

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

41

231-5146

FLANGE NUT,3/8"-16

14шт.

41

1306680C1

FLANGE NUT

3/8

4шт.

42

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

42

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

43

326-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 8

2шт.

44

231-42116

LOCK NUT,1"-8, GB

1 in.

2шт.

45

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

10шт.

46

1320846C1

SUPPORT ASSY.

1шт.

47

283483A1

GRIP

1шт.

48

389588A1

BEARING ASSY,30.84 mm

1шт.

49

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

1/2 x 1-1/2

4шт.

50

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
