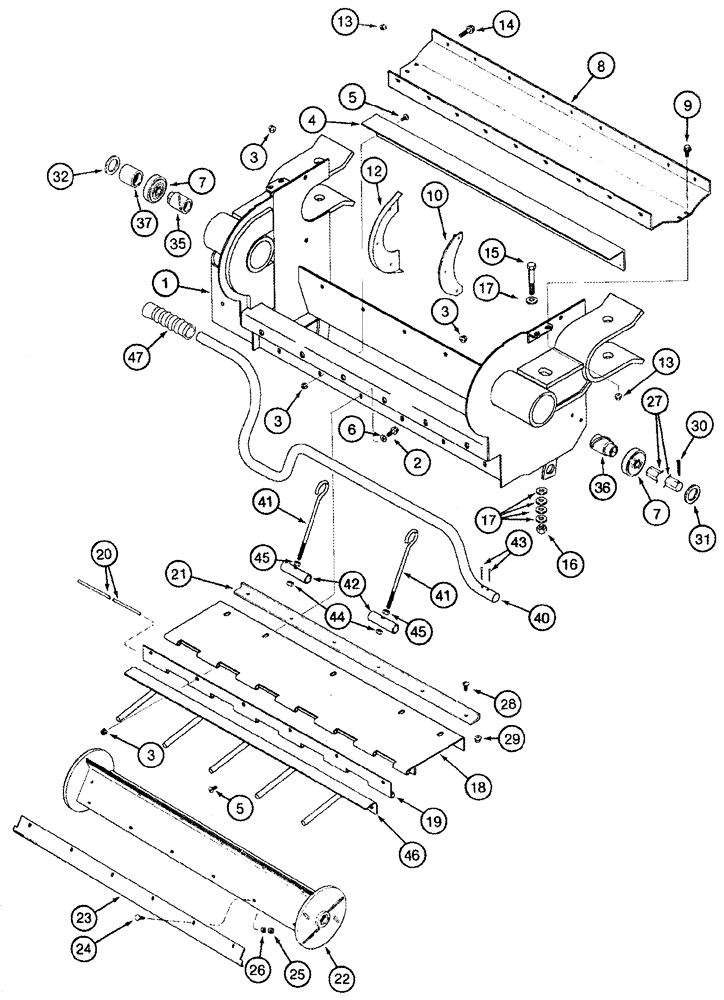

Запчасти Case IH 2366 (09A-23) - ROCK TRAP - BSN JJC0253999 (13) - FEEDER

242225A3

STONE TRAP

Rock Trap, Inc. 1 - 47, Serial Range: -JJC0253595

1шт.

242225A4

STONE TRAP

Rock Trap, Inc. 1 - 47, Start Serial: JJC0253596

1шт.

1

241636A3

HOUSING

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

4

1320279C1

ANGLE

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

2шт.

8

1327925C4

COVER ASSY

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

1320254C1

PLATE

2шт.

12

195202C1

SEAL

2шт.

13

231-5146

FLANGE NUT,3/8"-16

16шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

7шт.

15

326-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

2шт.

16

232-41316

NUT,1"-8, GC

2шт.

17

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

10шт.

241640A1

TRAP DOOR

Inc. 18 - 20, Serial Range: -JJC0253595

1шт.

241640A2

TRAP DOOR

Inc. 18 - 20, Start Serial: JJC0253596

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR

1шт.

19

1320154C1

HINGE

1шт.

20

1320149C1

ROD

1шт.

21

1324880C2

ANGLE

1шт.

22

1319834C2

DRUM

1шт.

23

1324438C1

SUPPORT

3шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2

15шт.

25

425-106

NUT,3/8"-16, Cl 5

15шт.

26

492-11038

LOCK WASHER,3/8"

15шт.

27

1327502C1

SHAFT

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

5шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

31

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1-25/32 x 2-1/2 x 3/64

1шт.

32

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1-3/4 x 2-1/2 x 1/8

1шт.

35

1320268C1

SPACER

Left Hand

1шт.

36

1320269C1

SPACER

Right Hand

1шт.

37

162172C1

SPACER

1-13/16 x 2-1/4 x 1-15/16

1шт.

40

241653A1

STEM

Door Latch

1шт.

41

131950A1

STEM

2шт.

42

131964A1

TUBE,19.05 mm ID, 25.4 mm OD, 90 mm Length

Pivot

2шт.

43

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

44

231-4146

NUT,3/8"-16, GB

2шт.

45

425-106

NUT,3/8"-16, Cl 5

2шт.

46

1320846C1

SUPPORT ASSY.

1шт.

47

283483A1

GRIP

1шт.
