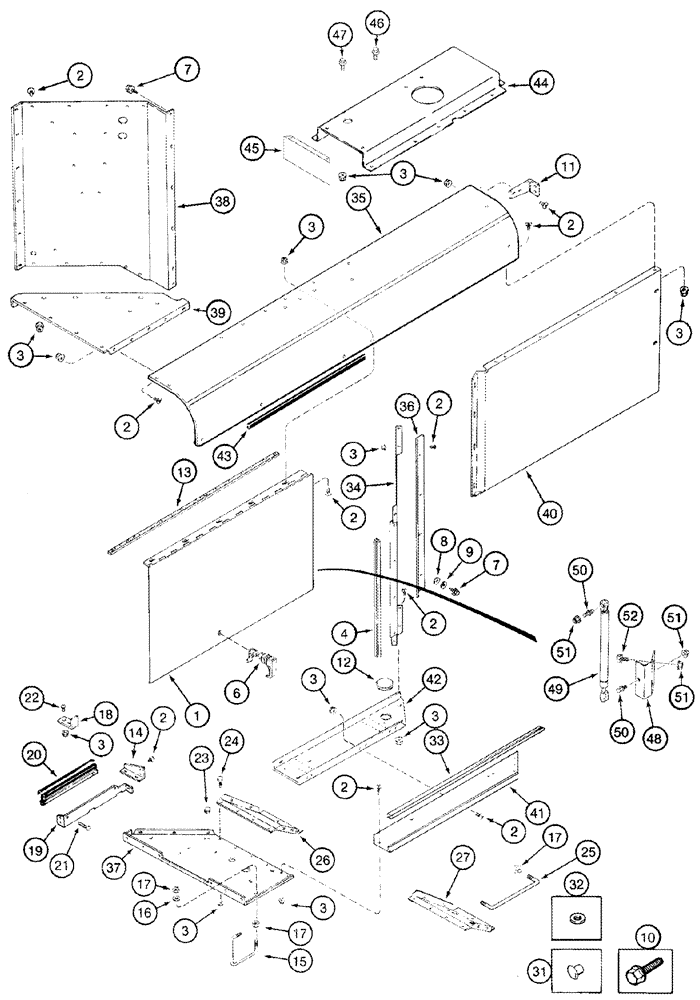

Запчасти Case IH 2366 (02-06[01]) - ROTARY AIR SCREEN CHUTE - BSN JJC0255700 (01) - ENGINE

1

275780A1

TRAP DOOR

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

57шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

89шт.

4

1347460C1

DOOR SEAL,648mm L

648 mm (25-1/8")

2шт.

6

1302494C2

LATCH

1шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

20шт.

8

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

9

492-11031

LOCK WASHER,5/16"

5шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

13шт.

11

1317704C1

SUPPORT

1шт.

12

1302758C1

PLUG

89 mm OD

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL, 953 mm (37-1/2), cut from 1338148CX

1шт.

14

1968548C1

SUPPORT

1шт.

15

1979918C1

HANDLE

1шт.

16

495-81024

WASHER,17/32" x 1 1/4" x .060"

17/32 x 1-1/4 x 1/16

1шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

18

1347430C1

SUPPORT

1шт.

19

1968546C2

SUPPORT

1шт.

20

1338012C1

BRUSH, COMMUTATOR

BRUSH

1шт.

21

151-507

RIVET,Pop, 1/8" x .575"

1/8 x 1/2

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

23

1970461C1

GROMMET

1-3/8 x 2 x 5/16

2шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

25

182995A1

BAR

1шт.

26

1315674C2

SUPPORT

1шт.

27

1979728C2

SUPPORT

1шт.

31

205-77

HOLE PLUG BUTTON,11/32"

11/32 ID

2шт.

32

95-21044

WASHER,3/8"

7/16 x 1 x 5/64

2шт.

33

221469A1

DOOR SEAL

40-1/4 inch (1022 mm), Long, Cut From 1319691C1

1шт.

34

195083A4

DEFLECTOR

1шт.

35

195080A5

GUIDE

1шт.

36

195084A2

ANGLE BAR

Deflector

1шт.

37

433707A1

SHEET

Lower Rear

1шт.

38

259844A1

SHEET

Screen Chute, Rear

1шт.

39

291266A1

SUPPORT

1шт.

40

195082A3

SHEET

1шт.

41

195085A3

GUIDE

1шт.

42

195090A2

SHEET

1шт.

43

220743A1

SEAL

RUBBER SEAL 865 mm (34 in.), Cut from F43996

2шт.

44

291263A1

COVER

1шт.

45

291264A1

LARGE PLATE

PLATE, LARGE

1шт.

46

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

48

259983A2

SUPPORT

1шт.

49

229626A1

CYLINDER

19 ID x 200 mm strk

1шт.

50

1340345C1

BALL STUD

BALL PIN

2шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

52

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.
