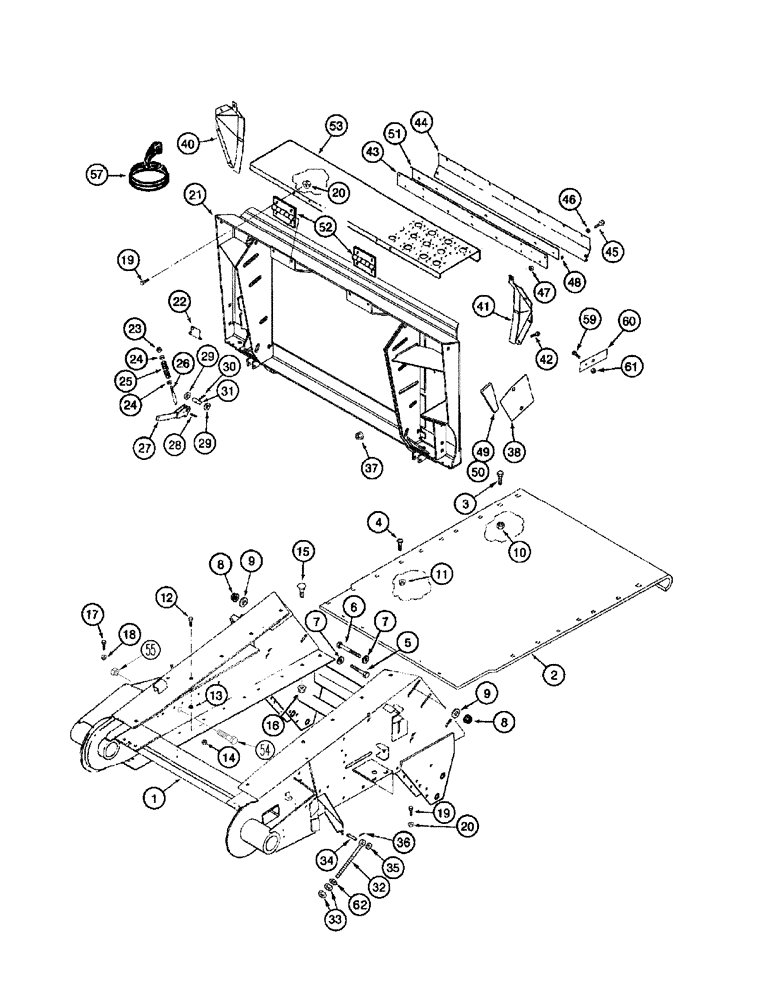

Запчасти Case IH 2366 (09A-19) - FEEDER - HOUSING AND ADAPTER - ASN JJC0254000 (13) - FEEDER

1

400718A2

FEEDER

Includes Decal, See Figure 09H-21, Ref. 2, 9

1шт.

With 60 Inch Feeder

1шт.

1

400717A2

FEEDER

Includes Decal, See Figure 09H-21, Ref. 2, 9

1шт.

With 54-1/2 Inch Feeder

1шт.

1a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in), Not Illustrated

1шт.

2

118845A1

BOTTOM

Perforated

1шт.

With 60 Inch Feeder

1шт.

2

1994217C2

SHEET

Not Perforated

1шт.

With 60 Inch Feeder

1шт.

2

1324578C2

PLATE

1шт.

With 54-1/2 Inch Feeder

1шт.

2

1313970C1

PANEL

Perforated

1шт.

With 54-1/2 Inch Feeder

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4; 8

4шт.

5

416-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4; 8

2шт.

6

416-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4; 8

4шт.

7

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

6шт.

8

400025A1

FLANGE NUT

5/8; 8

6шт.

9

145678C3

WASHER

17 mm

6шт.

10

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

4шт.

11

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8-10шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

4шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

3шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

241769A3

ADAPTER

1шт.

22

1338021C1

PIN,7.94mm OD

2шт.

23

231-1445

NUT,5/16"-18, GB

2шт.

24

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

25

367833R1

SPRING

2шт.

26

177138C1

ROD

2шт.

27

179024C1

HINGE

2шт.

28

38-1816

LOCK PIN,1/8" x 1", Slotted

1/8" x 1", Slotted

2шт.

29

495-81175

WASHER,21/32" x 1" x .120"

21/32 x 1 x 7/64

4шт.

30

38-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

31

177141C1

PIN,15.88mm OD x 41mm L

2шт.

32

1321735C3

EYEBOLT

BOLT, EYE

2шт.

33

329-108

NUT,1/2"-13, G8

4шт.

34

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

1/2 x 2-1/4

2шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

36

432-1216

COTTER PIN,3/16" x 1"

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

38

1327737C2

PLATE

2шт.

40

184853C1

DEFLECTOR

Left Hand

1шт.

41

184854C1

DEFLECTOR

Right Hand

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

43

1319474C1

BAND

1шт.

44

1319479C1

COVER

1шт.

45

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

5шт.

46

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

7шт.

47

231-4115

NUT,5/16"-18, GB

5шт.

47

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

7шт.

48

1321640C1

GROMMET

2шт.

49

1327752C1

FOAM INSULATION

Left Hand

1шт.

50

1327753C1

FOAM INSULATION

Right Hand

1шт.

51

109253A1

LARGE PLATE

PLATE, LARGE Cut From 1330108CX

1шт.

52

140767A2

HINGE

2шт.

53

140768A4

STEP

1шт.

54

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

2шт.

55

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

57

87029779

SEAL

292 mm (11-1/2 in.), Cut From 1330108CX

2шт.

59

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

3/8 x 1/2

4шт.

60

249827A1

COVER

4шт.

61

425-106

NUT,3/8"-16, Cl 5

4шт.

62

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

2шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

8-10шт.
