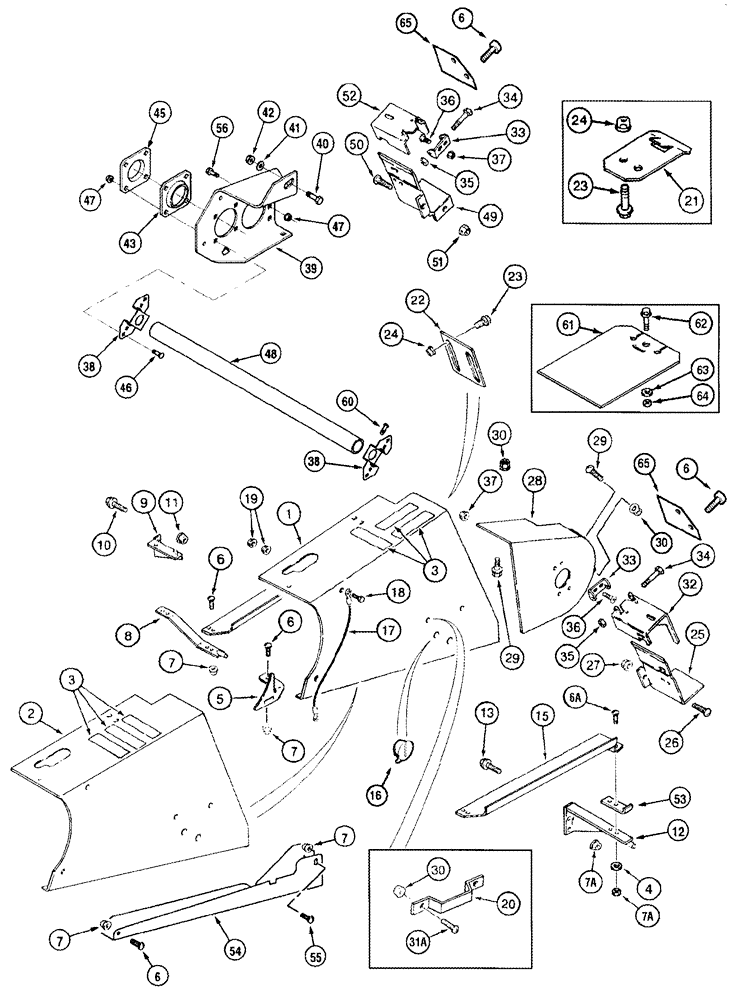

Запчасти Case IH 2366 (09A-16) - FEEDER - SHIELDS, JACKSHAFT DRIVE - BSN JJC0253999 (13) - FEEDER

1

235863A2

GUARD

Rear, Inc. 3, Also Includes Decal, See Figure 09H-21, Ref. 4

1шт.

With 60 Inch Feeder

1шт.

2

235862A2

GUARD

Rear, Inc. 3, Also Includes Decal, See Figure 09H-21, Ref. 4

1шт.

With 54-1/2 Inch Feeder

1шт.

3

D55216

PAD,2" x 9"

2 x 9 in.

3шт.

4

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

5

186675A2

GUARD

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

6a

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7a

231-5345

FLANGE NUT,Flg, 5/16"-18

3шт.

8

1321851C2

SUPPORT

Lower Rear

1шт.

9

1327779C1

SUPPORT

Upper Rear

1шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

11

231-5146

FLANGE NUT,3/8"-16

3шт.

12

1321853C2

SUPPORT

Lower Front

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

139079A2

SUPPORT

Rear, If Used

1шт.

16

138699A1

LOCK

1шт.

17

132657A2

CABLE

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

20

160638C2

HANDLE

1шт.

With 60 Inch Feeder

1шт.

21

138179A3

LATCH

2шт.

Australia Only

1шт.

22

139108A1

PLATE

1шт.

23

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

25

129901A2

GUARD

Right Hand Rear

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

129707A4

SHIELD

Front

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

31

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

31a

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

32

129714A2

GUARD

Right Hand Front

1шт.

33

1345199C2

SUPPORT

2шт.

34

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

1/4 x 4-1/2

2шт.

35

231-4144

NUT,1/4"-20, GB

2шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

240436A2

SUPPORT

2шт.

39

239240A2

SUPPORT

Left Hand

1шт.

39a

100291A2

SUPPORT

Left Hand, Not Illustrated

1шт.

With Field Tracker

1шт.

40

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

41

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

1шт.

42

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

With Field Tracker

1шт.

43

241578A1

FLANGE

1шт.

Without Overhead Circuit Breaker Panel

1шт.

45

241577A1

FLANGE

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

47

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

48

240438A2

PLASTIC-RUBBER TUBE,60.3 mm OD

1шт.

49

129903A2

GUARD

Left Hand Rear

1шт.

50

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

51

231-5146

FLANGE NUT,3/8"-16

2шт.

52

129717A1

GUARD

Left Hand Front

1шт.

53

235885A1

SUPPORT

2шт.

54

235873A1

SHIELD

Lower

1шт.

With 54-1/2 Inch Feeder

1шт.

54

235874A1

SHIELD

Lower

1шт.

With 60 Inch Feeder

1шт.

55

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

56

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

3шт.

60

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No. 8-18 x 1

2шт.

61

138180A1

COVER

1шт.

Australia Only

1шт.

62

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

Australia Only

1шт.

63

495-21044

WASHER,3/8"

2шт.

Australia Only

1шт.

64

231-4116

NUT,3/8"-16, GB

2шт.

Australia Only

1шт.

65

138629A1

COVER

2шт.

Australia Only

1шт.

66

248406A1

GUARD

Rubber, Not Illustrated

1шт.

67

252441A1

SEAL RETAINER

Not Illustrated

1шт.
