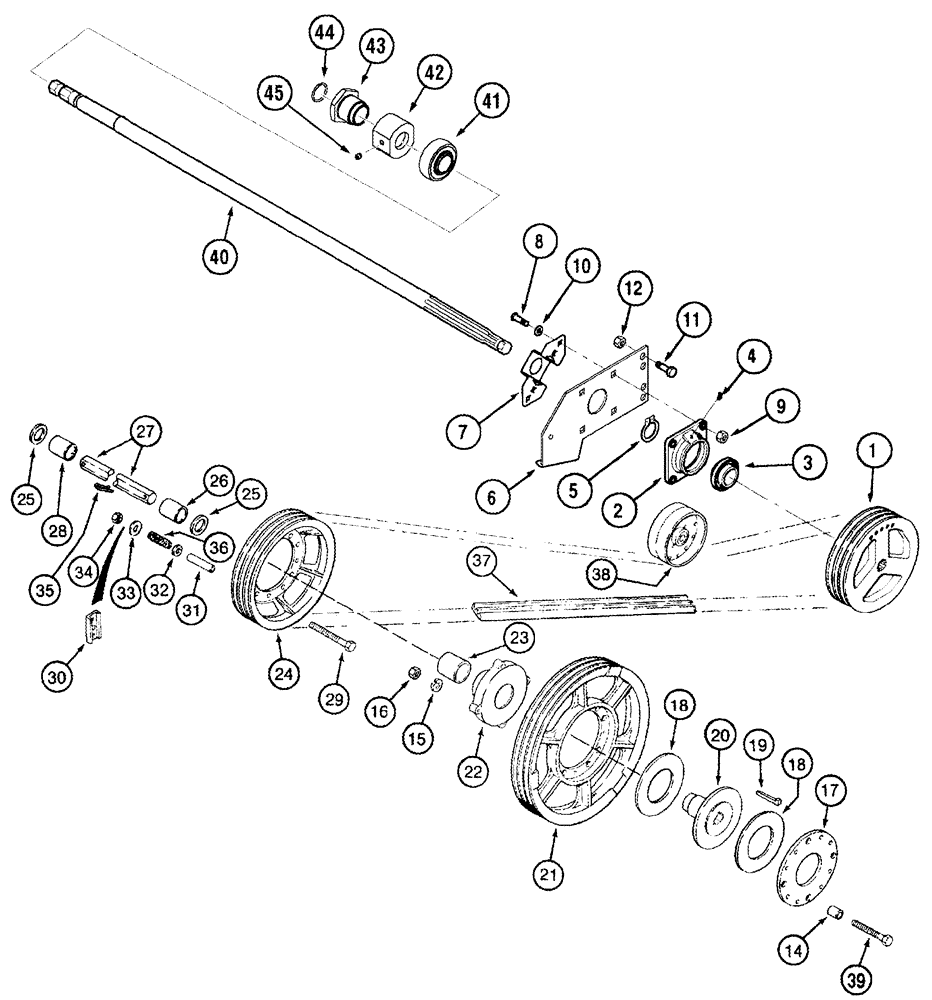

Запчасти Case IH 2366 (09A-12) - FEEDER - JACKSHAFT DRIVE - BSN JJC0253999 (13) - FEEDER

241930A1

PULLEY

Inc. 1 - 5

1шт.

1

238967A2

PULLEY,335.5mm OD

1шт.

241929A2

BEARING ASSY

Inc. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

65 deg., 1/8 PT x 7/8

1шт.

5

100-11200

SNAP RING,#200, Ext

1шт.

6

239239A2

SUPPORT

RH

1шт.

6b

100290A1

SUPPORT

Right Hand, Not Illustrated

1шт.

With Field Tracker

1шт.

7

240436A2

SUPPORT

1шт.

8

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4

4шт.

9

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

4шт.

10

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

14

1305375C1

SPACER

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

329-106

NUT,3/8"-16, G8

4шт.

17

185955C1

PLATE

1шт.

18

181579C1

DISC

2шт.

19

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

20

1305154C2

HUB

1шт.

21

1305297C1

PULLEY

Driven, 22-9/16 OD, See Figure 09A-10

1шт.

22

1305220C91

HUB ASSY.

Inc. 23

1шт.

23

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

1шт.

24

1305288C1

PULLEY

Drive, 16-11/16 OD

1шт.

25

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1-3/4 x 2-1/2 x 1/8

1шт.

26

584608R1

SPACER

86 mm (3-3/8 in.)

1шт.

27

1320160C3

SHAFT

Conveyor, See Figure 09A-22

1шт.

28

1305393C1

SPACER

Left Hand, 2-35/64

1шт.

29

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

3/8 x 6; 8

8шт.

30

1315316C1

SUPPORT

2шт.

With Rock Trap

1шт.

31

1305370C3

SPACER

8шт.

32

495-81129

WASHER,13/32" x 3/4" x .120"

13/32 x 3/4 x 7/64

8шт.

33

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

34

231-4116

NUT,3/8"-16, GB

3/8

8шт.

35

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

1шт.

36

1305692C2

SPRING

Models With Rock Trap

8-10шт.

37

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

1шт.

With 54-1/2 Inch Feeder

1шт.

37

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

1шт.

With 60 Inch Feeder

1шт.

38

176579C1

IDLER

Drive Tightener, 8 in. OD, See Figure(s) 09A-13 - 09A-15

1шт.

39

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

253531A1

SHAFT

Inc. 40 - 45

1шт.

40

239235A3

SHAFT

1шт.

41

240746A1

BALL BEARING,34.93mm ID x 80mm OD x 22mm W

1шт.

42

253469A1

COLLAR,35.25mm ID x 63.5mm OD x 46mm L

1шт.

43

253533A1

HUB,1-15/16" - 20

1шт.

44

253462A1

SPECIAL RING

1шт.

45

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

3/8 x 3/8 NF

1шт.
