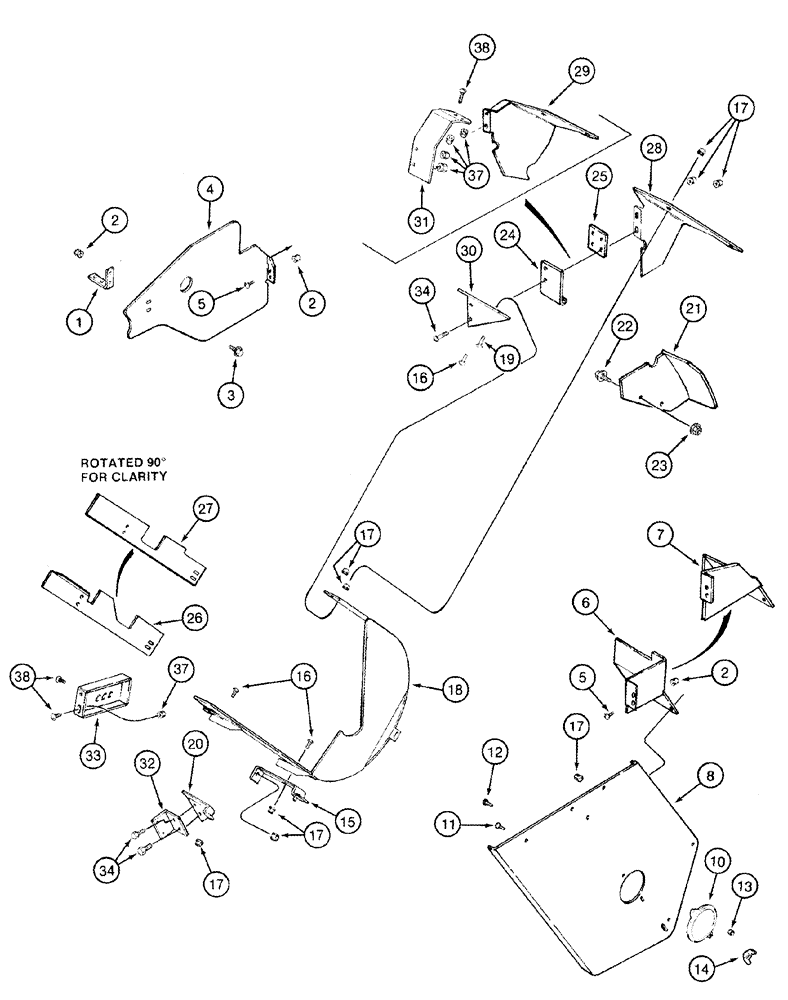

Запчасти Case IH 2366 (09A-11) - FEEDER - SHIELDS, DRIVE (13) - FEEDER

1

186081C1

ANGLE

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

4

135755A3

SUPPORT

1шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

6

175070A3

SHIELD

1шт.

Without Rock Trap

1шт.

7

183584A1

GUARD

1шт.

With Rock Trap

1шт.

8

192124C6

COVER

1шт.

10

188315C1

DOOR

1шт.

11

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

1шт.

12

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

13

231-1444

NUT,1/4"-20, GB

1шт.

14

129-409

WING NUT,1/4"-20

1шт.

15

135602A1

SUPPORT

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

12шт.

17

231-5146

FLANGE NUT,3/8"-16

18шт.

18

194380C4

HOUSING

1шт.

19

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

3шт.

20

188045C2

SUPPORT ASSY.

1шт.

21

185334A2

SHIELD

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

24

194364C2

HINGE

1шт.

25

182804A1

LARGE PLATE

PLATE, LARGE

1шт.

26

132970A4

SHIELD

1шт.

Without Rock Trap

1шт.

27

132968A4

SHIELD

1шт.

With Rock Trap

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

28

132971A4

COVER

1шт.

Without Rock Trap

1шт.

29

132969A3

COVER

1шт.

With Rock Trap

1шт.

30

192131C5

SUPPORT

1шт.

Without Rock Trap

1шт.

31

1989332C5

SUPPORT

1шт.

With Rock Trap

1шт.

32

1315075C1

ANGLE

1шт.

With Rock Trap

1шт.

33

1315083C1

SUPPORT

1шт.

With Rock Trap

1шт.

37

231-5146

FLANGE NUT,3/8"-16

6шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

5шт.

39

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Not Illustrated

1шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
