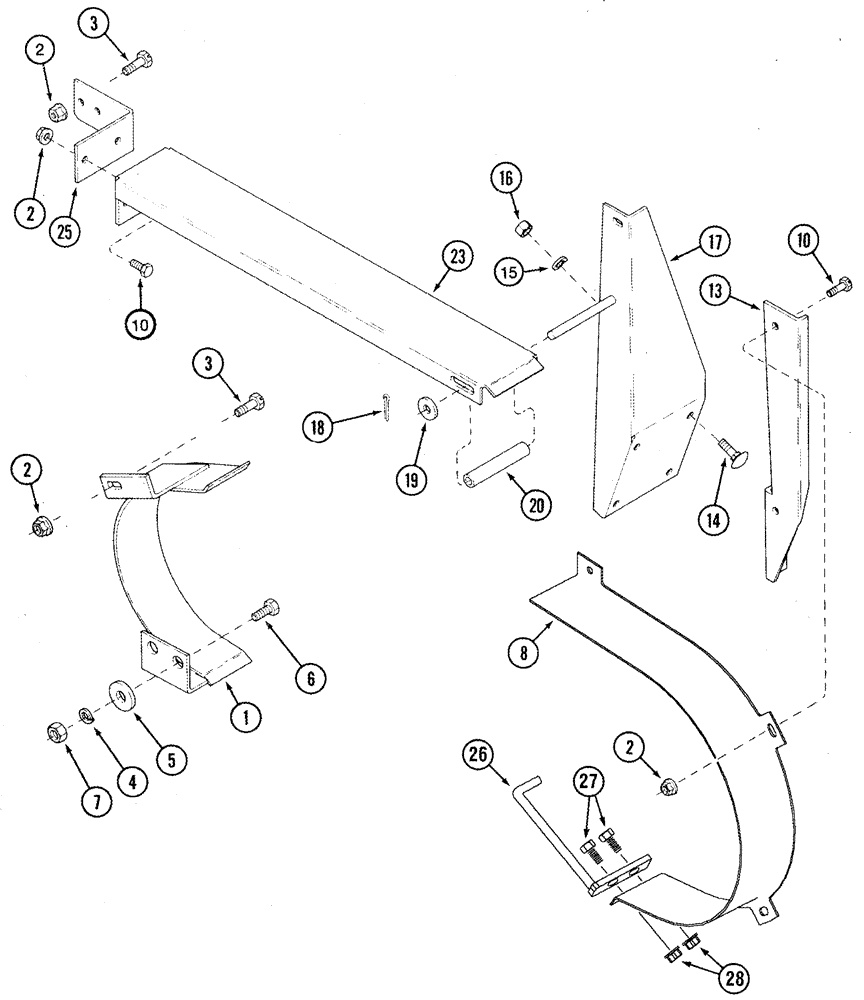

Запчасти Case IH 2366 (09A-05) - SEPARATOR - SHIELD, DRIVE (13) - FEEDER

1

430384A1

SHIELD

Drive Pulley

1шт.

2

231-5146

FLANGE NUT,3/8"-16

9шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

191952C5

GUARD

Driven Pulley

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

6шт.

13

181168C1

SUPPORT

1шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

5шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

16

425-108

NUT,1/2" - 13, Gr 5

5шт.

17

181169C1

SUPPORT ASSY.

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

20

188440C1

HOSE

115 mm (4-5/8 in.), Cut From 526602R1

1шт.

23

191961C2

SUPPORT

1шт.

25

193686C1

ANGLE

1шт.

26

293817A1

GUIDE

1шт.

27

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

28

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3шт.
