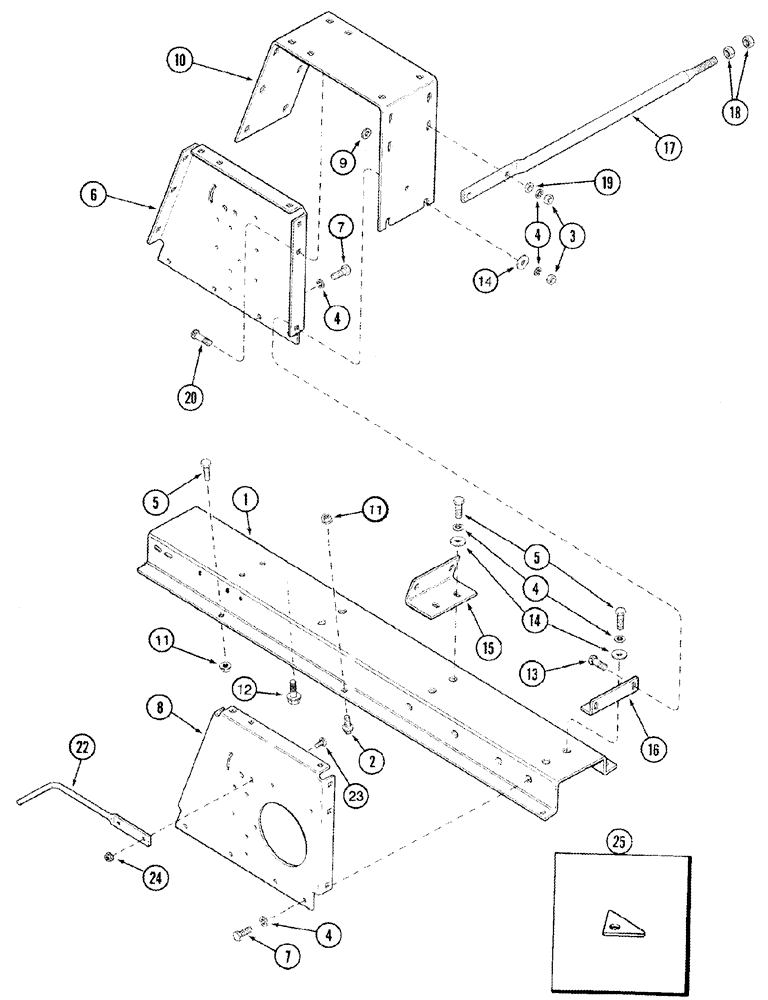

Запчасти Case IH 2366 (09A-04) - SEPARATOR - JACKSHAFT SUPPORT (13) - FEEDER

1

123837A2

SUPPORT

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

7шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

19шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

6

181165C1

SUPPORT ASSY.

Left Hand

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

8

181166C1

SUPPORT

Right Hand

1шт.

9

495-81162

WASHER,17/32" x 1 1/2" x .179"

17/32 x 1-1/2 x 11/64

1шт.

10

181167C1

SUPPORT

Manifold Bulkhead Fitting

1шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

12

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

1шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

5шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

17/32 x 1-1/4 x 7/64

9шт.

15

181164C1

SUPPORT

1шт.

16

181172C1

SUPPORT

Rear

1шт.

17

181171C1

ROD

1шт.

18

425-1110

NUT,5/8"-18, G5

2шт.

19

495-81017

WASHER,13.49mm ID x 19.05mm OD x 3.4mm Thk

17/32 x 3/4 x 1/8

2шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

2шт.

22

194901C1

ROD

1шт.

23

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

1345342C1

BAND

2шт.
