Запчасти Case IH 2366 (02-05[06]) - PLASTIC ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES - ASN JJC0256400 (01) - ENGINE

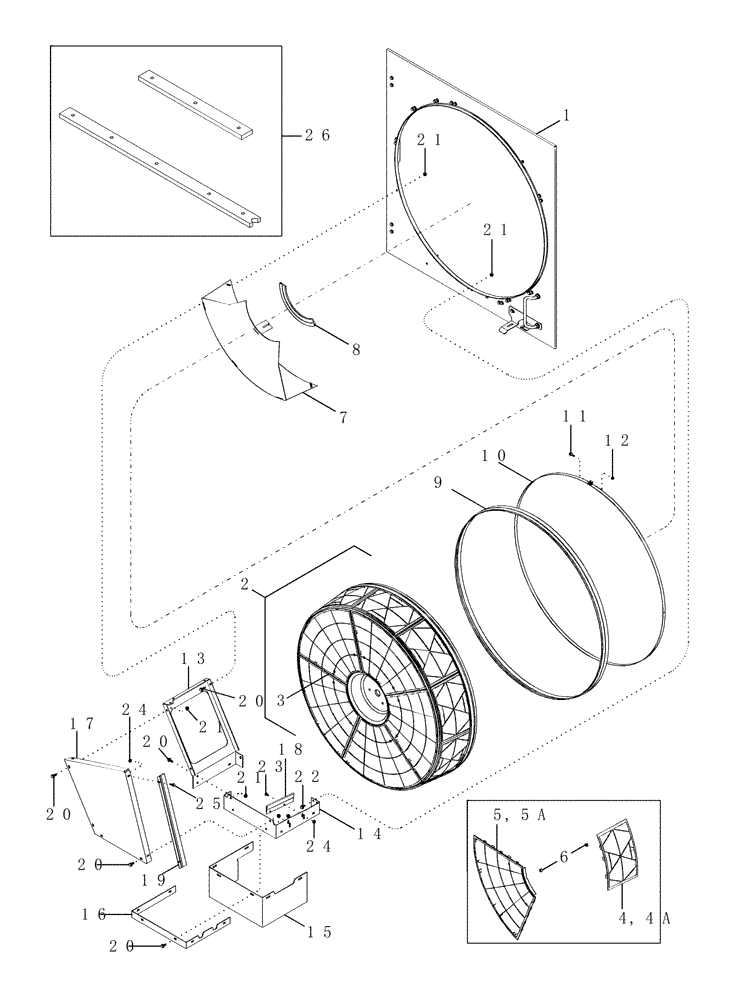

Схема запчастей Case IH 2366 - (02-05[06]) - PLASTIC ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES - ASN JJC0256400 (01) - ENGINE
15
19
2
16
22
26
3
20
21
10
17
1
18
9
8
21
6
20
21
4
13
20
24
7
24
20
21
12
5
25
23
14
20
11

Артикул

Название

Примечание

Количество

1

87430947

DOOR

Cooler Access, See Figure 02-05 (02)

1шт.

2

87409302

SCREEN

Assy Rotary Air, Plastic Coarse Mesh, Inc. 3, 4A, 5A, 6

1шт.

3

87410086

SUPPORT

Frame Assy

1шт.

86988941

KIT

Rotary Air Screen Side, Coarse Mesh, Inc. 4A (1), 6 (10)

1шт.

4

NSS

NOT SOLD SEPARAT

Screen, Side, Coarse Mesh

10шт.

86988942

KIT

Rotary Air Screen Front, Coarse Mesh, Inc. 5A (1), 6 (10)

1шт.

5

NSS

NOT SOLD SEPARAT

Screen, Front, Coarse Mesh

5шт.

6

86983638

CLIP

Screen Locking

145шт.

7

87409151

SHEET

Blockoff Assy

1шт.

8

87412677

BRUSH, COMMUTATOR

BRUSH Inner

1шт.

9

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

1шт.

10

86976658

CLAMP,1060mm

1шт.

11

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

12

231-1444

NUT,1/4"-20, GB

1шт.

13

87432971

CHUTE

Chute, Rear

1шт.

14

87432970

CHUTE

Chute, Front

1шт.

15

87432973

CHUTE

Chute, Lower

1шт.

16

87432972

STRAP

1шт.

17

87412289

PANEL

Chute, Upper

1шт.

18

414883A2

BRUSH

1шт.

19

87414124

BRUSH, COMMUTATOR

BRUSH Angled

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

23

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(5)

4шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4; 5

2шт.

26

87301188

KIT

Disrupter Bars, Hardware and Instructions

1шт.

87301156

CONVERSION KIT

Plastic to Metal Rotary Air Screen Conversion

1шт.

Выбрано товаров: 29
