Запчасти Case IH 2366 (09H-24) - DECALS - CAB (12) - CHASSIS

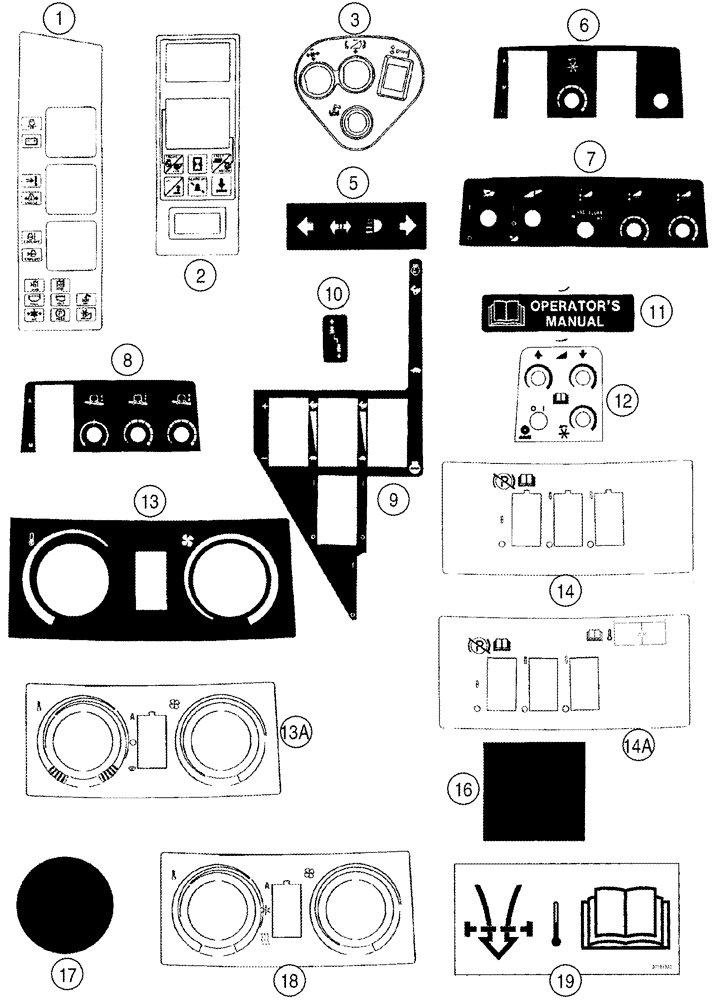

Схема запчастей Case IH 2366 - (09H-24) - DECALS - CAB (12) - CHASSIS
9
13a
3
19
11
5
8
6
1
13
17
18
14
7
16
10
12
2
14a

Артикул

Название

Примечание

Количество

1

238210A1

DECAL

Instrument Panel

1шт.

2

123716A1

DECAL

Instrument Panel

1шт.

3

144109A2

DECAL

Propulsion Control

1шт.

5

120332A1

DECAL

Directional Arrows, Steering Console

1шт.

280659A1

PACKAGE

Right Hand Console, Inc. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL Reel Speed, Right Hand Console

1шт.

7

NSS

NOT SOLD SEPARAT

DECAL Separator, Right Hand Console

1шт.

8

NSS

NOT SOLD SEPARAT

DECAL Field Tracker, Right Hand Console

1шт.

9

NSS

NOT SOLD SEPARAT

DECAL Concave, Right Hand Console

1шт.

10

NSS

NOT SOLD SEPARAT

DECAL Propulsion, Right Hand Console

1шт.

11

NSS

NOT SOLD SEPARAT

DECAL Operators Manual, Right Hand Console

1шт.

12

NSS

NOT SOLD SEPARAT

DECAL Remote Potentiometer, Right Hand Console

1шт.

13

139641A2

DECAL

Heating and Air Conditioning, Overhead, Serial Range: -JJC0252949

1шт.

13a

368873A2

DECAL

Heating and Air Conditioning, Overhead, Start Serial: JJC0252950

1шт.

14

279344A1

DECAL

Rocker Switch, Overhead, Serial Range: -JJC0252949

1шт.

14a

370892A1

DECAL

Rocker Switch, Overhead, Serial Range: JJC0252950-JJC0253999

1шт.

14a

392895A1

DECAL

Rocker Switch, Overhead, Start Serial: JJC0254000

1шт.

16

224636A1

DECAL

Connector Cover, Cab Exterior

1шт.

17

282855A1

DECAL

Connector Cover

1шт.

18

259832A2

DECAL

Automatic Temperature, Overhead

1шт.

19

371078A1

DECAL

Do Not Block Filter

1шт.

Выбрано товаров: 21
