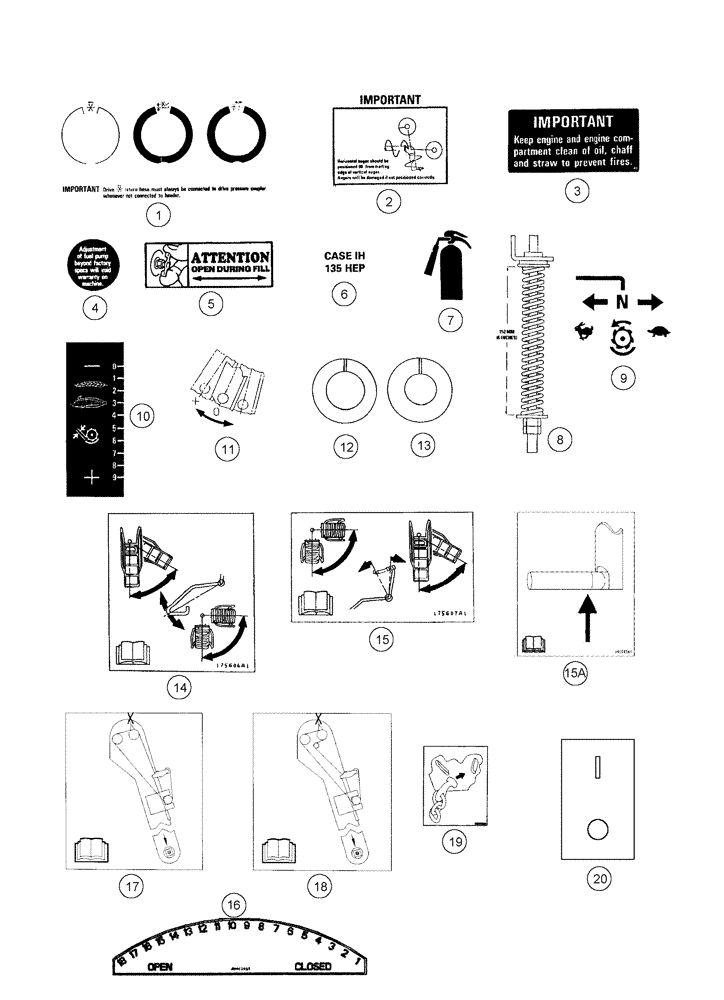

Запчасти Case IH 2366 (09H-23) - DECALS - IMPORTANT INSTRUCTIONS (12) - CHASSIS

1

1989604C1

DECAL

Drive Return Instructions, English

1шт.

1

1989607C1

DECAL

Drive Return Instructions,French

1шт.

1

1989605C1

DECAL

Drive Return Instructions,Spanish

1шт.

1

278560A1

DECAL

Drive Return Instructions, Portuguese

1шт.

2

1989314C1

DECAL

Horizontal Auger Instructions, English

1шт.

2

1989648C1

DECAL

Horizontal Auger Instructions, French

1шт.

2

1989650C1

DECAL

Horizontal Auger Instructions, Spanish

1шт.

2

278561A1

DECAL

Horizontal Auger Instructions, Portuguese

1шт.

3

173881C1

DECAL

Keep Engine and Compartment Clean, English

1шт.

3

1300039C1

DECAL

Keep Engine and Compartment Clean, French

1шт.

3

1300395C1

DECAL

Keep Engine and Compartment Clean, Spanish

1шт.

3

278559A1

DECAL

Keep Engine and Compartment Clean, Portuguese

1шт.

4

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

4

184668A1

DECAL

Warranty, Fuel Pump, French

1шт.

4

184669A1

DECAL

Warranty, Fuel Pump, Spanish

1шт.

4

278583A1

DECAL

Warranty, Fuel Pump, Portuguese

1шт.

5

J910778

DECAL

Open During Fill

1шт.

6

144378A1

DECAL

135 HEP

3шт.

7

144483A1

DECAL

Fire Extinguisher

1шт.

8

144369A1

DECAL

Elevator Drive Adjustment

1шт.

9

144377A1

DECAL

Rotor Control

1шт.

10

1312068C1

DECAL

Concave Indicator

1шт.

11

175784A1

DECAL

Vane Position

1шт.

12

1345266C1

WASHER

White, See Figure(s) 08-21 & 08-22, For Reel Drive System

1шт.

13

1541792C1

WASHER

Red, See Figure 8-25, For Reel Fore and Aft System

1шт.

14

175606A1

DECAL

Lower Control, Operator Ladder

1шт.

15

175607A1

DECAL

Upper Control, Operator Ladder

1шт.

15a

349005A1

DECAL

Ladder Unlatch

1шт.

16

400620A1

DECAL

Sieve Adjustment

1шт.

17

239313A1

DECAL

Elevator Inclined Delivery, GPS/AFS

1шт.

18

239311A1

DECAL

Elevator Horizontal Delivery, GPS/AFS

1шт.

19

283528A1

DECAL

T-Hook

4шт.

20

405826A1

DECAL

T-Hook, Start Serial: JJC0254000

1шт.

426155A1

KIT

Sieve Lighting / Viewing Door, Inc. 20, See Figure(s) 04-16, 09H-02, 09H-22 (01)

1шт.

Use to retrofit machines built prior to P.I.N. JJC0252949.

1шт.
