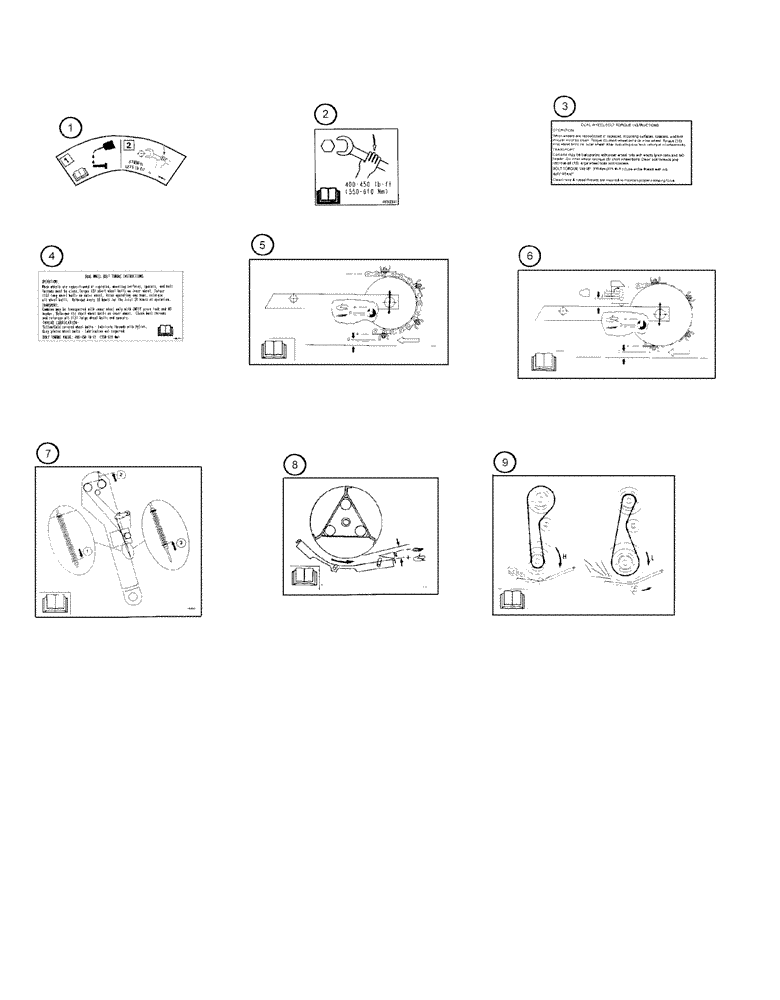

Запчасти Case IH 2366 (09H-22[02]) - DECALS - INFORMATION DECALS WITH READ OP MANUAL SYMBOL (12) - CHASSIS
![Схема запчастей Case IH 2366 - (09H-22[02]) - DECALS - INFORMATION DECALS WITH READ OP MANUAL SYMBOL (12) - CHASSIS](https://partsell.ru/storage/images/caseih/1145923.png)
6
8
2
5
7
9
1
4
3
№
Артикул
Название
Примечание
Количество
1
135780A2
DECAL
Bolt Torque, Single Drive Wheel, Serial Range: -JJC0254999
2шт.
2
403425A1
DECAL
Bolt Torque, Single Drive Wheel, Start Serial: JJC0255000
2шт.
3
135786A2
DECAL
Bolt Torque, Dual Wheel, Serial Range: -JJC0254999
2шт.
4
448670A1
DECAL
Bolt Torque, Dual Wheel, Start Serial: JJC0255000
2шт.
5
175782A1
DECAL
Feeder Drum Adjuster
1шт.
Without Stone Retarder
1шт.
6
175783A1
DECAL
Feeder Drum Adjuster
1шт.
With Stone Retarder
1шт.
7
175168A1
DECAL
Inclined, Delivery Auger Elevator
1шт.
8
175786A1
DECAL
Beater Bottom Adjuster
1шт.
9
175788A1
DECAL
Straw Chopper Drive
1шт.
10
175168A1
DECAL
Inclined Delivery Auger Elevator
1шт.
Выбрано товаров: 12
