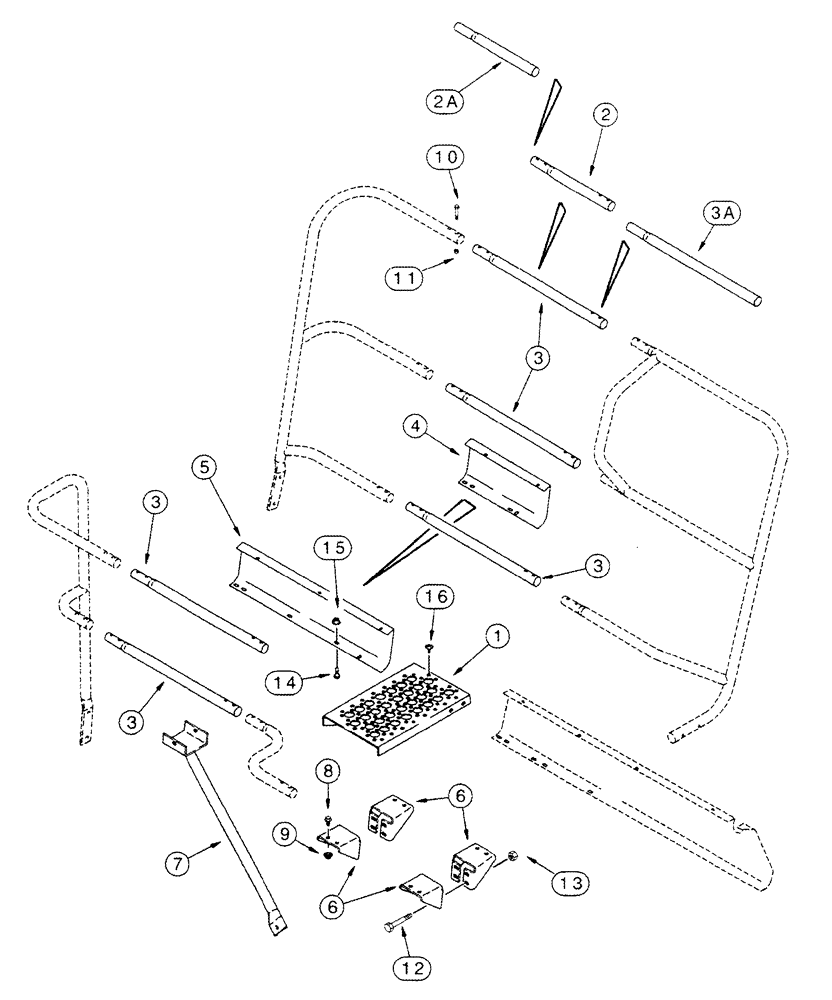

Запчасти Case IH 2366 (09H-18) - PLATFORM, OPERATORS - EXTENSION (12) - CHASSIS

1

124315A1

STEP

10 Inch Extension

1-2шт.

2

141588A1

HANDRAIL

12-3/4, For 10 Inch Extension

4шт.

2a

195625A1

HANDRAIL

12-3/4, Upper, For 10 Inch Extension

1шт.

3

141589A1

HANDRAIL

22-3/4, For 20 Inch Extension

4шт.

3a

195627A1

HANDRAIL

22-3/4, Upper, For 20 Inch Extension

1шт.

4

127719A2

SHIELD

For 10 Inch Extension

1шт.

5

127720A2

SHIELD

For 20 Inch Extension

1шт.

6

143819A1

SUPPORT

2-4шт.

7

144182A1

SUPPORT

1шт.

8

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

9

231-5146

FLANGE NUT,3/8"-16

8шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

11

231-1445

NUT,5/16"-18, GB

4шт.

12

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

16

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

4шт.
