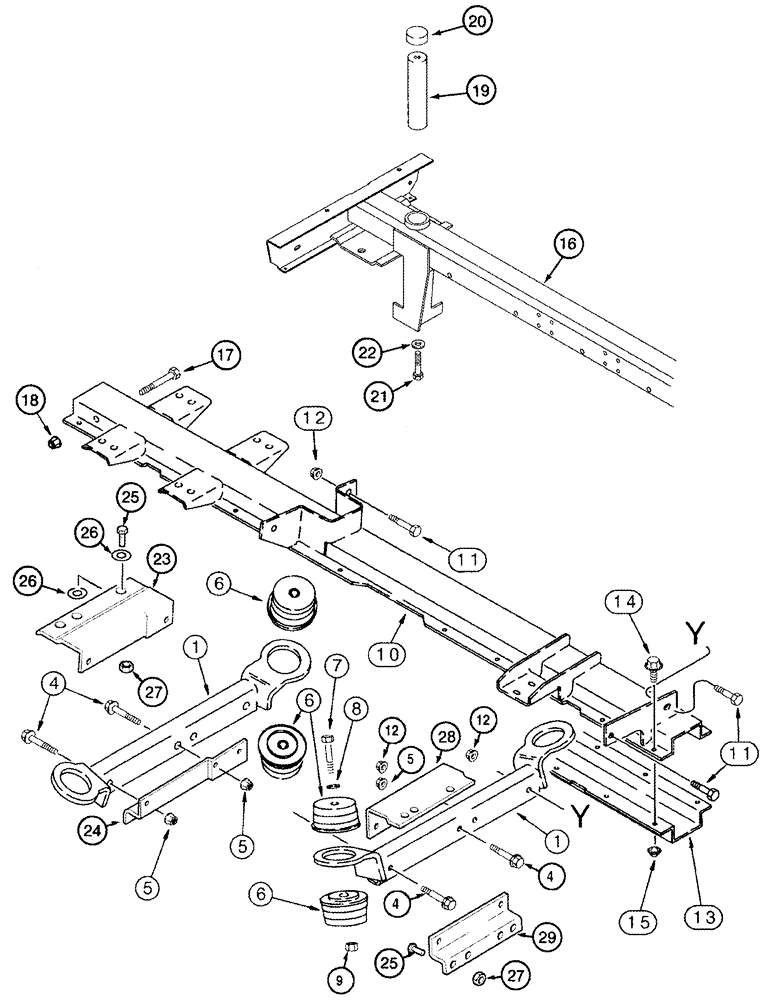

Запчасти Case IH 2366 (09H-17) - PLATFORM SUPPORT - LADDER PIVOT - ASN JJC0252304 (12) - CHASSIS

1

112052A1

SUPPORT

2шт.

4

854-12100

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

5

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6; 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

143520A2

SUPPORT

Left Hand

1шт.

11

854-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

M12 x 80; 10.9

3шт.

12

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

3шт.

13

182648A1

SUPPORT

Left Hand

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

23шт.

324547A1

BEAM

Inc. 16, 16A

1шт.

16

NSS

NOT SOLD SEPARAT

BEAM Left Hand

1шт.

16a

191129A1

WARNING DECAL

See Figure 09H-17, Not Illustrated

1шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5

1шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

19

320946A1

PIN,50.81mm OD x 311.2mm L

1шт.

20

324464A1

PLUG

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

23

235731A1

SUPPORT

Left Hand, Upper

1шт.

24

235732A2

SUPPORT

Left Hand, Lower

1шт.

25

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

25

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

7шт.

25

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

7шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

20шт.

27

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

14шт.

28

235723A1

SUPPORT

Right Hand, Upper

1шт.

29

235620A2

SUPPORT

Right Hand, Lower

1шт.
