Запчасти Case IH 2366 (09H-16) - PLATFORM SUPPORT - LADDER PIVOT - BSN JJC0252303 (12) - CHASSIS

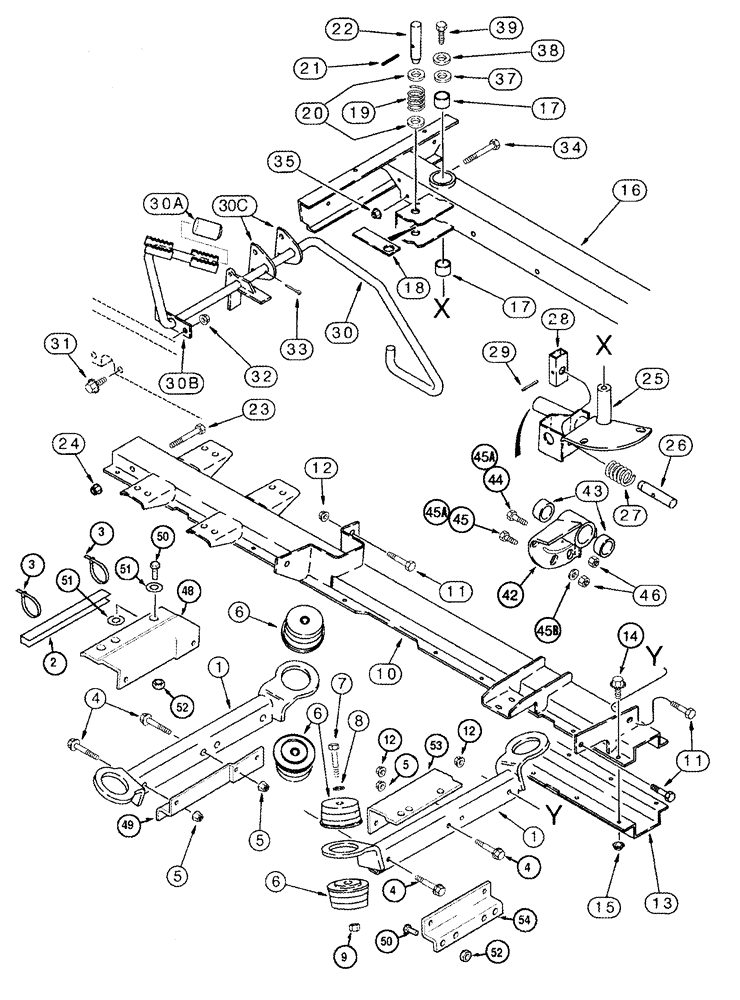

Схема запчастей Case IH 2366 - (09H-16) - PLATFORM SUPPORT - LADDER PIVOT - BSN JJC0252303 (12) - CHASSIS
30a
43
2
45r
9
50
24
14
52
30b
48
7
15
19
6
16
39
12
8
45
45a
4
12
29
31
22
12
38
23
13
5
21
42
53
54
17
11
44
34
3
33
28
27
32
51
35
4
1
1
17
46
30
5
20
5
52
10
30c
26
4
51
49
25
37
18
3
6
50
11
6
45a

Артикул

Название

Примечание

Количество

1

112052A1

SUPPORT

2шт.

2

121574A1

SEAL PROTECTION

254 mm (10 in.), Cut From 1330108CX

1шт.

3

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in.)

2шт.

4

854-12100

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

Replaces 360-864

4шт.

5

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

Replaces 329-288

4шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6; 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

143520A2

SUPPORT

Left Hand

1шт.

11

854-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

M12 x 80; 10.9, Replaces 26-852

3шт.

12

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

Replaces 131-946

3шт.

13

182648A1

SUPPORT

Left Hand

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

23шт.

16

192351A1

BEAM

Left Hand, Inc. 17, Inc. Decal, See Figure 09H-21, Ref. 13

1шт.

17

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

18

126024A1

LEVER

1шт.

19

126162A1

SPRING

1шт.

20

495-81275

WASHER,1.06" ID x 1.75" OD x 0.07" Thk

1-1/16 x 1-3/4 x 1/16

2шт.

21

438-11632

LOCK PIN,1/4" x 2", Slotted

1/4" x 2", Slotted

1шт.

22

126017A1

PIN,25.4mm OD x 127mm L

1шт.

23

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5

1шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

25

224572A1

SHAFT

1шт.

26

126014A1

SPLIT PIN/SAFETY PIN

1шт.

27

126162A1

SPRING

1шт.

28

142025A1

TUBE,100 mm Length

1шт.

29

438-11632

LOCK PIN,1/4" x 2", Slotted

1/4" x 2", Slotted

1шт.

30

113132A4

LEVER

Inc. 30A

1шт.

30a

226172A1

PLUG

1шт.

30b

141922A2

PLATE

Outer

2шт.

30c

143458A1

PLATE

Inner

2шт.

31

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

34

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

37

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

38

142054A1

THRUST WASHER

1шт.

39

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

1шт.

42

142380A2

PIVOT

Inc. 43

1шт.

43

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

44

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

1шт.

Used with 18.4R 42R1 Dual Tires Only

1шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

Used with 18.4R 42R1 Dual Tires Only

1шт.

45a

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

2шт.

45b

496-41034

WASHER,.344" x 1" x .098", HDN

1шт.

46

231-1445

NUT,5/16"-18, GB

2шт.

48

235731A1

SUPPORT

Left Hand, Upper

1шт.

49

235732A2

SUPPORT

Left Hand, Lower

1шт.

50

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Replaces 627-12040

14шт.

51

496-21053

WASHER,17/32" x 1 1/16" x .134"

20шт.

52

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

14шт.

53

235723A1

SUPPORT

Right Hand, Upper

1шт.

54

235620A2

SUPPORT

Right Hand, Lower

1шт.
